Specification:

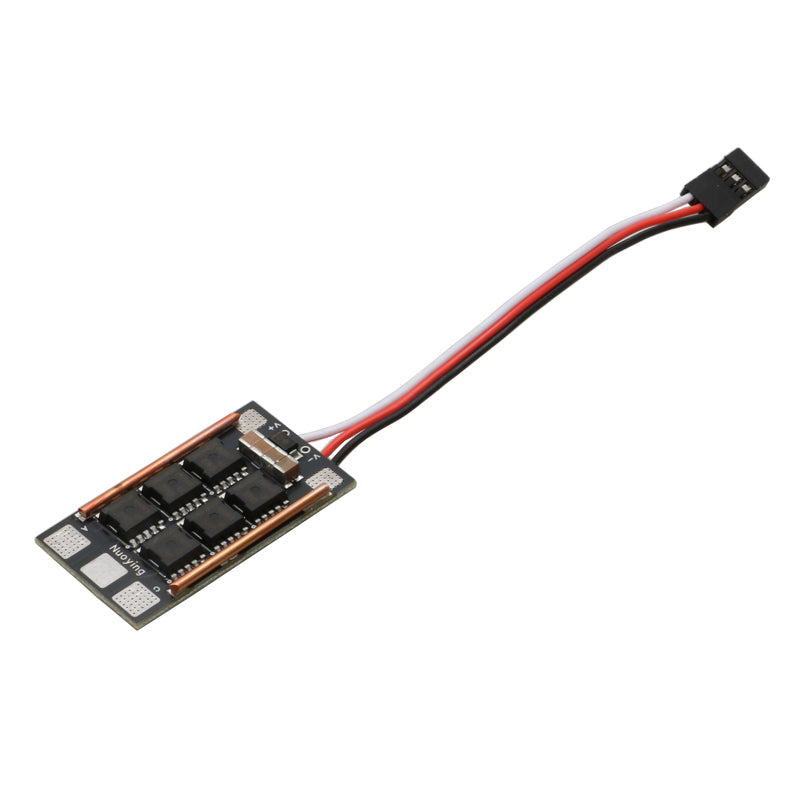

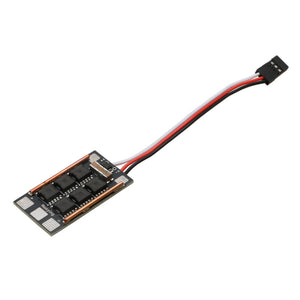

- Item name: AM32 ESC
- Voltage: supports 2-7S
- Current: 80A
- Built-in BEC: 5/7.4V 4A

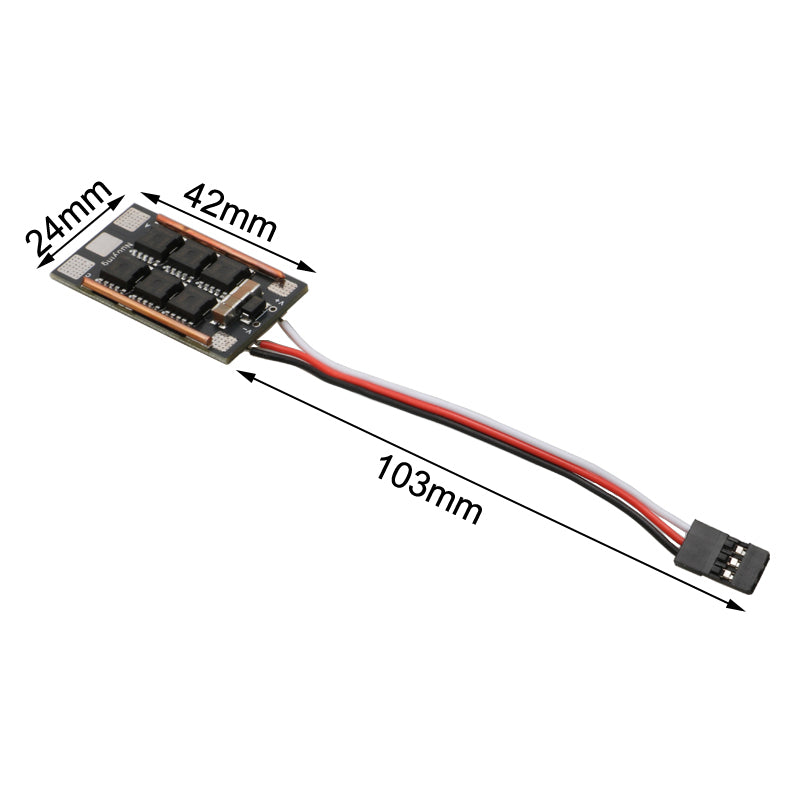

- PCB size: 24x42mm
- Cable length: about 103mm
Features:
- Can be used for mosquito cars, climbing, fixed wing, hand throwers, and turbofan, etc., 10 cars, flatbed, off-road, X-class, etc.
- Low internal resistance large MOS tube, with super strong heat dissipation and overcurrent capability, official data shows overcurrent of 200A.
- Four 50v100uf surface mount capacitors totaling 400uf. Normal use can choose no external capacitor. Equipped with TVS anti surge diode for greater stability.
- The Am32 firmware supports sine wave startup and is suitable for climbing at low speeds and high torques.

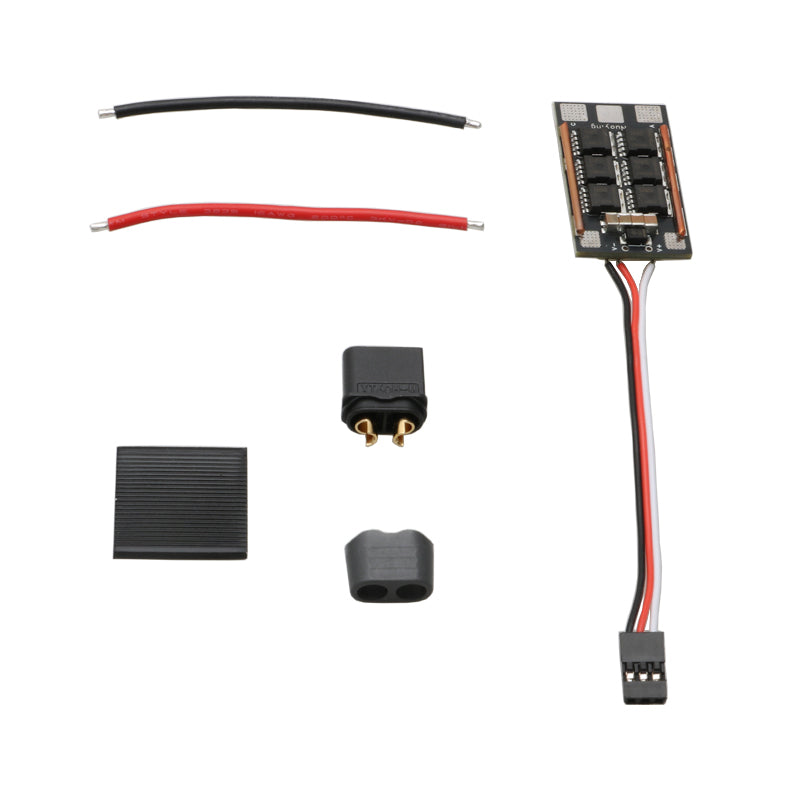

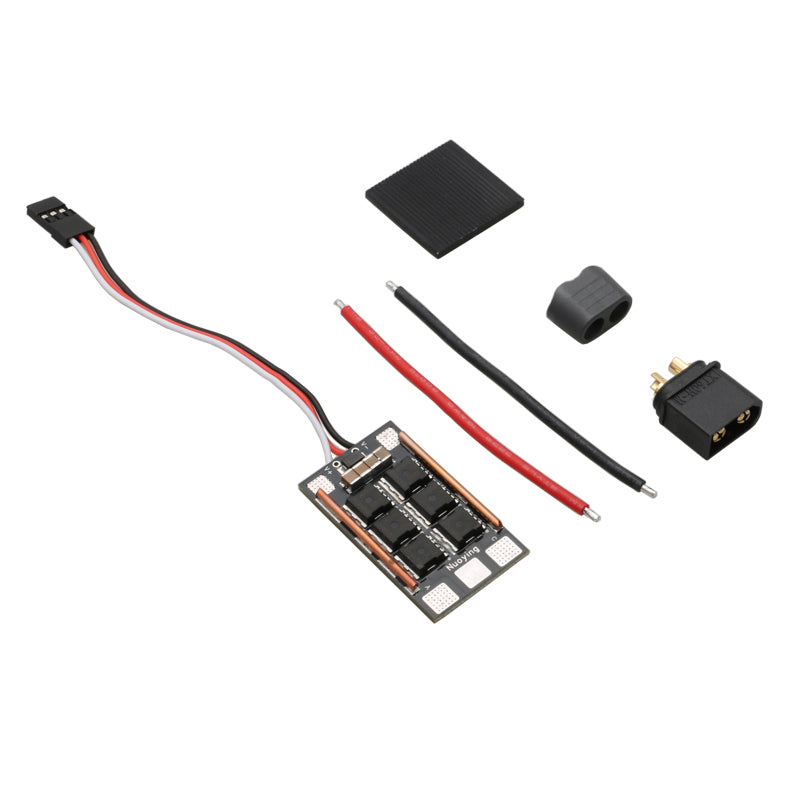

- Full set accessories: Heat sink, Amass XT60 connector, signal cable, silicone power cable.
2 types for your refer:
- with accessories
- only AM32 ESC
Note: size is manual measurement, there are exist errors
Package include:
1set x AM32 ESC with accessories
or
1pcs x AM32 ESC
