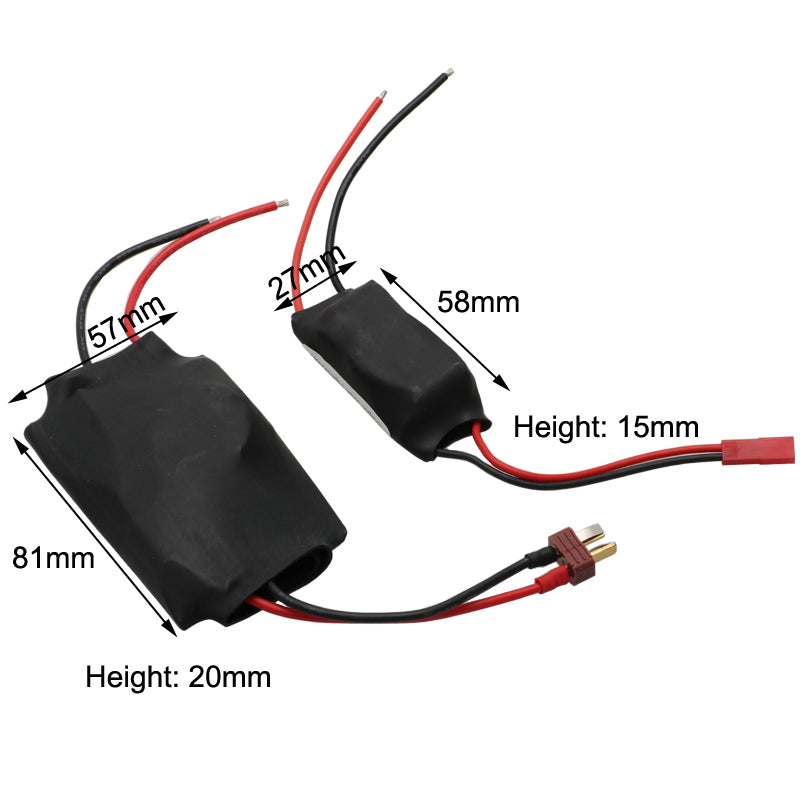

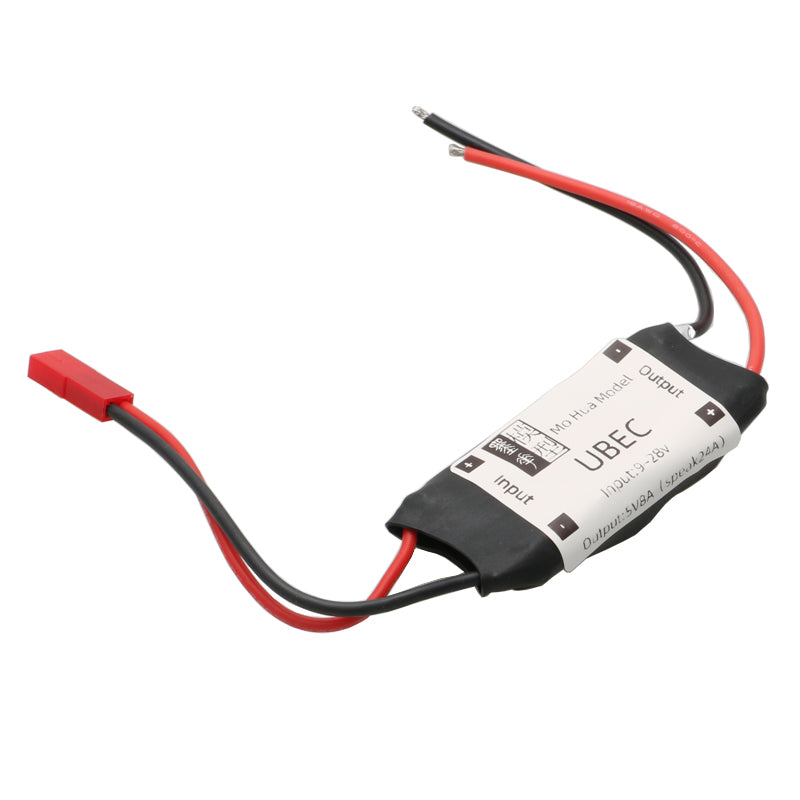

Specification for 5V8A UBEC:
- Input: 9-28V
- Output: 5V8A (speak 24A)
- Size: 58x27x15mm
- Weight: about 30.2g

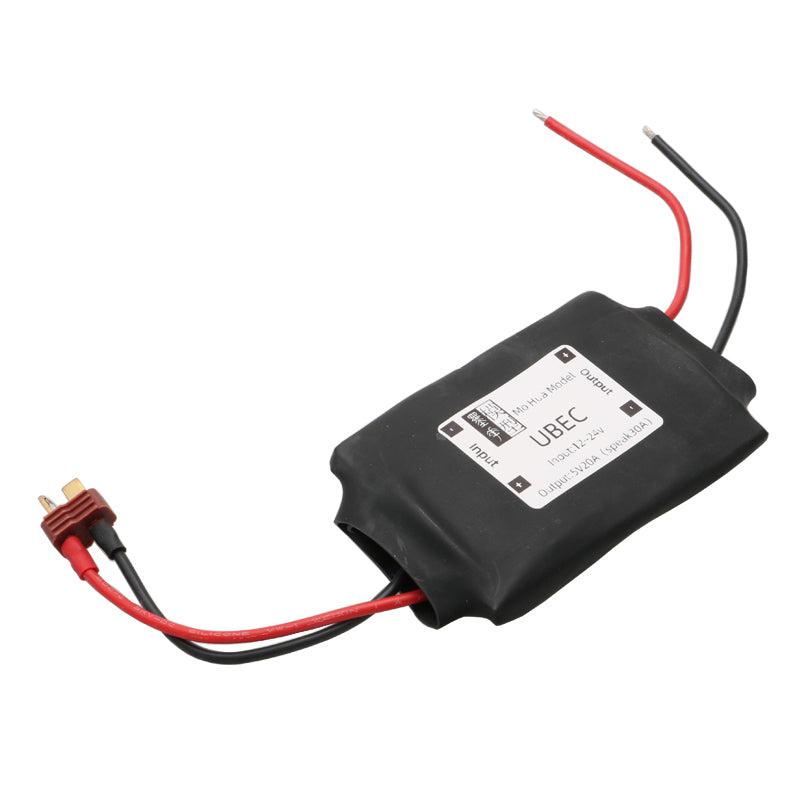

Specification for 5V20A UBEC:
- Input: 12-24V
- Output: 5V20A (speak 30A)
- Size: 81x57x20mm
- Weight: about 89g
Description:

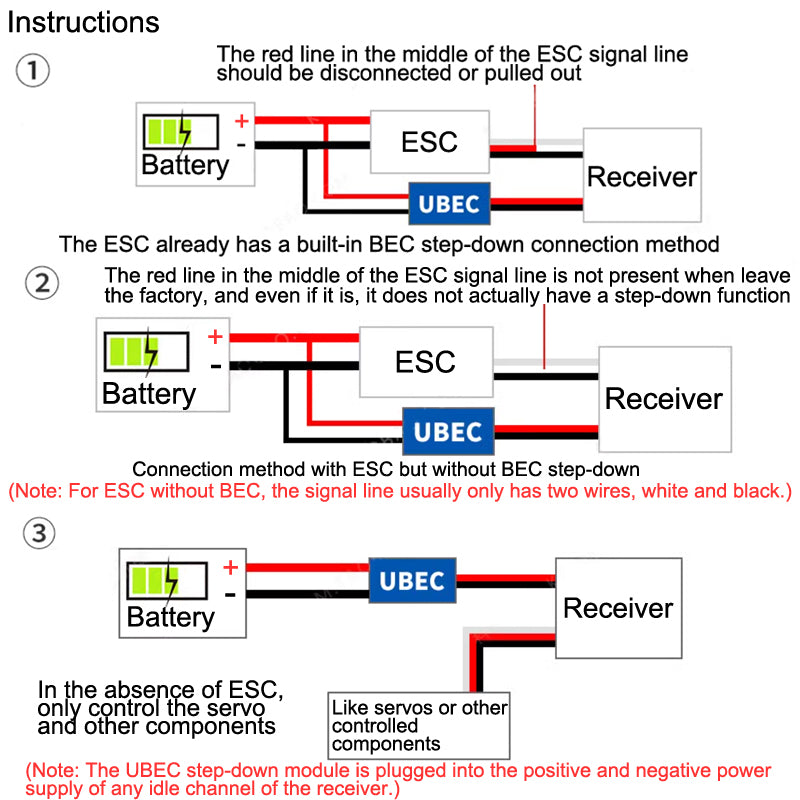

UBEC is an independent external step-down module, mainly used for three needs:
① In the model, there is already an ESC with built-in BEC voltage reduction to power the receiver. However, due to the insufficient step-down current of the ESC (such as large torque servos, a large number, or other devices that require high current from the receiver), problems such as power outage of the towed receiver can be solved by using an external UBEC module with higher current!
② If there is already an ESC in the model, but it does not provide BEC voltage reduction to power the receiver, an additional UBEC stepp-down module is required!
③ For models without ESC, such as oil powered ones, or for other requirements, such as only controlling the servo, a UBEC step-down module is also needed to power the receiver!
Note:
- The larger the load of the takes electricity device plugged into the receiver, the higher the current required for UBEC.
- Size is manual measurement, there are exist errors.
Package include:
1pcs x UBEC
