Description:
- The latest 32-bit ESC, with super mini dimensions, is very suitable for compact installation and is a driving tool for various small model aircraft brushless motors.
- Easy to dissipate heat and powerful. Small body and high power, it is the preferred power source for small aircraft, crawler, climbing vehicles, and mosquito cars. Professional adaptation for small-scale climbing frame, mosquito car drift. Can be used for racing drift RWD.
- Supports mainstream control signals such as DSHOT and PWM, with linear at low speeds, violent at high speeds, and smooth speed regulation. It uses AM32 open-source firmware, which can be freely adjusted. It supports bidirectional operation, adjustable drag braking, sine start, and other functions, and fast forward and reverse switching is very smooth.
- Preset parameters, directly matching EMAX1106 6000kv motor
Specification:

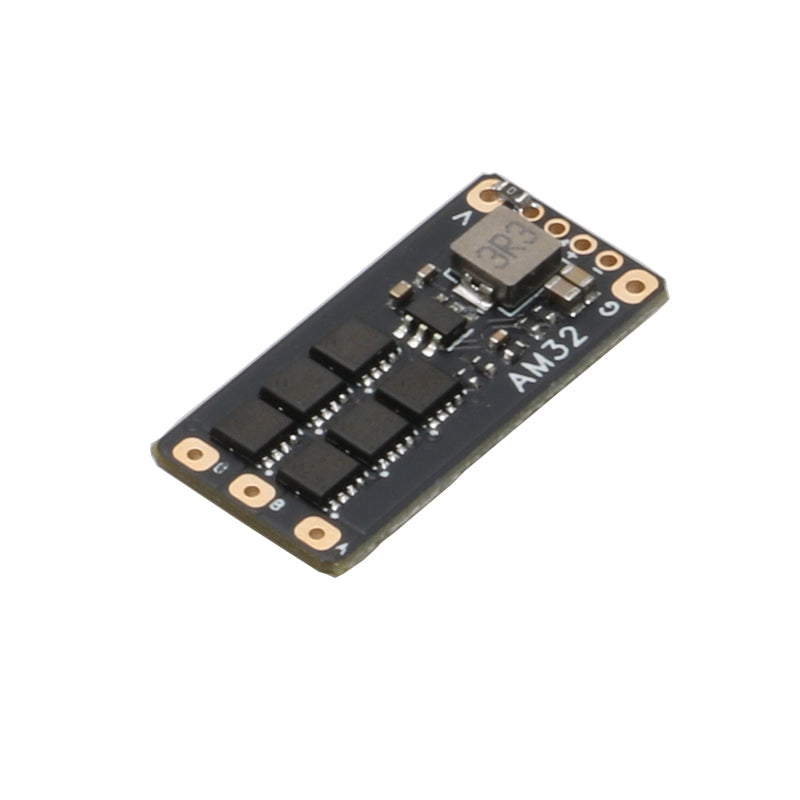

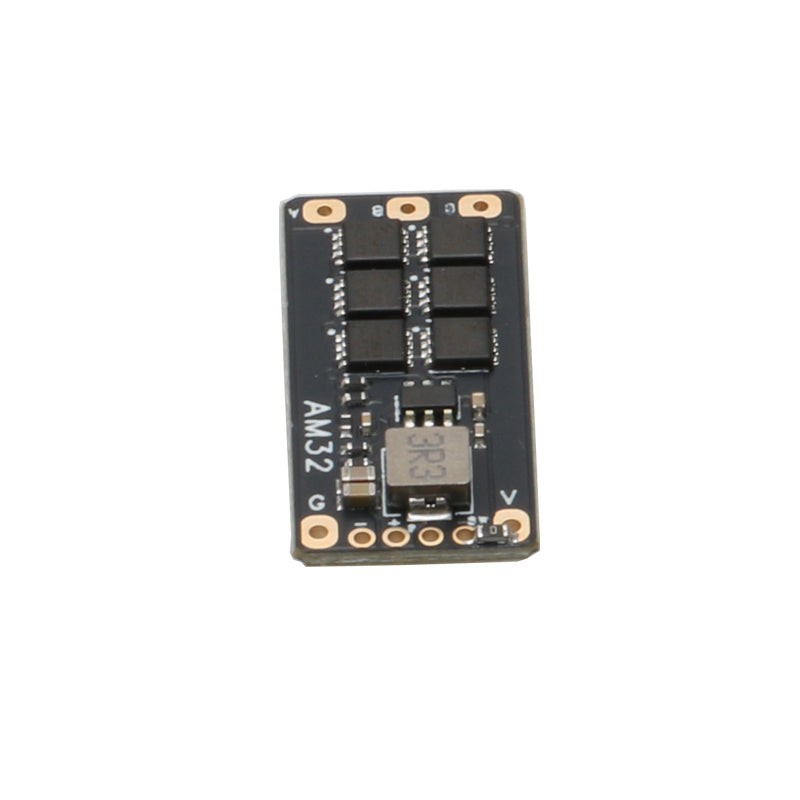

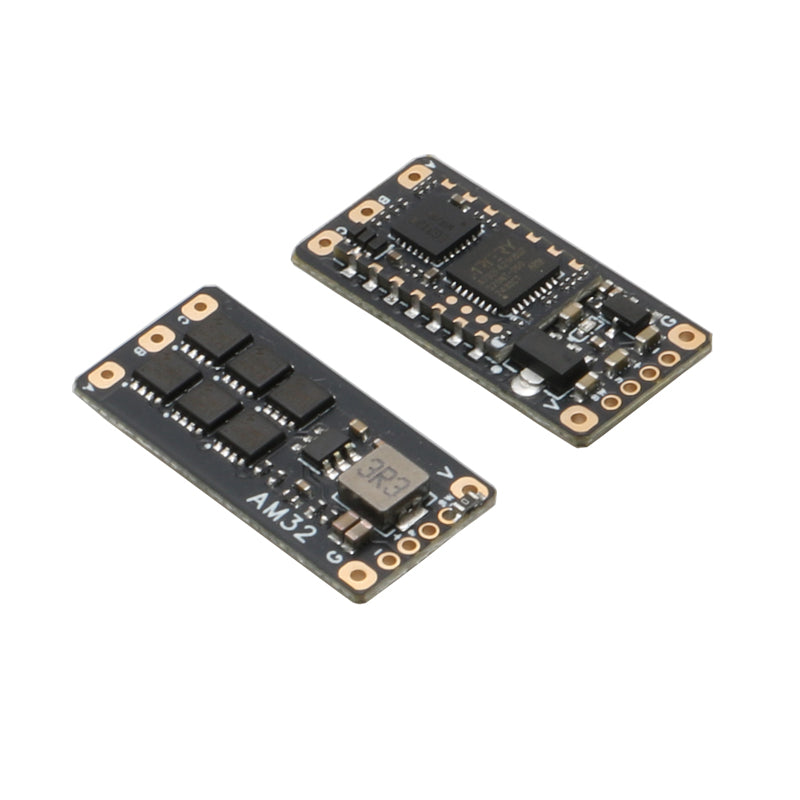

- Item name: AM32 ESC (Ultra-mini)
- Firmware: AM32
- Firmware version: 2.16

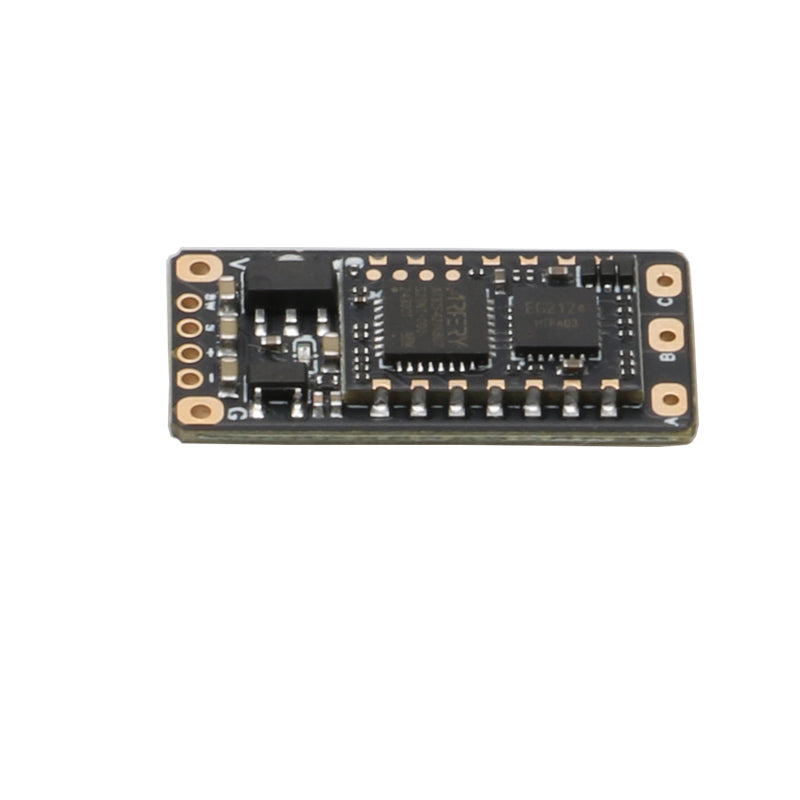

- Master control: AT32F421 120MHz
- PCB: 2OZ+tin plating+2u gold plating
- BEC module: full 5V 3A
- Working voltage: 2-4S LIPO
- Natural heat dissipation output current: 30A
- Support offline configuration tool: SerialPortConnector
- Support online configuration tool: esc-configurator

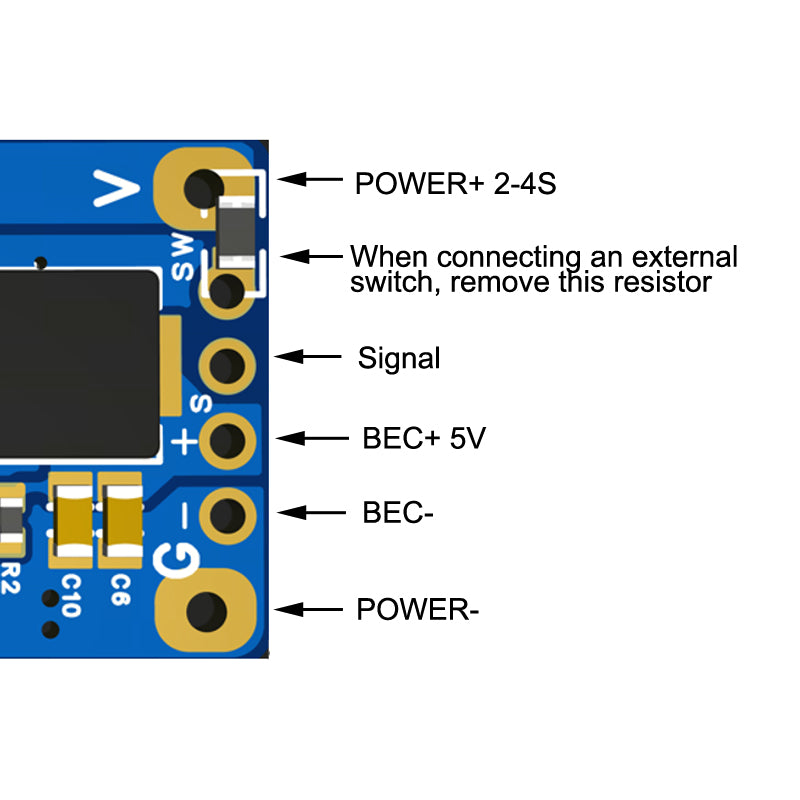

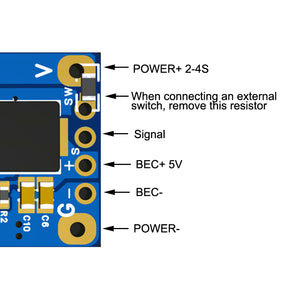

- With LED power lights and switch pads

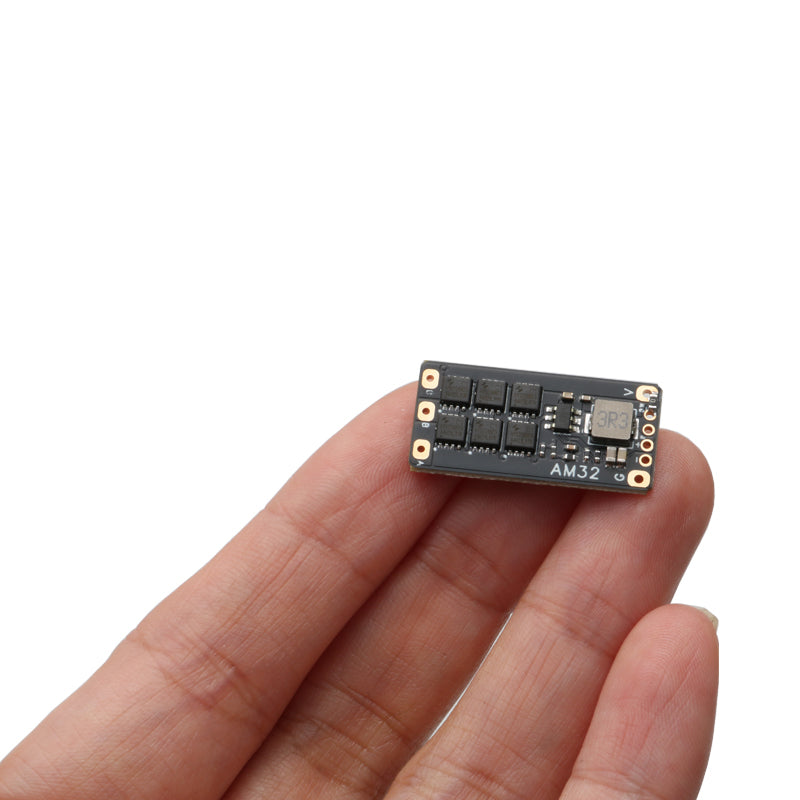

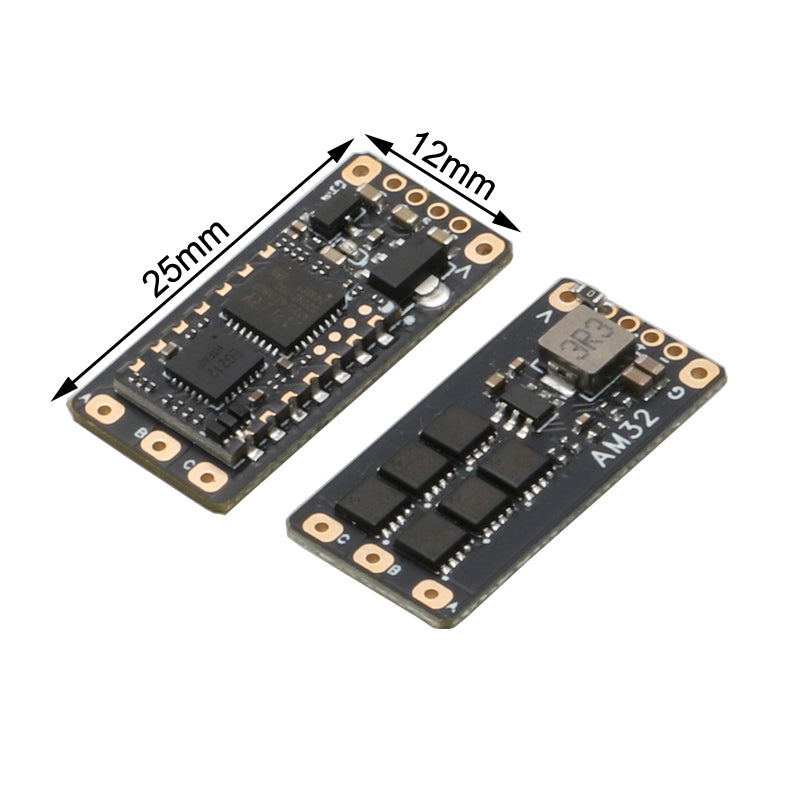

- Size: 25x12x5mm (0.98x0.470.19inch)
- Weight: about 2.1g (0.0046 pounds)
The use of AM32 ESC requires the use of a matching parameter adjuster.

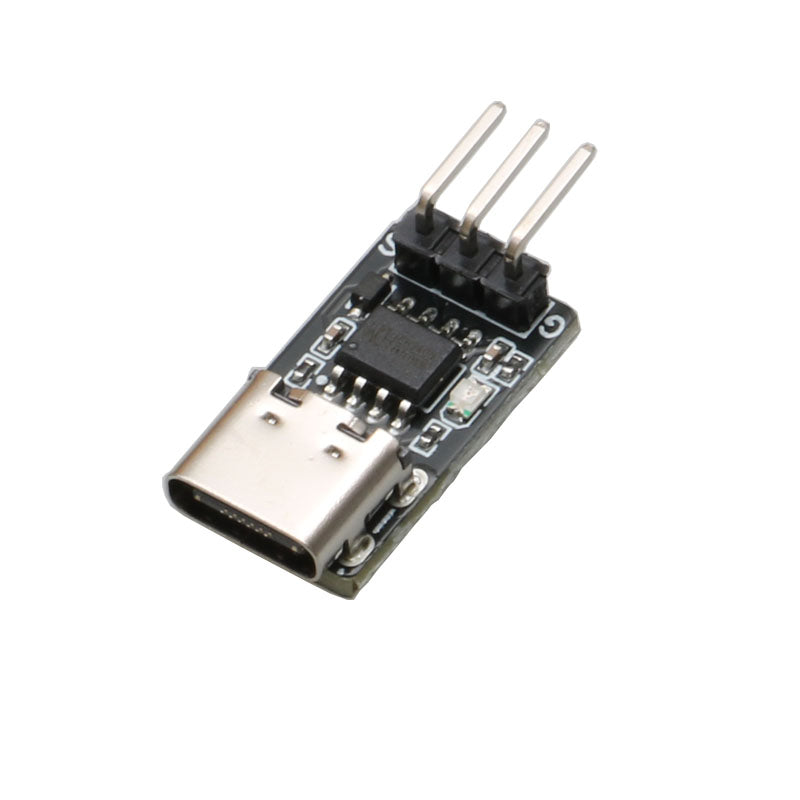

Parameter adjuster:
- Working voltage: 5V
- USB port
- Special for AM32 32-bit ESC
Note: size is manual measurement, there are exist errors
Package include:
1pcs x AM32 ESC
or
1pcs x parameter adjuster
