Features:
- Support high voltage 5-9V receiver.
- 300W power relay.
- Transparent heat shrinkable tube help users see the working status of the LED clearly,
- Two LEDs indicate working status.
- Max DC30V 10A
- Add "no signal protection"
- With boot protection, easy to operate
- Input channels do not need to be calibrated, compatible with various brands of remote - control devices
- Small size and light weight
Application range:
- Remotely controlling model rocket launch
- Remotely controlling model smoke control
- Weapon system control on scale model aircraft
- Model aircraft's smoke control
- Control of various remote switch systems
- Switching the signals of two cameras
- Controlling on and off of various electrical power sources, such as navigation lights, searchlights, strobe lights, buzzers, etc.
- Controlling the camera shutter, or switching camera's recording and camera mode.
Functional Description:
- The remote switch remotely controls the electrical equipment on the aircraft model through a switch channel on the remote control, and the 1-way LED dynamically demonstrates the current switch state in real time, so it's easy to use even without an operation manual.
- This device does not require calibration and can be accurately compatible with remote control devices of various brands.
Typical application:
1. Connecting
Plug the signal input cable into an idle receiver channel (recommended for the two-stage switch channel), which corresponds to a switch on the remote control.
The red indicator light will be on when connected to the receiver.
The blue indicator light will be on when the switch channel is open, and vice versa.
2. Working mode
The red LED is always on; the signal is normal. The red LED light flashes; no signal.
The blue LED indicates the relay's operating status.
3. Trigger
Turn the switch on the remote control (OFF->ON), the blue LED lights up and the relay starts to work.
Turn the switch on the remote control off (ON-> OFF), the blue LED will go out and the relay will not work.
Package included:

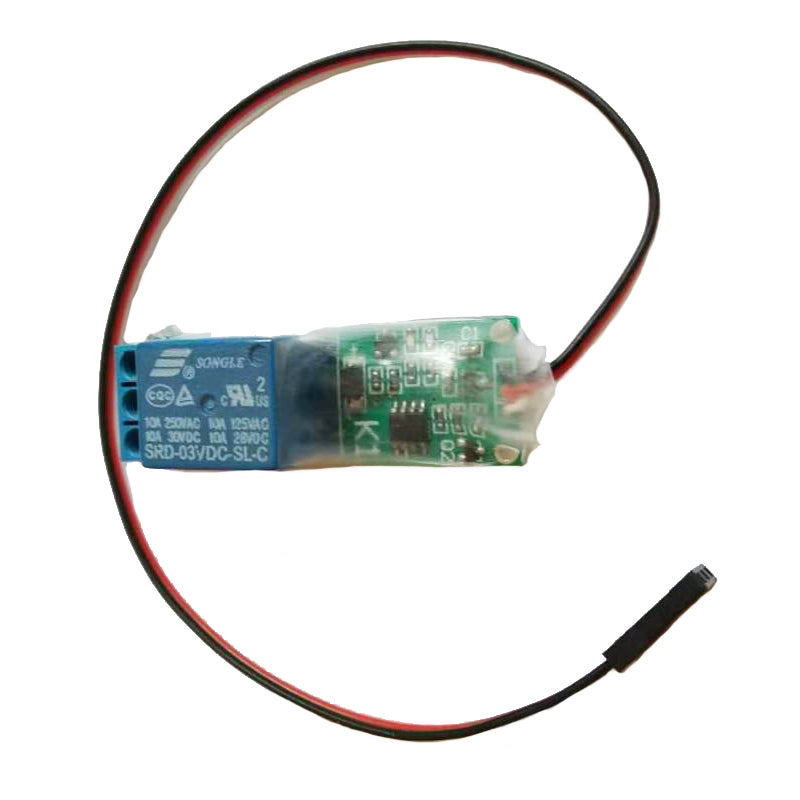

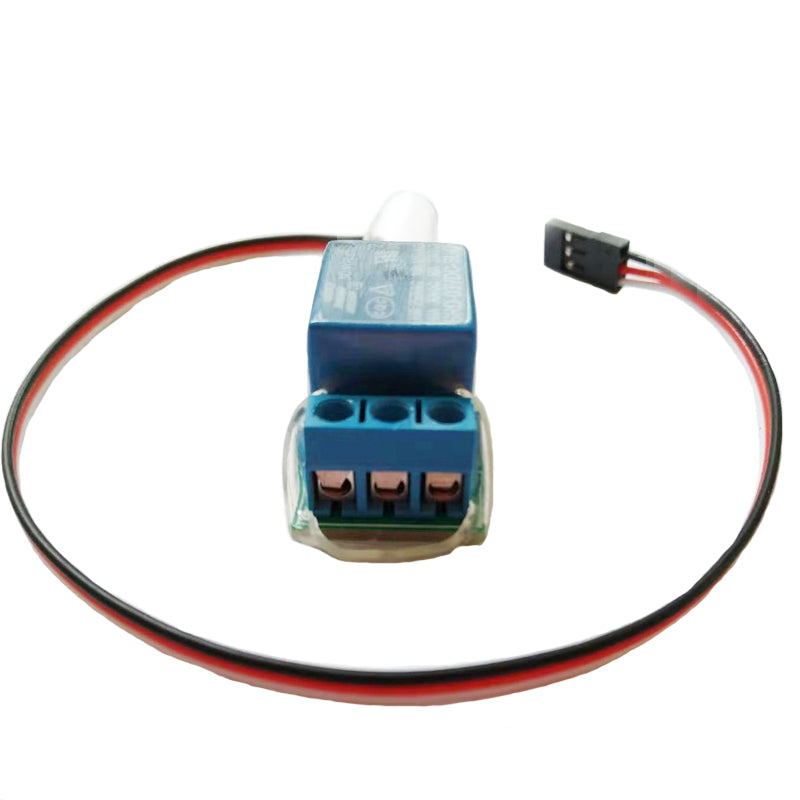

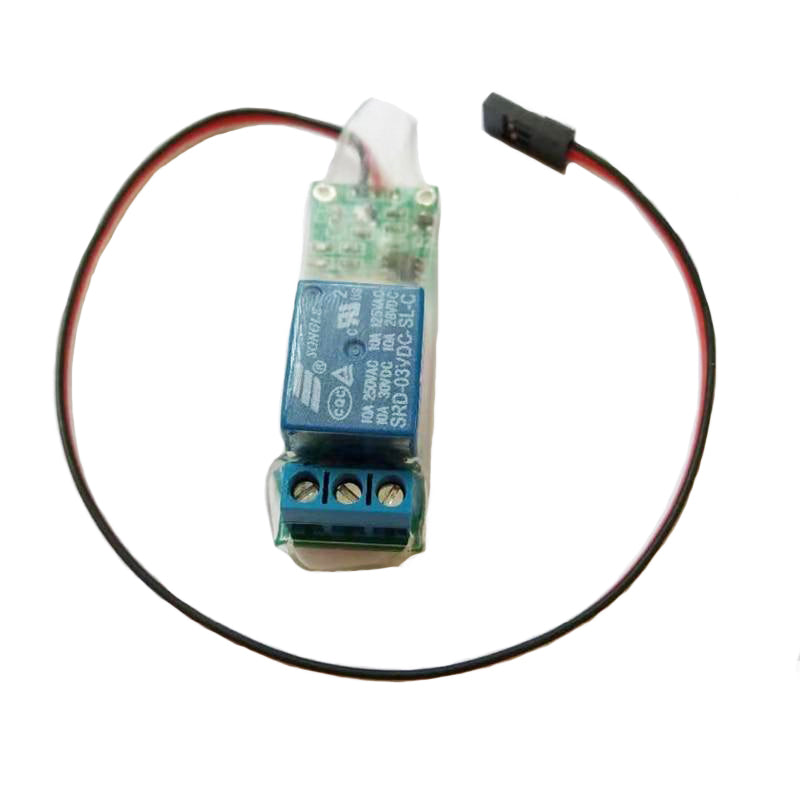

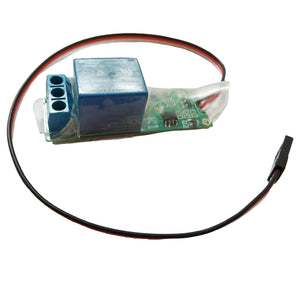

1PCS x RC relay switch
