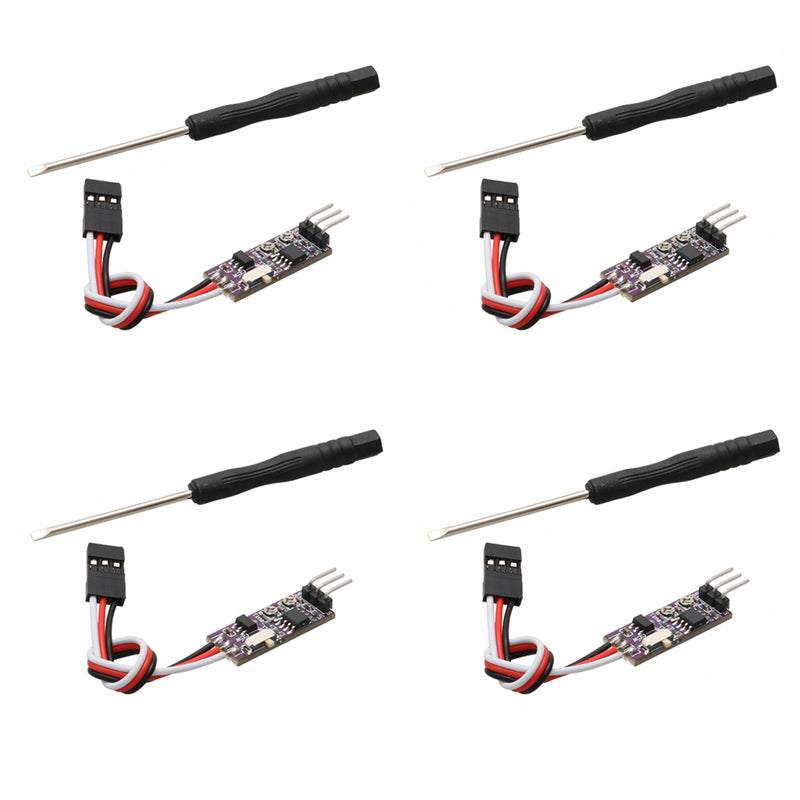

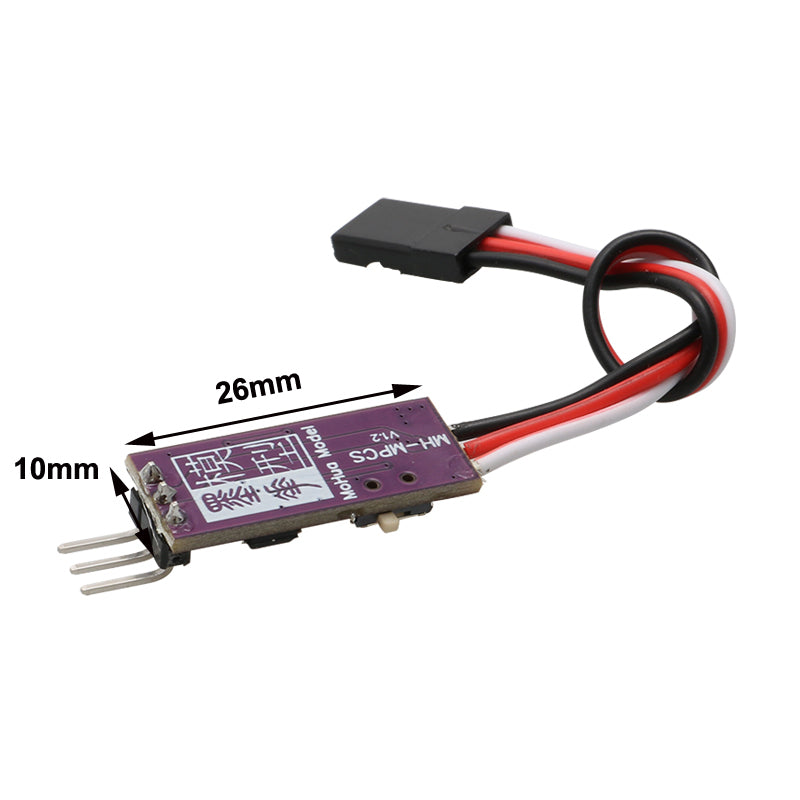

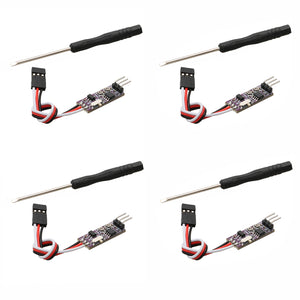

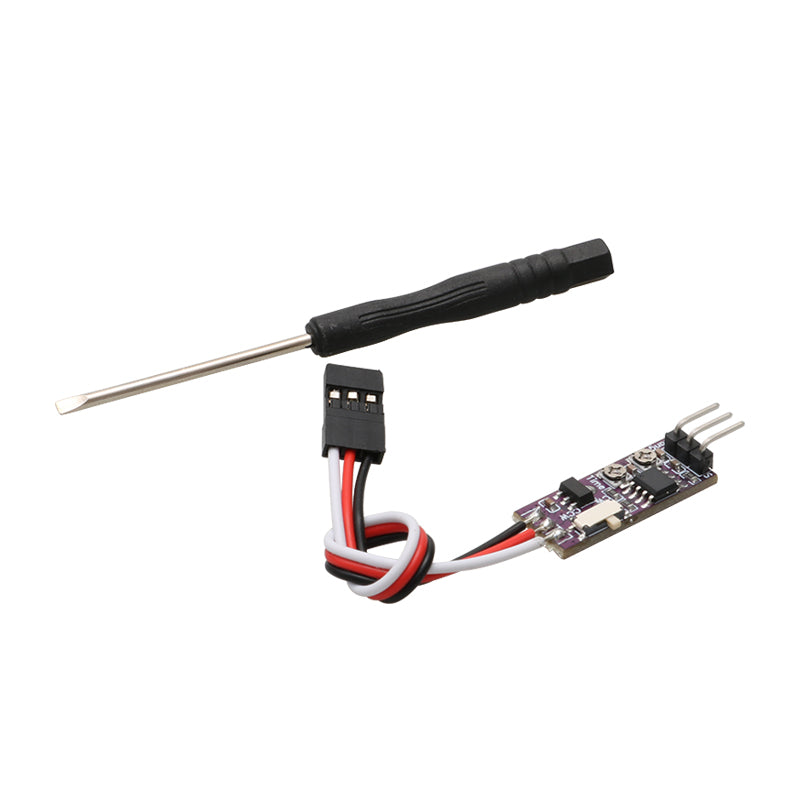

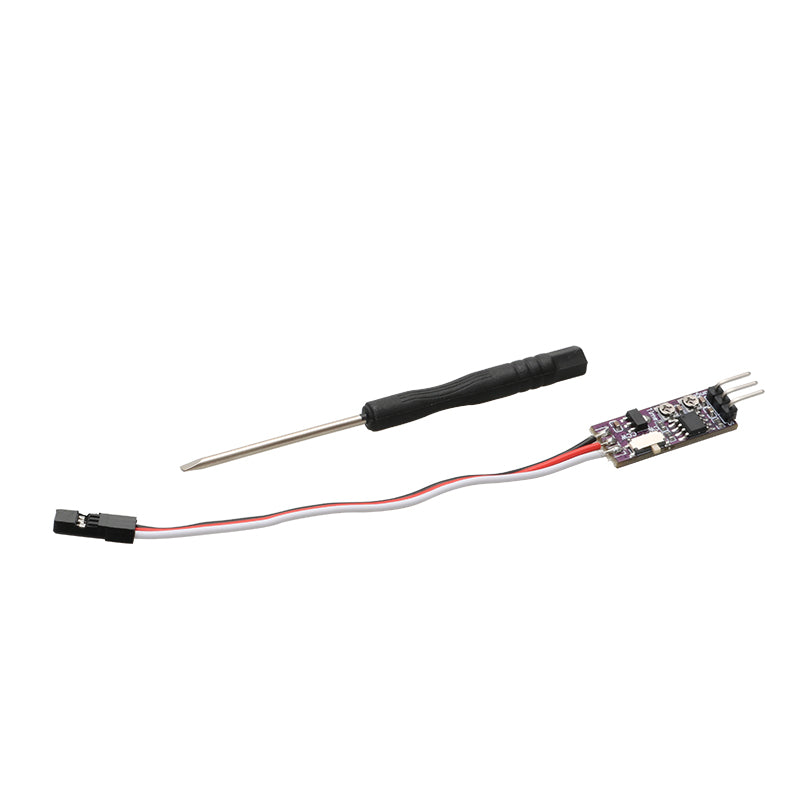

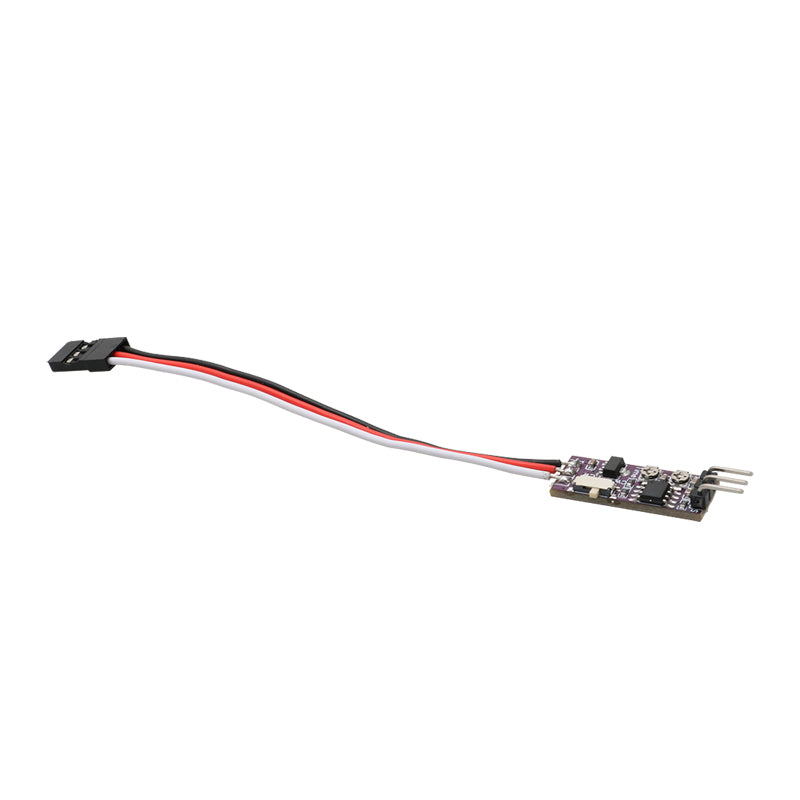

Specification: - Item name: multifunctional servo controller - Intput and output: 1000us~2000us=》500us~2500us - Power supply voltage: 5-30V (to the servo) - Output: 0.5-2.5MS adjustable - Hardware: 16 bit PWM (resolution 65535) - Servo line length: 100mm - Weight: about 2.8g/pcs - Board size(length x width): 26x10mm - Equip with screwdriver - Suitable for servo control - Used for rc model diy modification

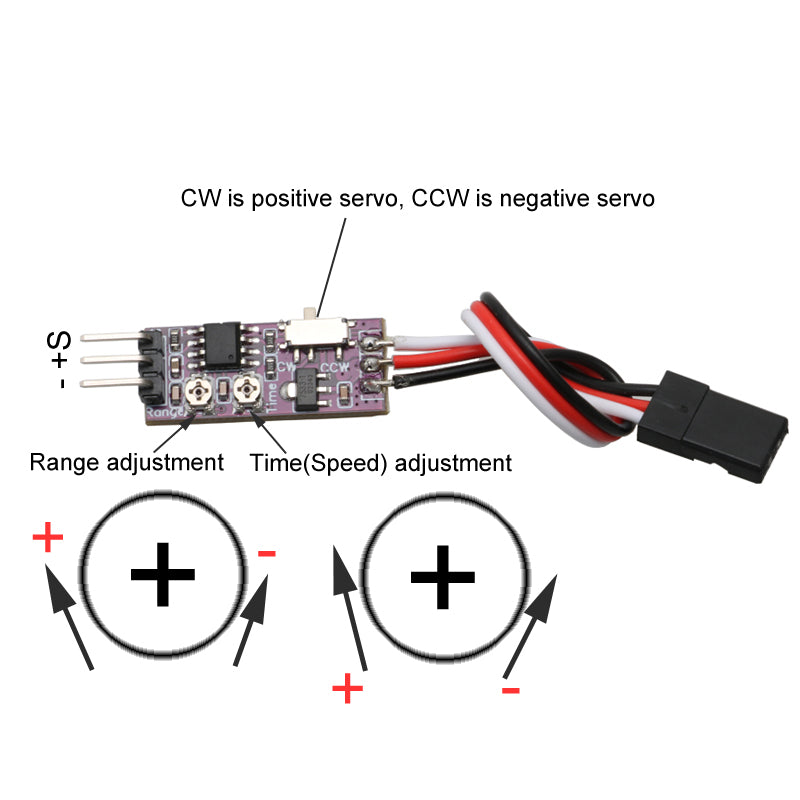

Features: - Adjustment accuracy: The resolution of the 12 bit ADC is 4096 (which means the output signal is divided into 4096 points, while the ordinary servo controller only has 256 points, which is 8 bit accuracy). - Range adjustable: clockwise rotation of the small potentiometer can amplify or counterclockwise rotation can reduce the swing range of the servo. - Time (speed) adjustable: clockwise rotation of the small potentiometer can accelerate or counterclockwise rotation can slow down the swing speed of the servo motor. - Positive servo/negative servo (CW/CCW): toggle the switch to the left for positive servo and to the right for reverse servo.
Note: - Size is manual measurement, there are exsit errors. - The CW CCW will take effect after being repowered on.
