Specification:

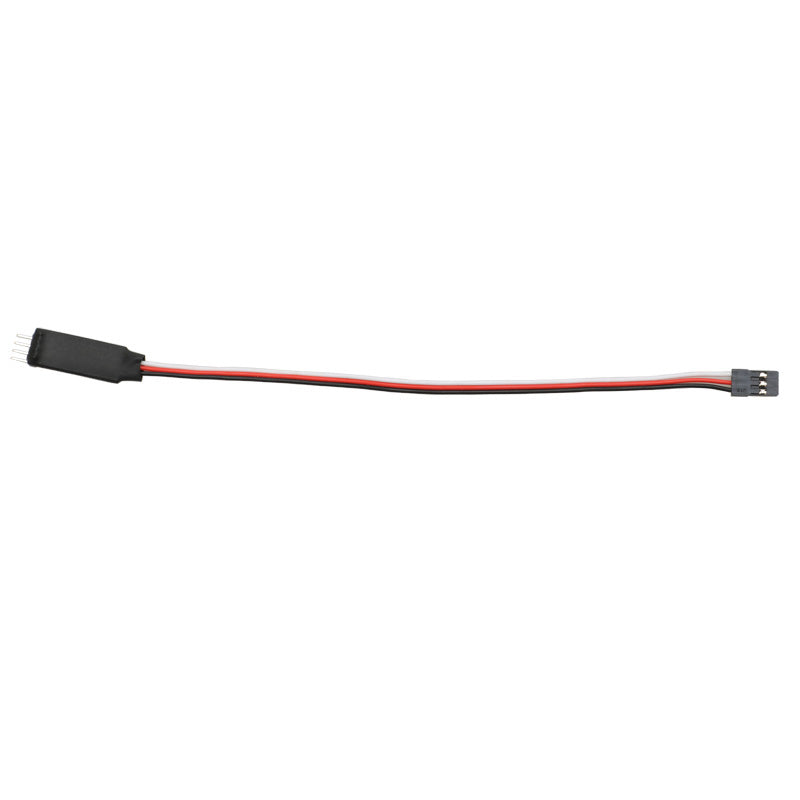

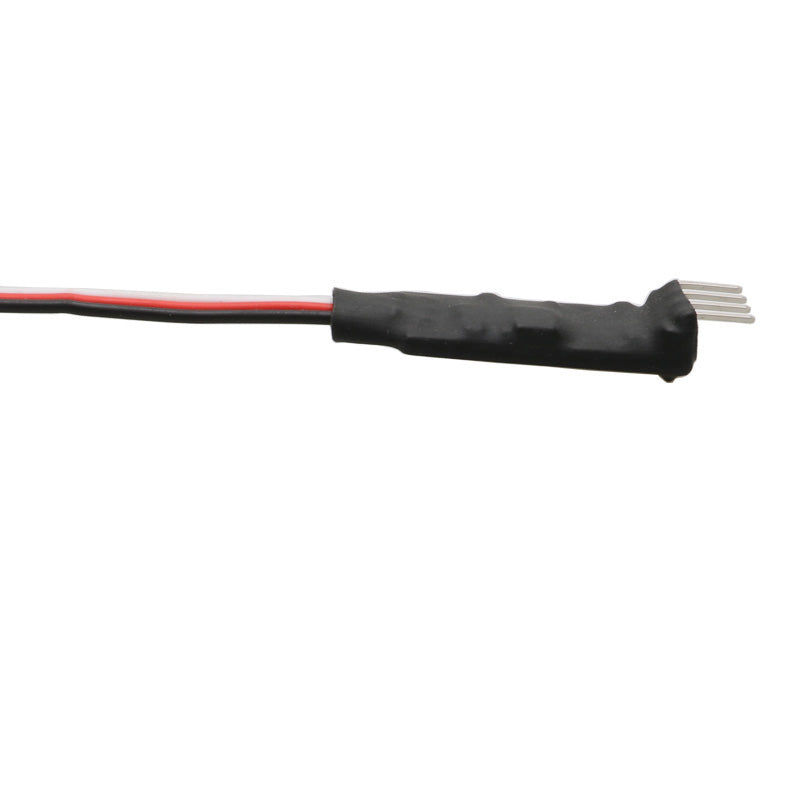

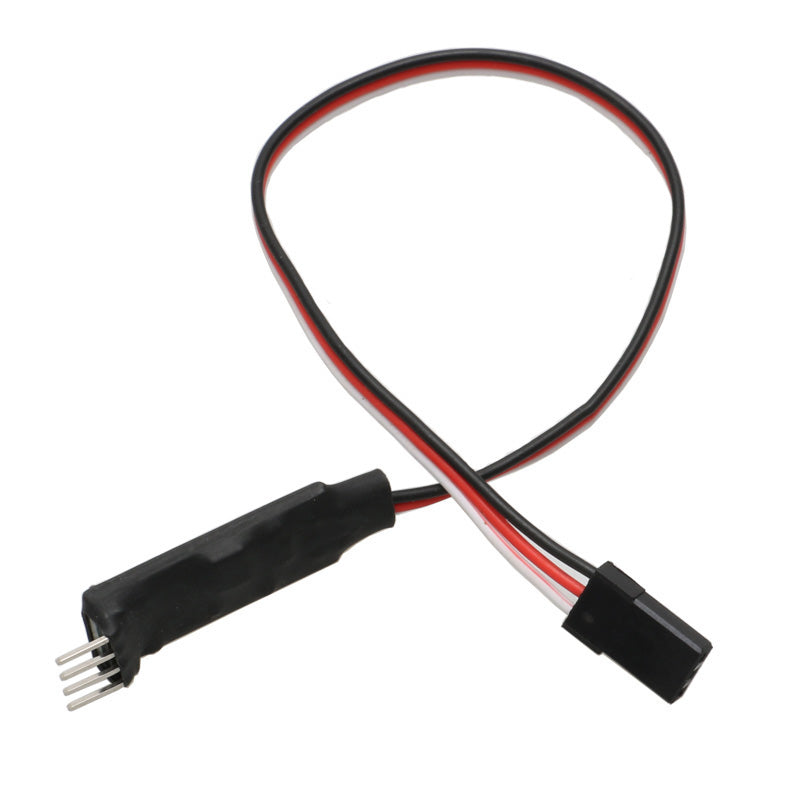

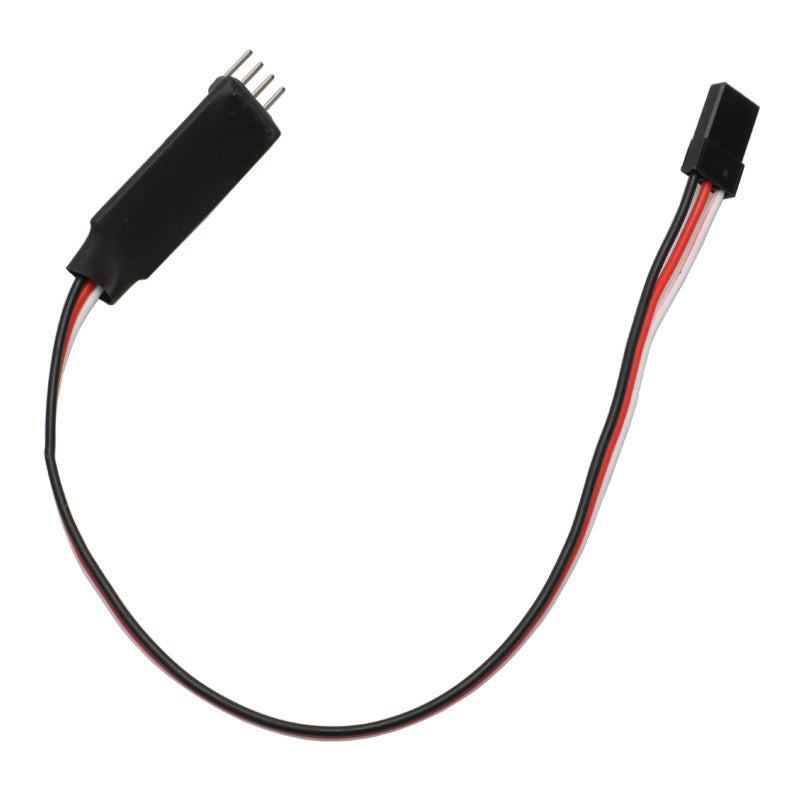

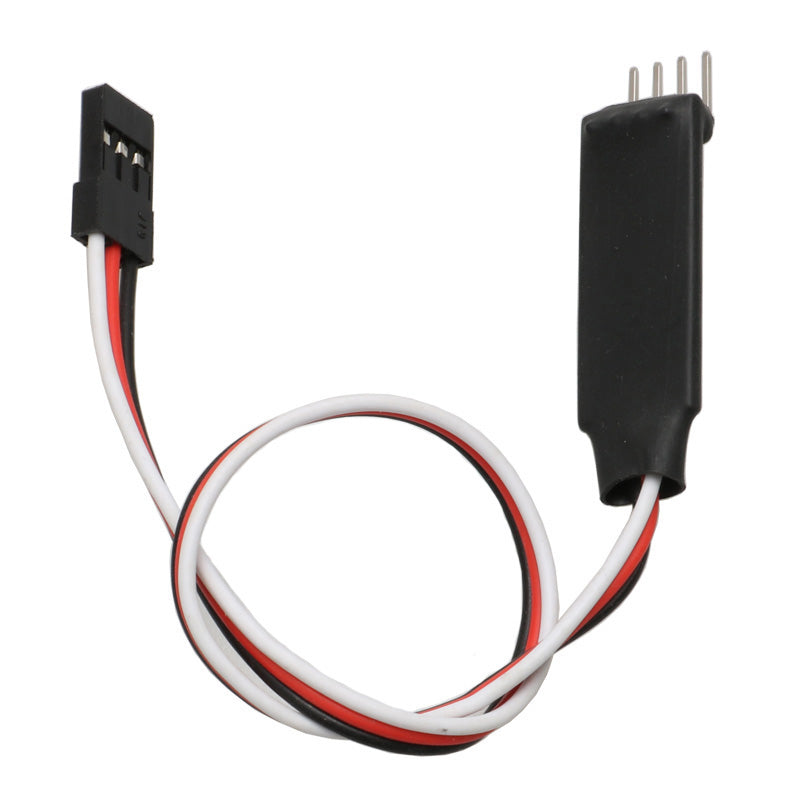

- Item name: CH2-L RC electronic switch Module
- Max current: 1A/channel
- BEC output: no
- 5-12V receiver power supply
- With power-on protection, only at the middle position can enter the system
- Without signal protection
Control mode:
- Three-stage fluctuation switch channel:
The other channel work: low position 1000us
Two channels close: medium position 1500us
One channel work: high position 2000us
Application:
- LED light remote control switch
- Occasions requiring switch control
- Power supply connection and disconnection
Note:
- The load current can not be higher than receiver power supply current.
- At the same time, only one channel is working.
- Size is manual measurement, there are exist errors.

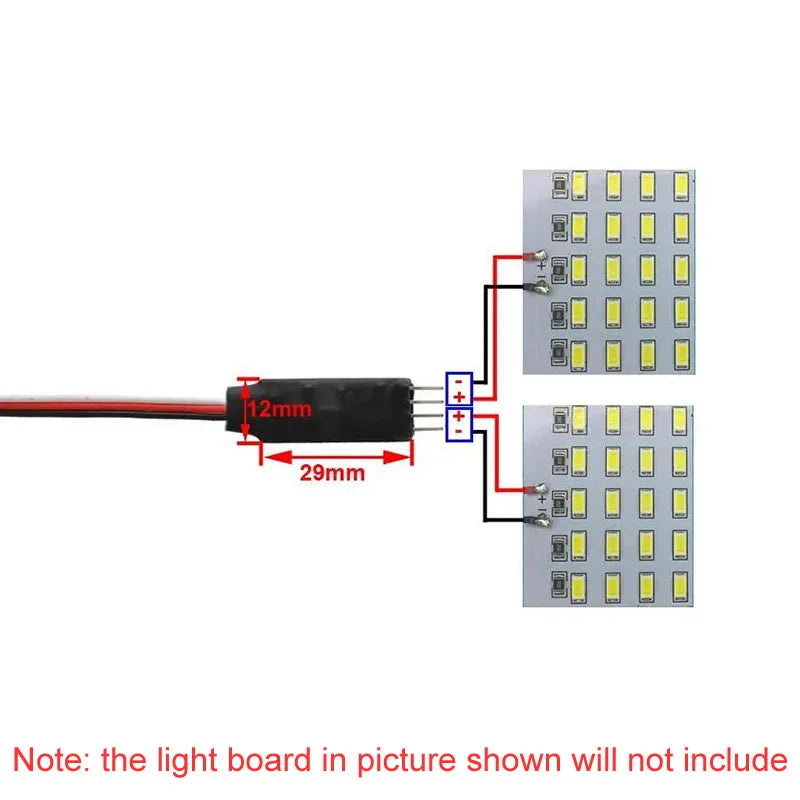

- The light board in picture shown will not include.
- Due to unavoidable factors such as monitor, shooting angle, light source, etc., the color in the picture may have a very slight color difference with the goods you receive. Everything is subject to the goods you receive.

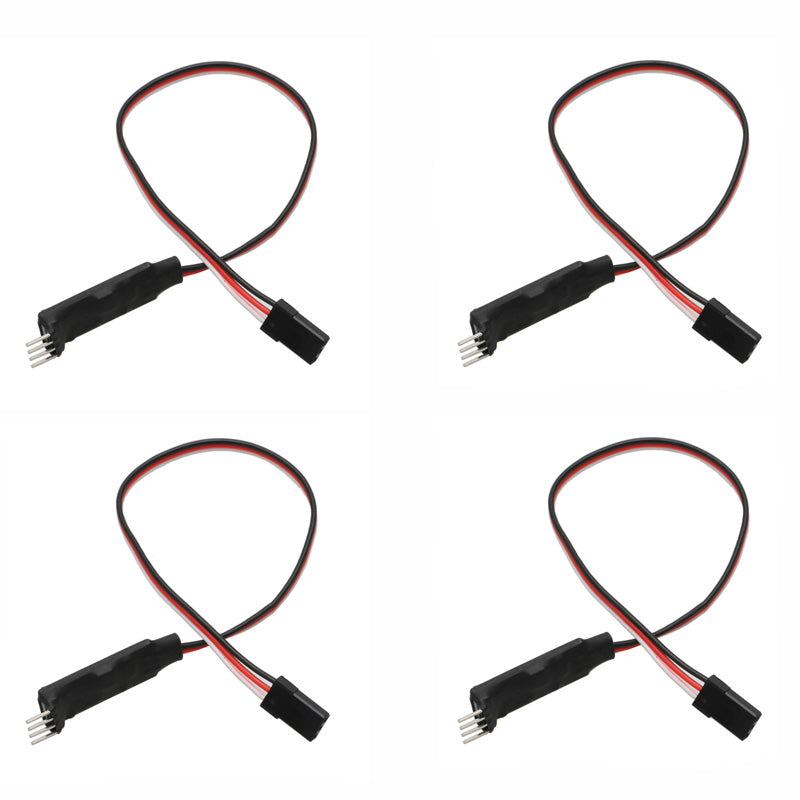

Package included:
4pcs x electronic switch
