Specification:

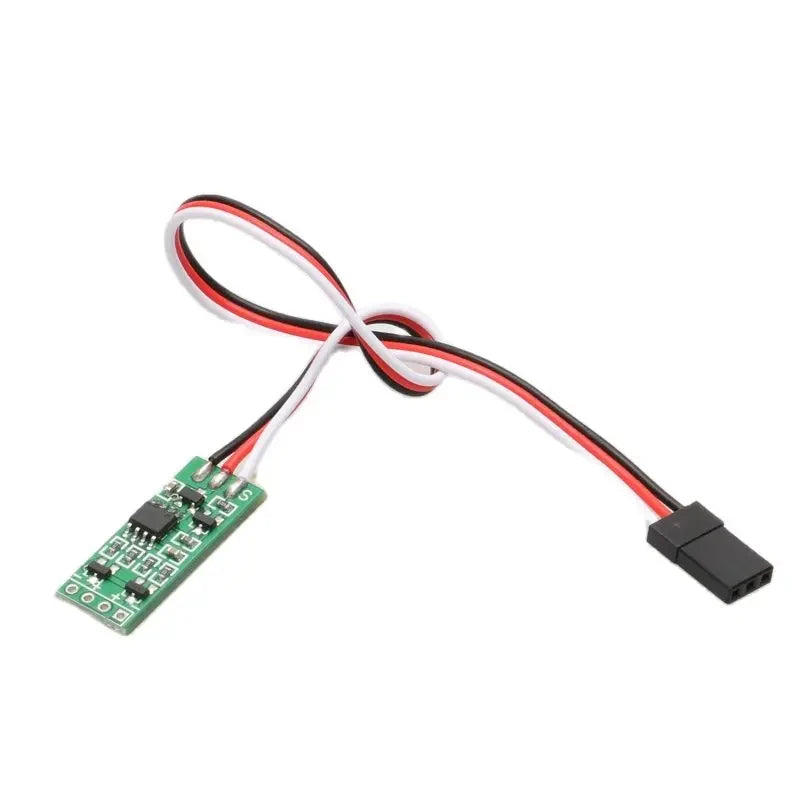

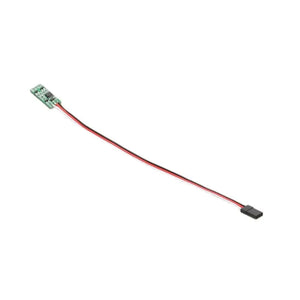

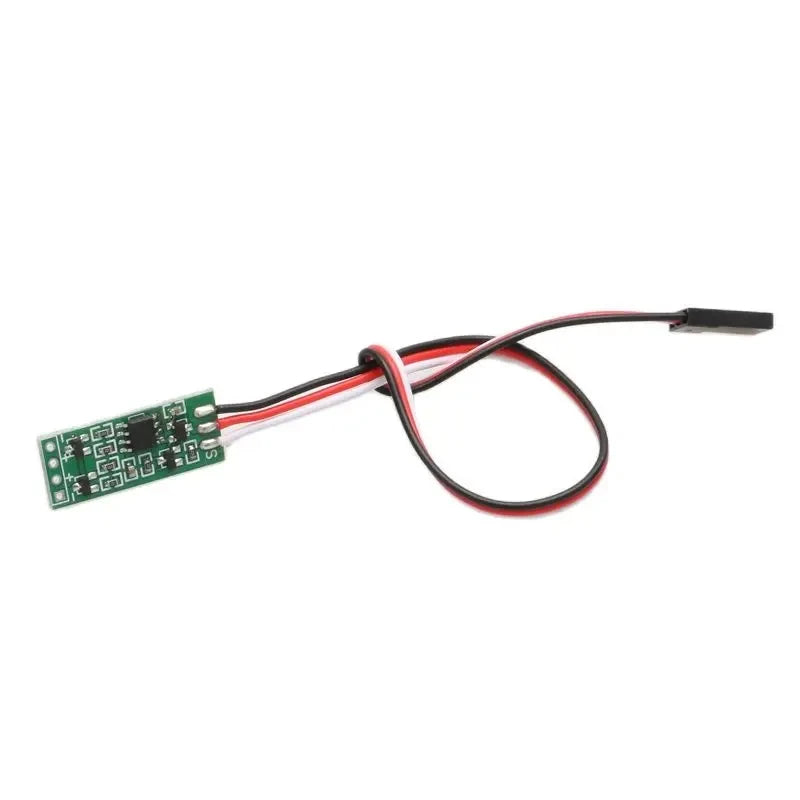

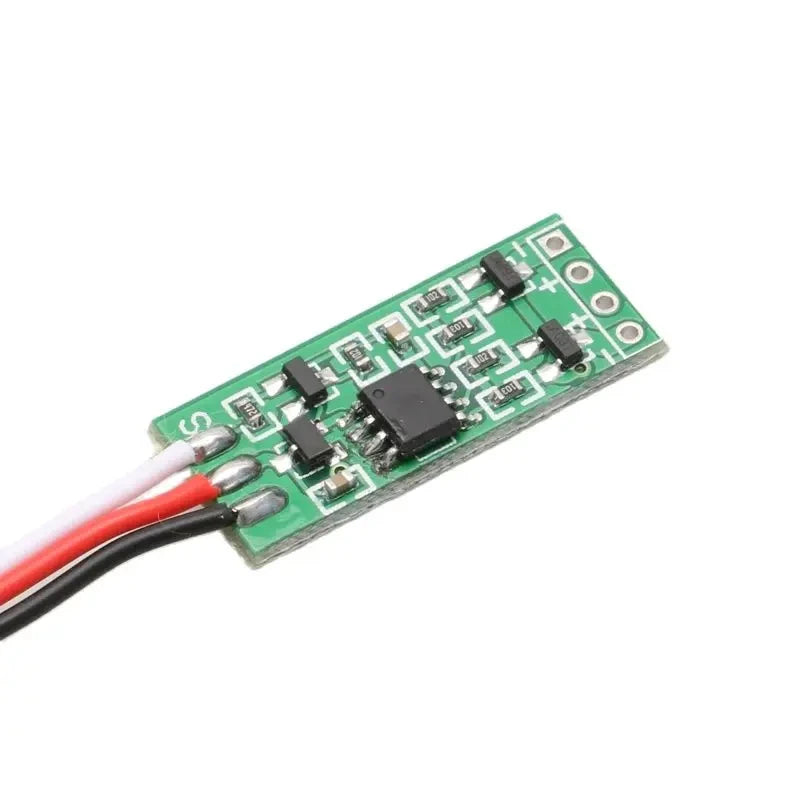

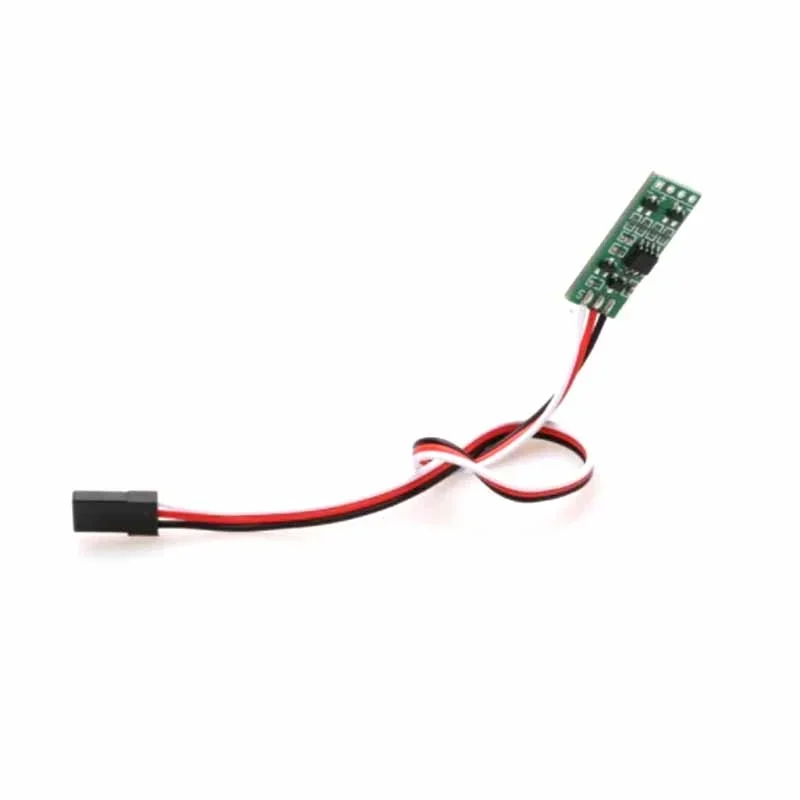

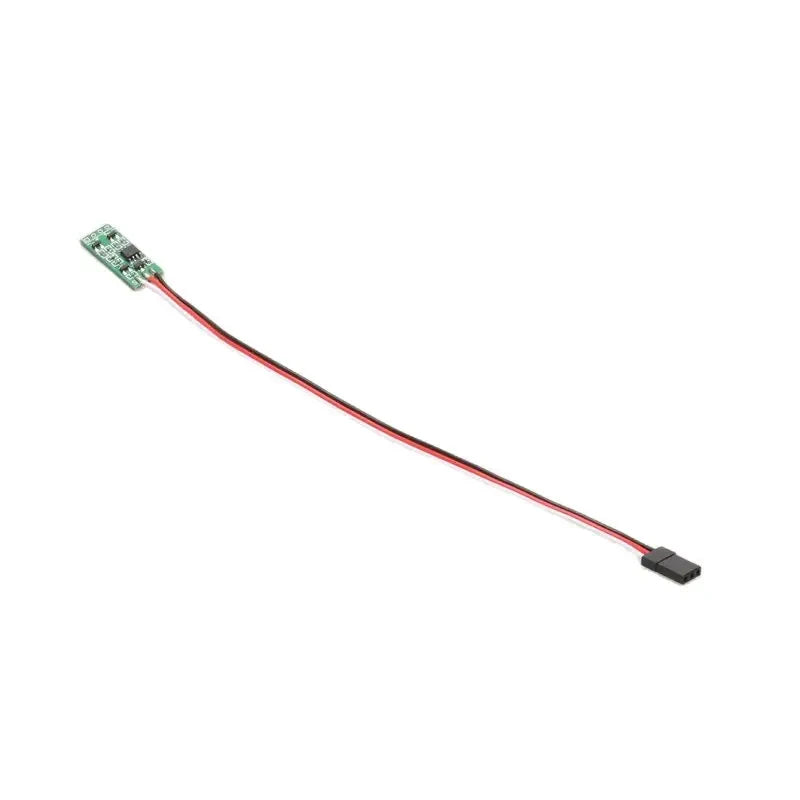

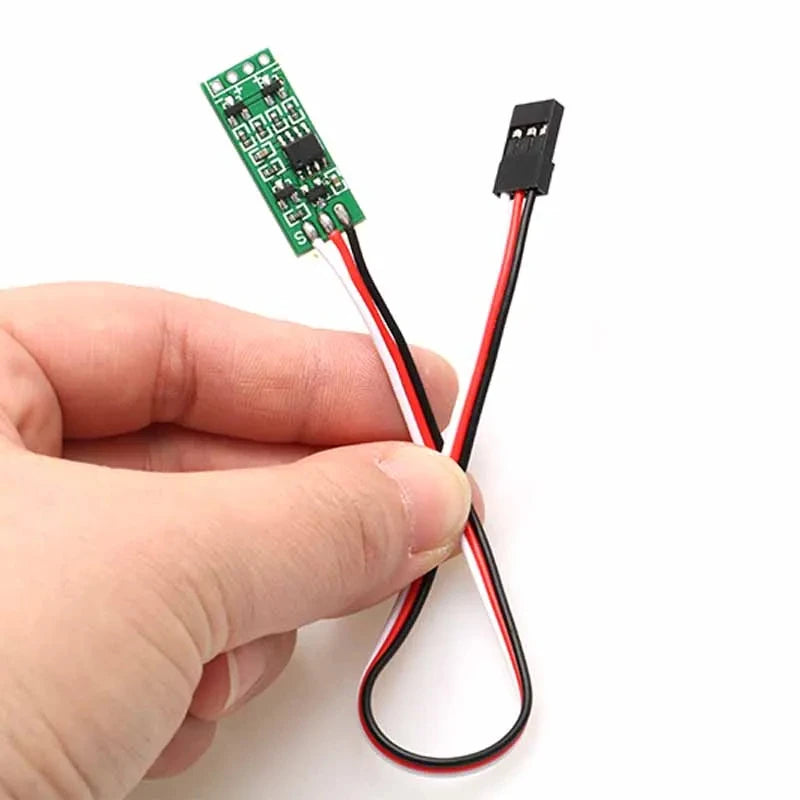

- Item name: mini electronic switch module
- Used for RC model airplane
Features:
- Support 5V~12V voltage receiver.
- 1 channel of steering gear signal input, control two channels of electronic switches
- The maximum current is equal to the input current, and there is no overcurrent protection function.
- No working indicator, with boot protection function, easy to operate
- The input channel does not need to be calibrated, compatible with all brands of remote control equipment
- Small size and light weight
Scope of application:
- Remote control model LED light control
- LED light system control like a real machine
- Light control of model aircraft
- Control of various remote switch systems
- Control the power on and off of various electrical appliances, such as navigation lights, search lights, strobe lights, etc.
Function description:
- The remote switch remotely controls the electrical equipment on the aircraft model through a certain switch channel on the remote controller, so it can be quickly used without an operation manual.
- This device does not require calibration and can be accurately compatible with remote control devices of various brands.
- Insert the signal input cable into the receiver switch channel, which corresponds to the switch on the remote control.
Working mode:

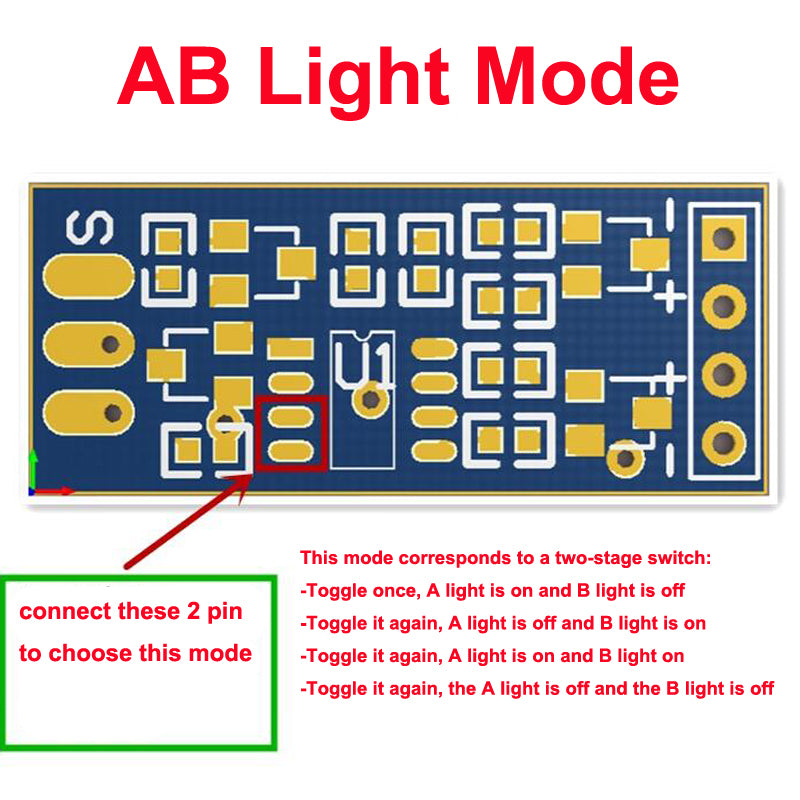

AB light mode
This mode corresponds to a two-stage switch:
-Toggle once, A light is on and B light is off
-Toggle it again, A light is off and B light is on
-Toggle it again, A light is on and B light on
-Toggle it again, the A light is off and the B light is off

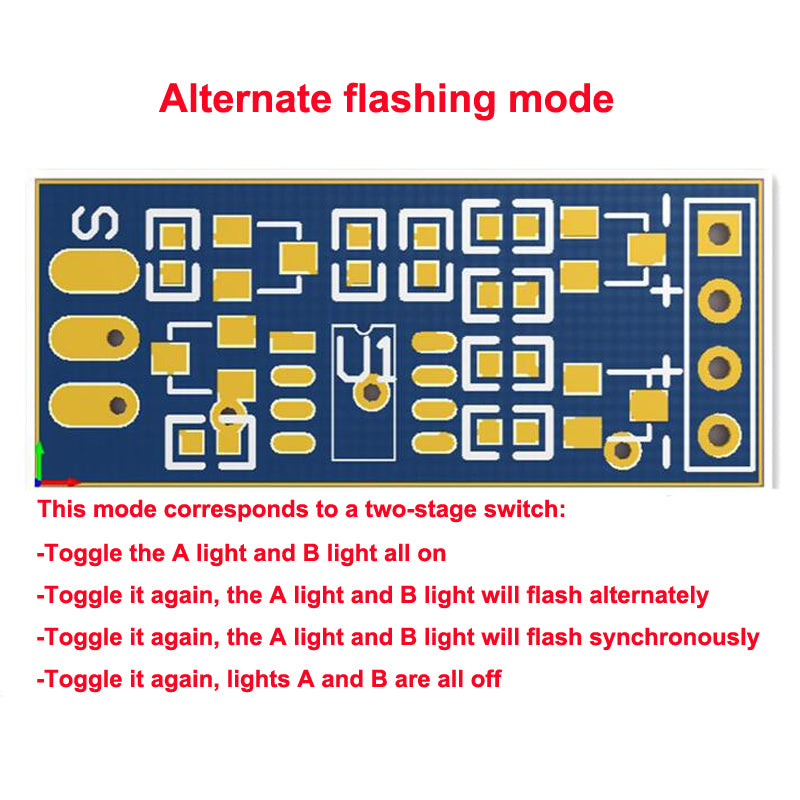

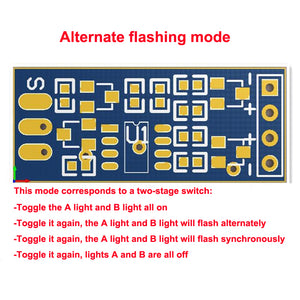

Alternate flashing mode
This mode corresponds to a two-stage switch:
-Toggle the A light and B light all on
-Toggle it again, the A light and B light will flash alternately
-Toggle it again, the A light and B light will flash synchronously
-Toggle it again, lights A and B are all off

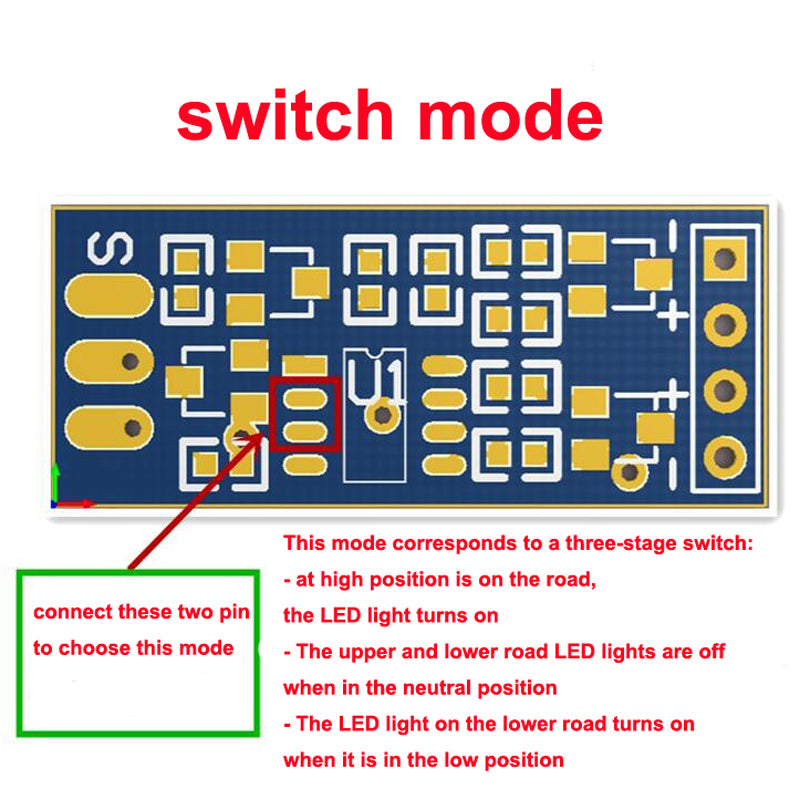

Switch mode
This mode corresponds to a three-stage switch:
- At high position is on the road,
the LED light turns on
- The upper and lower road LED lights are off
when in the neutral position
- The LED light on the lower road turns on
when it is in the low position
Turn signal mode
This mode corresponds to three-stage switch/proportional channel
-When in high position, the lower light flashes
-In the middle position, the upper and lower lights flash
-When in low position, the upper light flashes

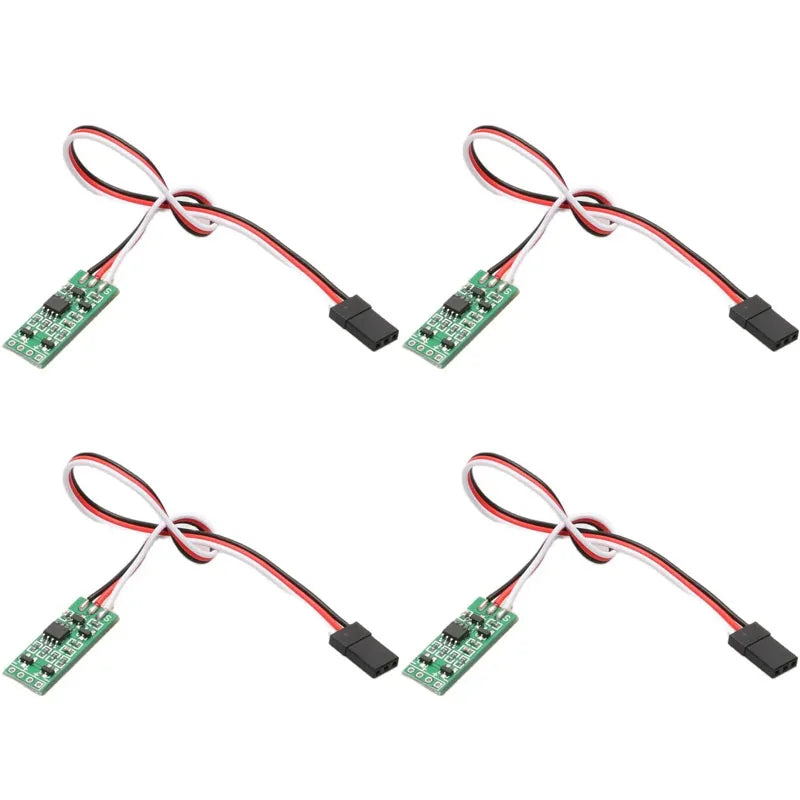

Package include:
4pcs x electronic switch module
