Specification:

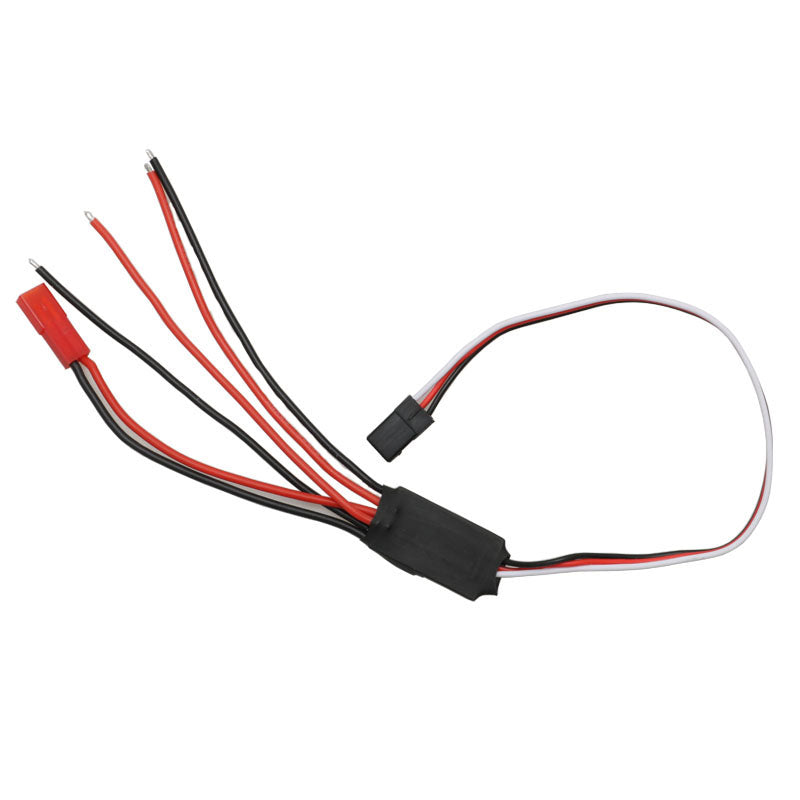

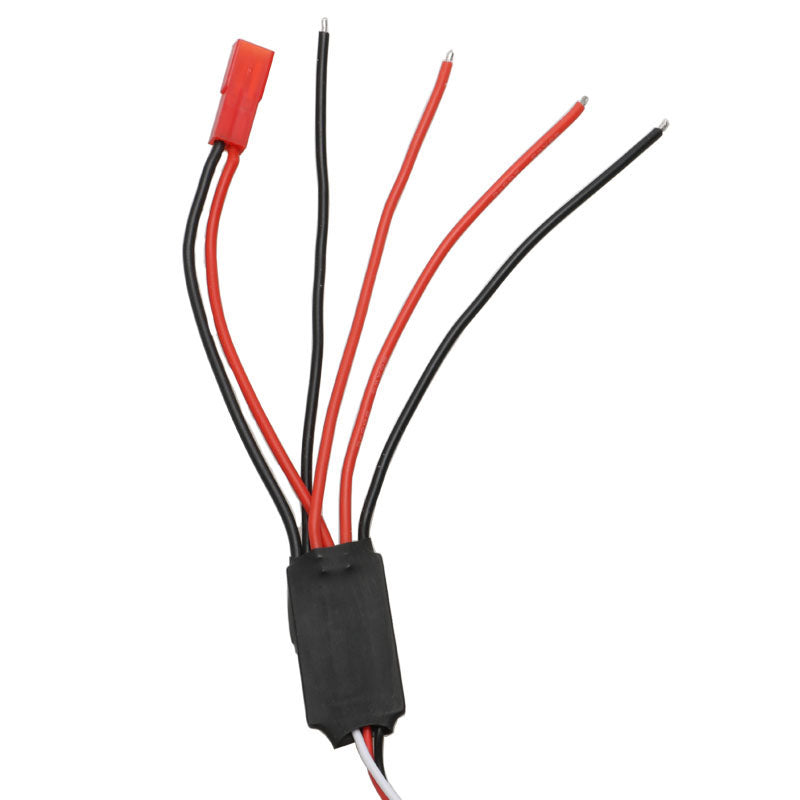

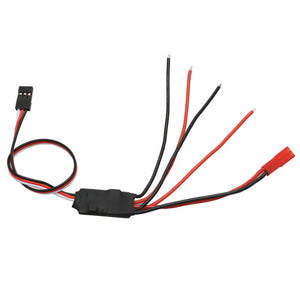

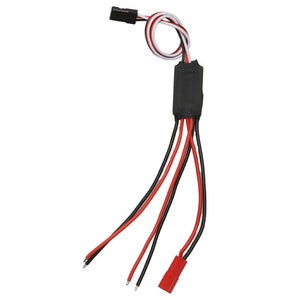

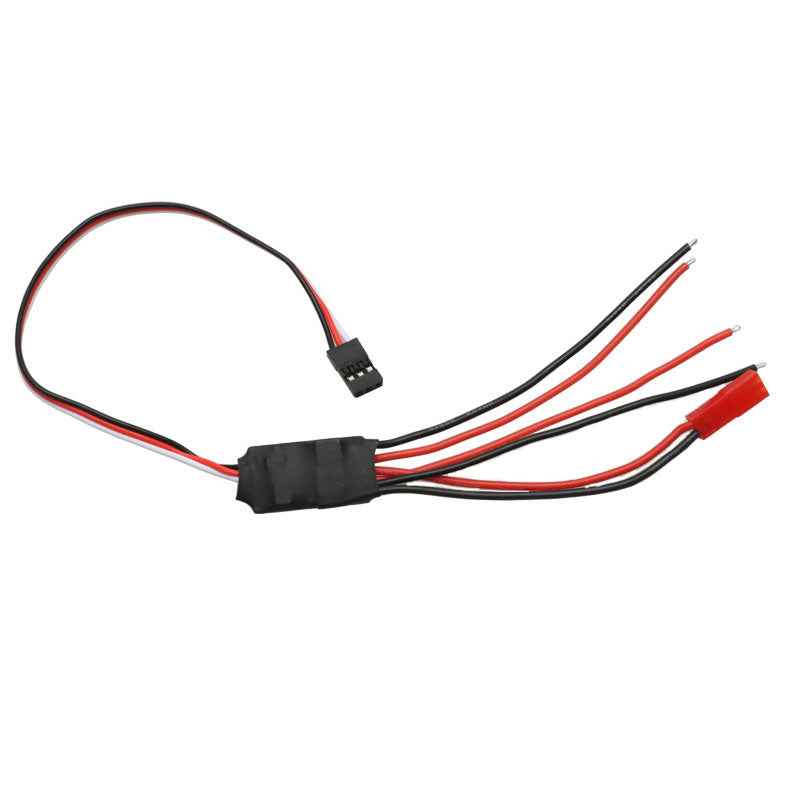

- Item name: CH2 electronic switch
- Voltage: 6V-30V
- Max current: 10A
- BEC output: NO
- Support 5V-30V battery
- Can't power supply for receiver
- With power-on protection, only at the neutral position can enter the system
- Without signal protection
Control mode:
- Three-section fluctuation switch channel
high position 2000us one channel work
neutral position 1500us two channels close
lower position 1000us the other channel work
Application:
- LED light remote control switch
- Occasions requiring switch control
- Power supply connection and disconnection
Note:
- At the same time, only one channel is working
- Size is manual measurement, there are exist errors.
- The light board in picture shown will not include.
- Due to unavoidable factors such as monitor, shooting angle, light source, etc., the color in the picture may have a very slight color difference with the goods you receive. Everything is subject to the goods you receive.
Package included:

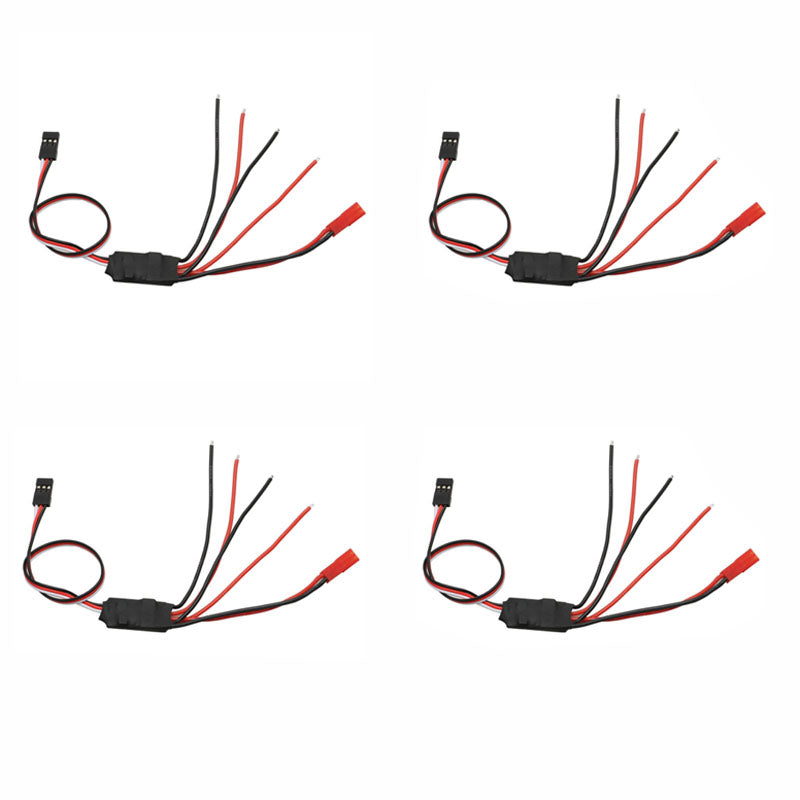

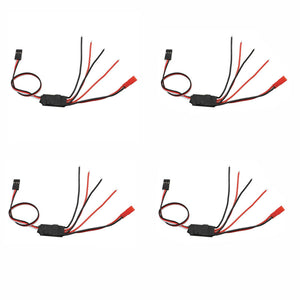

4pcs x electronic switch
- Item name: CH2 electronic switch
- Voltage: 6V-30V
- Max current: 10A
- BEC output: NO
- Support 5V-30V battery
- Can't power supply for receiver
- With power-on protection, only at the neutral position can enter the system
- Without signal protection
Control mode:
- Three-section fluctuation switch channel
high position 2000us one channel work
neutral position 1500us two channels close
lower position 1000us the other channel work
Application:
- LED light remote control switch
- Occasions requiring switch control
- Power supply connection and disconnection
Note:
- At the same time, only one channel is working
- Size is manual measurement, there are exist errors.
- The light board in picture shown will not include.
- Due to unavoidable factors such as monitor, shooting angle, light source, etc., the color in the picture may have a very slight color difference with the goods you receive. Everything is subject to the goods you receive.
Package included:
4pcs x electronic switch
