Specification:

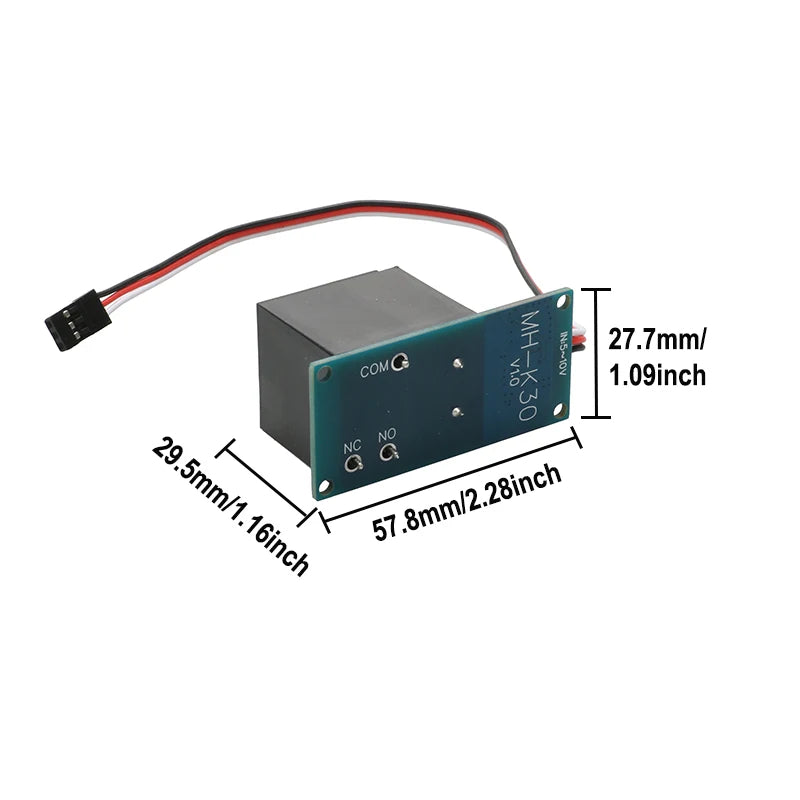

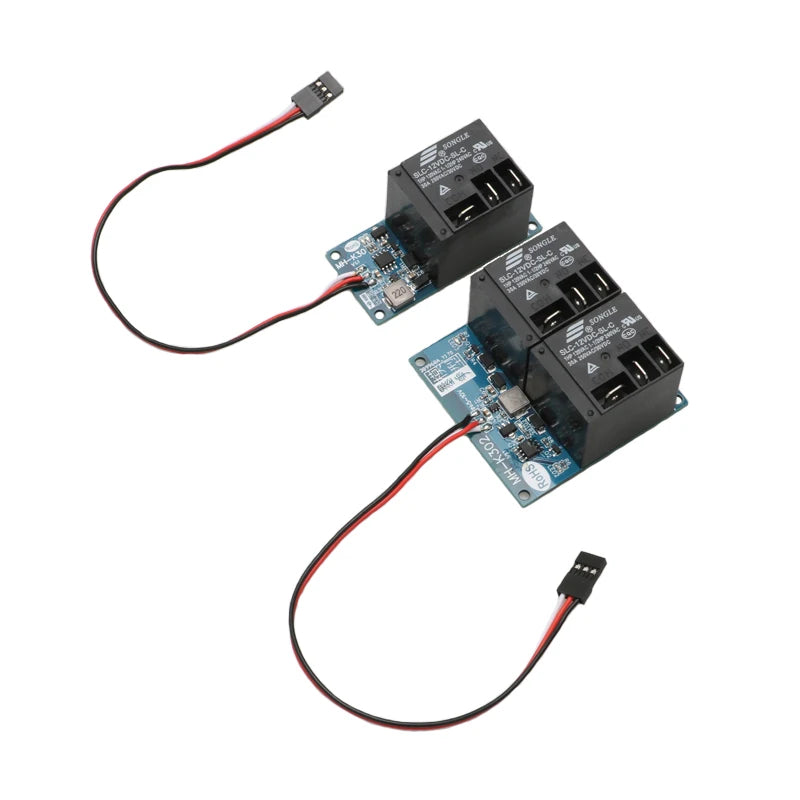

- 1CH relay switch size: length 57.8mm width 27.7mm height 29.5mm, weight: about 40g/pcs

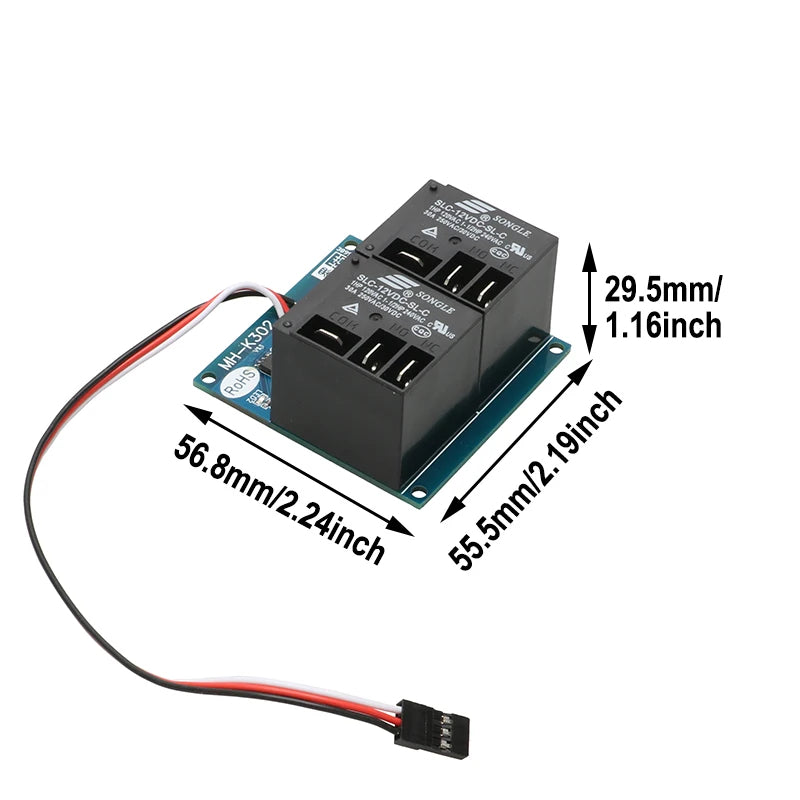

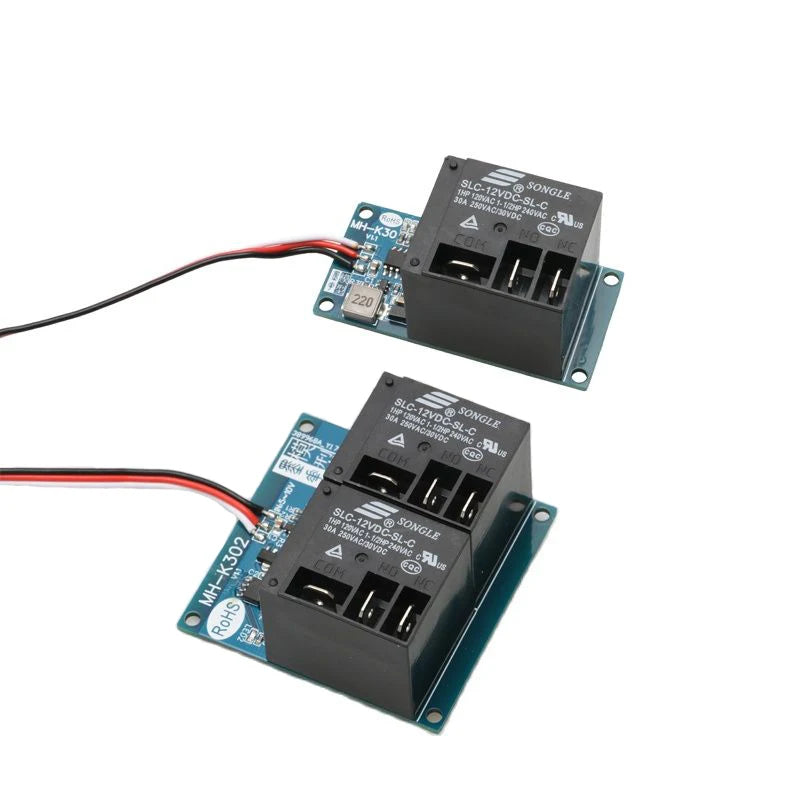

- 2CH relay switch size: length 56.8mm width 55.5mm height 29.5mm, weight: about 74.7g/pcs
- Receiver signal wire 5-10V voltage
Description:
- 1 way steering gear signal input, control 1 way/2 way electronic switch
- 30V maximum controlled voltage
- The controlled end supports 30A 250VAC/30VDC( can connect 250w motor)
- 2-way output (only one relay at a time)
- Compatible with all brands of remote control equipment without calibration
- Three-stage switching channel / proportional channel control
Application Range:
- Remote control model rocket launch
- Remote control model smoke control
- The weapon system control of the real machine
- Model aircraft navigation light control
- Control of various remote switching systems
Functional Description:
- The remote switch remotely controls up to 2 channels of electrical equipment on the aircraft model through a switch channel on the remote control
- This equipment does not need to be calibrated, can accurately compatible with various brands of remote control equipment.
- The equipment is powered by a receiver, completely isolated from the external power supply. The external power supply is only supplied to the controlled equipment.
Typical Applications
1. Connection
Insert the signal input cable into the three-segment switch channel or rocker channel of the receiver, which corresponds to the remote control.

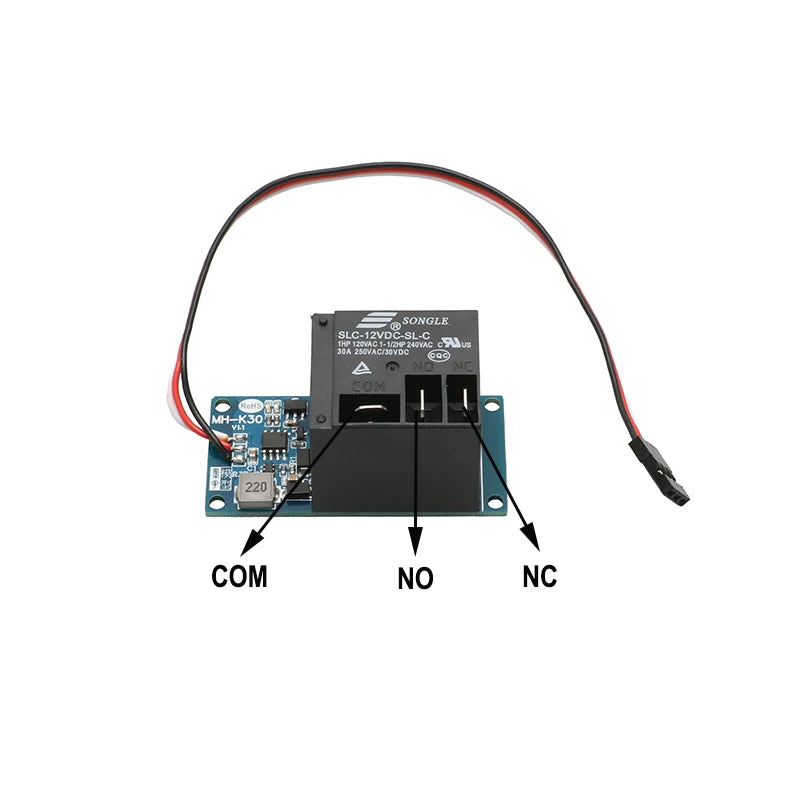

Connect the control switch to the device
2. Trigger

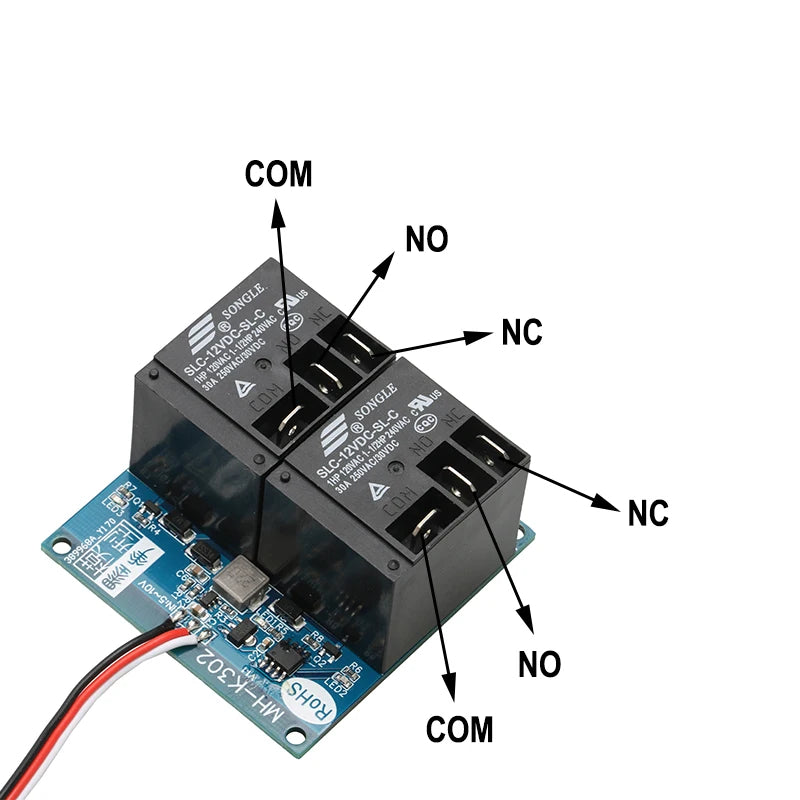

- (take the throttle channel as an example) the throttle remote lever on the remote control is moved to full throttle, and a relay is closed (that is, the common end and the normal start wiring are connected, and the common end and the normally closed end are disconnected). When the throttle lever on the remote control is moved to the half throttle, both relays are not closed (that is, the common end and the normal start are disconnected, and the common end and the normal closed end are connected). Set the throttle lever on the remote control to the minimum throttle, and the other relay is closed (i.e., the common end and the normal start wiring are connected, and the common end and the normally closed end are disconnected).
- (take the three-section switch channel as an example) set the three-section switch on the remote control to a high position, and a relay is closed (that is, the common terminal and the normally open terminal are connected, and the common terminal and the normally closed terminal are disconnected). Move the three-section switch on the remote control to the middle position, and neither of the two relays will operate (that is, the common end and the normal start are disconnected, and the common end and the normally closed end are connected). Move the three-section switch on the remote control to the low position, and the other relay is closed (that is, the common end and the normal start wiring are connected, and the common end and the normally closed end are disconnected).
Note:
- there exsits errors as manual measurements.
Package include:

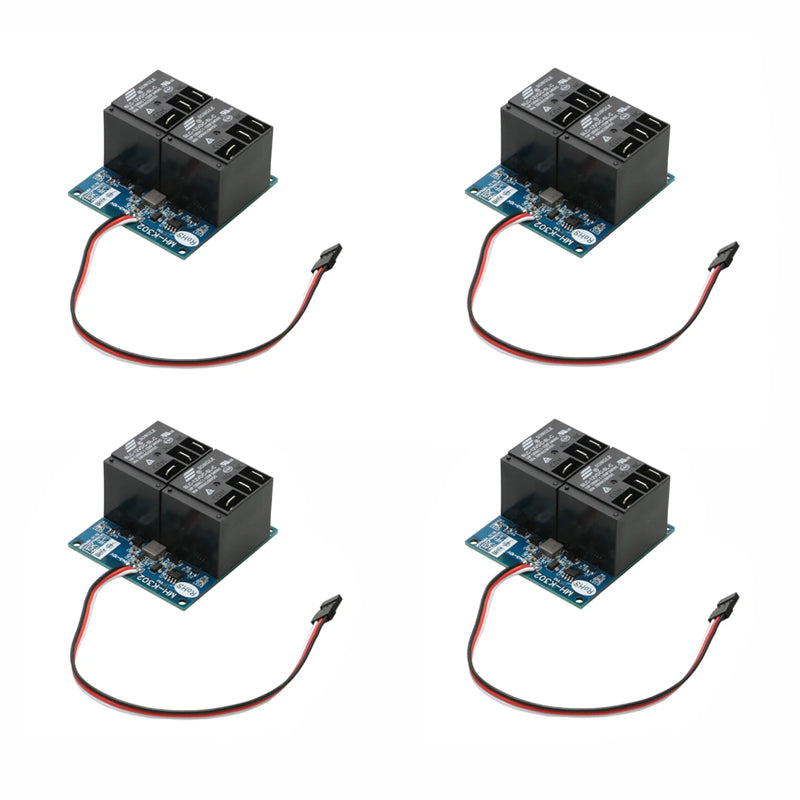

4pcs x relay switch
- 1CH relay switch size: length 57.8mm width 27.7mm height 29.5mm, weight: about 40g/pcs
- 2CH relay switch size: length 56.8mm width 55.5mm height 29.5mm, weight: about 74.7g/pcs
- Receiver signal wire 5-10V voltage
Description:
- 1 way steering gear signal input, control 1 way/2 way electronic switch
- 30V maximum controlled voltage
- The controlled end supports 30A 250VAC/30VDC( can connect 250w motor)
- 2-way output (only one relay at a time)
- Compatible with all brands of remote control equipment without calibration
- Three-stage switching channel / proportional channel control
Application Range:
- Remote control model rocket launch
- Remote control model smoke control
- The weapon system control of the real machine
- Model aircraft navigation light control
- Control of various remote switching systems
Functional Description:
- The remote switch remotely controls up to 2 channels of electrical equipment on the aircraft model through a switch channel on the remote control
- This equipment does not need to be calibrated, can accurately compatible with various brands of remote control equipment.
- The equipment is powered by a receiver, completely isolated from the external power supply. The external power supply is only supplied to the controlled equipment.
Typical Applications
1. Connection
Insert the signal input cable into the three-segment switch channel or rocker channel of the receiver, which corresponds to the remote control.
Connect the control switch to the device
2. Trigger
- (take the throttle channel as an example) the throttle remote lever on the remote control is moved to full throttle, and a relay is closed (that is, the common end and the normal start wiring are connected, and the common end and the normally closed end are disconnected). When the throttle lever on the remote control is moved to the half throttle, both relays are not closed (that is, the common end and the normal start are disconnected, and the common end and the normal closed end are connected). Set the throttle lever on the remote control to the minimum throttle, and the other relay is closed (i.e., the common end and the normal start wiring are connected, and the common end and the normally closed end are disconnected).
- (take the three-section switch channel as an example) set the three-section switch on the remote control to a high position, and a relay is closed (that is, the common terminal and the normally open terminal are connected, and the common terminal and the normally closed terminal are disconnected). Move the three-section switch on the remote control to the middle position, and neither of the two relays will operate (that is, the common end and the normal start are disconnected, and the common end and the normally closed end are connected). Move the three-section switch on the remote control to the low position, and the other relay is closed (that is, the common end and the normal start wiring are connected, and the common end and the normally closed end are disconnected).
Note:
- there exsits errors as manual measurements.
Package include:
4pcs x relay switch
