Specification:

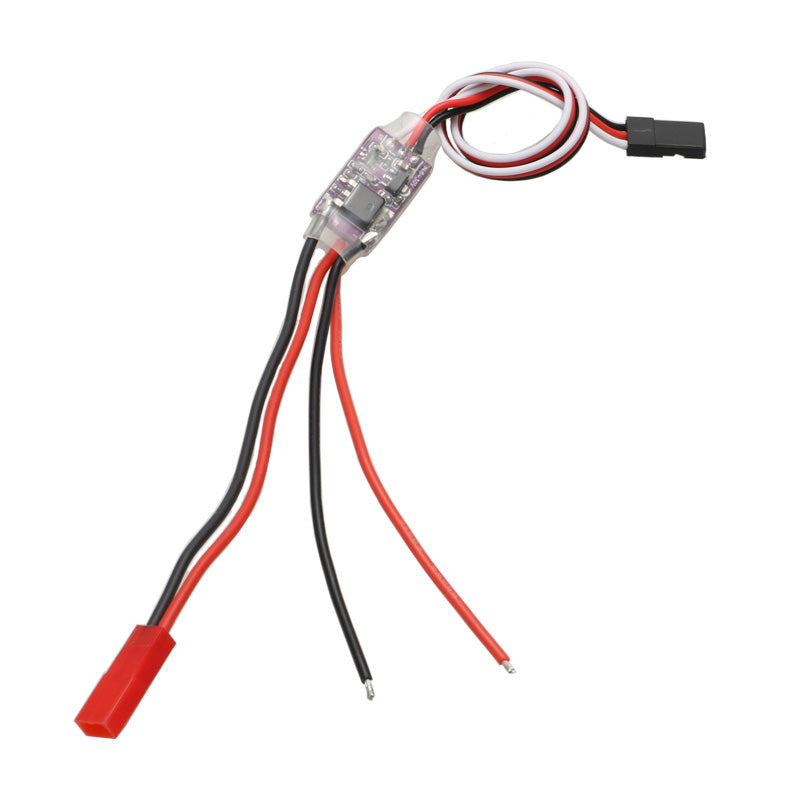

- Item name: electronic switch module
- Working voltage: 6V-30V
- Maximum current: 10A
- Support 5V-30V battery
- Can't power supply for receiver
- With power-on protection
- Without signal protection
- Used for RC drone model airplane
Control mode:
- Two-stage fluctuation switch channel:
OFF: low 1000us
Conduction: high 2000us
LED indicator light:
- Red light always on: work normal
- Red light flashing: without signal
- Blue light on: switch on
- Blue light off: switch off
Application:
- LED light remote control switch
- Occasions requiring switch control
- Power supply connection and disconnection
Note:
- The electronic switch is not suitable for receiver power supply
- The RC switch comes with power-on protection and no signal protection, using 80A tube, working voltage is powered by below 10A
- Please strengthen the heat dissipation by yourself if the current is greater than 10A
- Size is manual measurement, there are exsit errors.

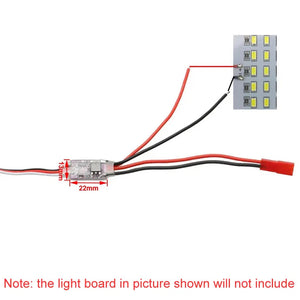

- The light board in picture shown will not include.
- Due to unavoidable factors such as monitor, shooting angle, light source, etc., the color in the picture may have a very slight color difference with the goods you receive. Everything is subject to the goods you receive.
Package include:

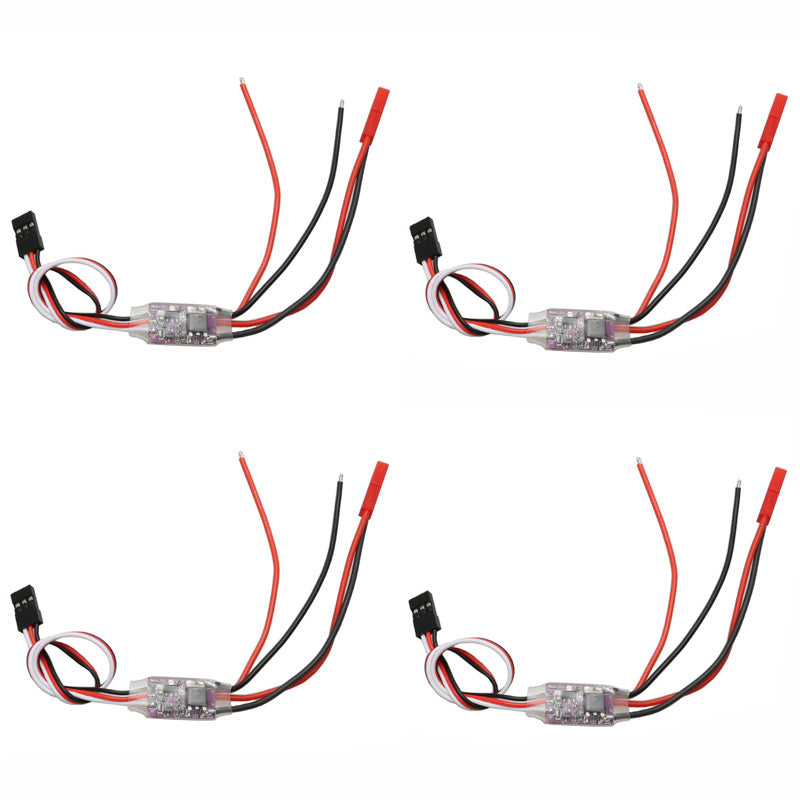

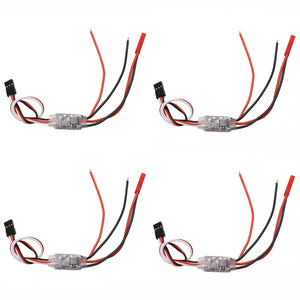

4pcs x electronic switch module
