Specification:

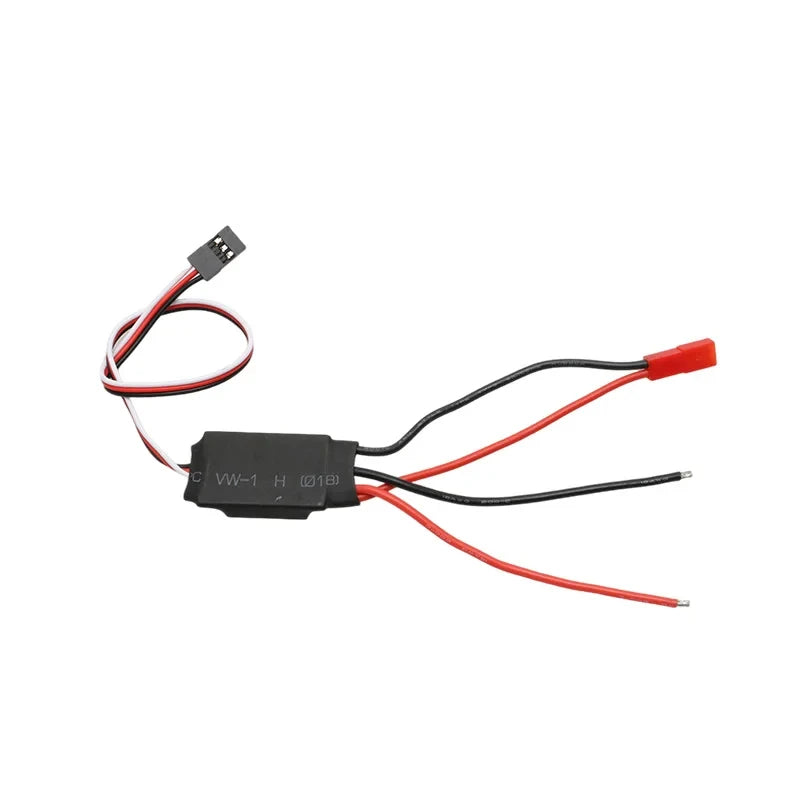

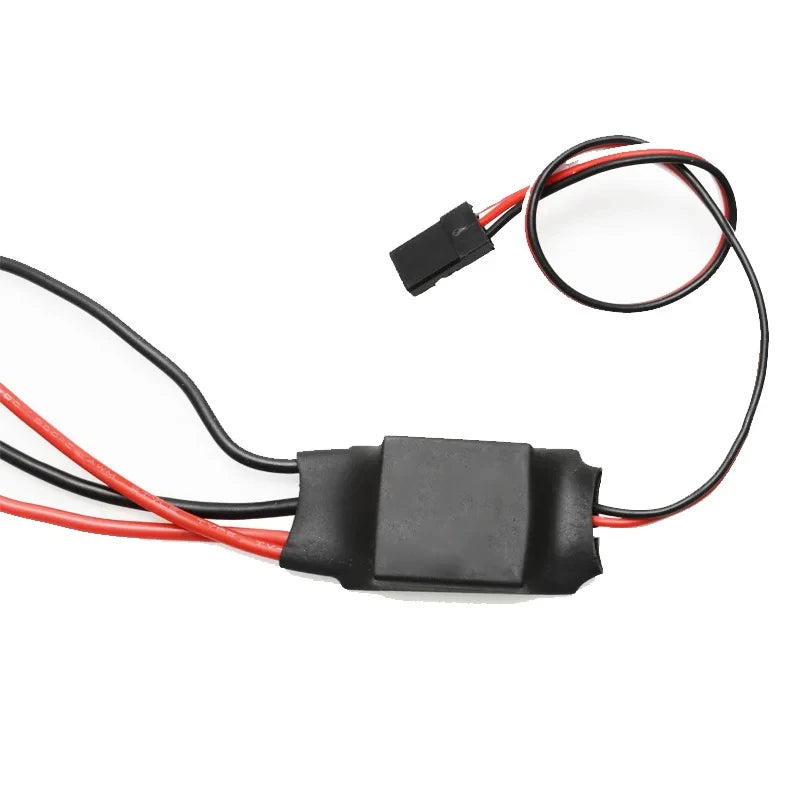

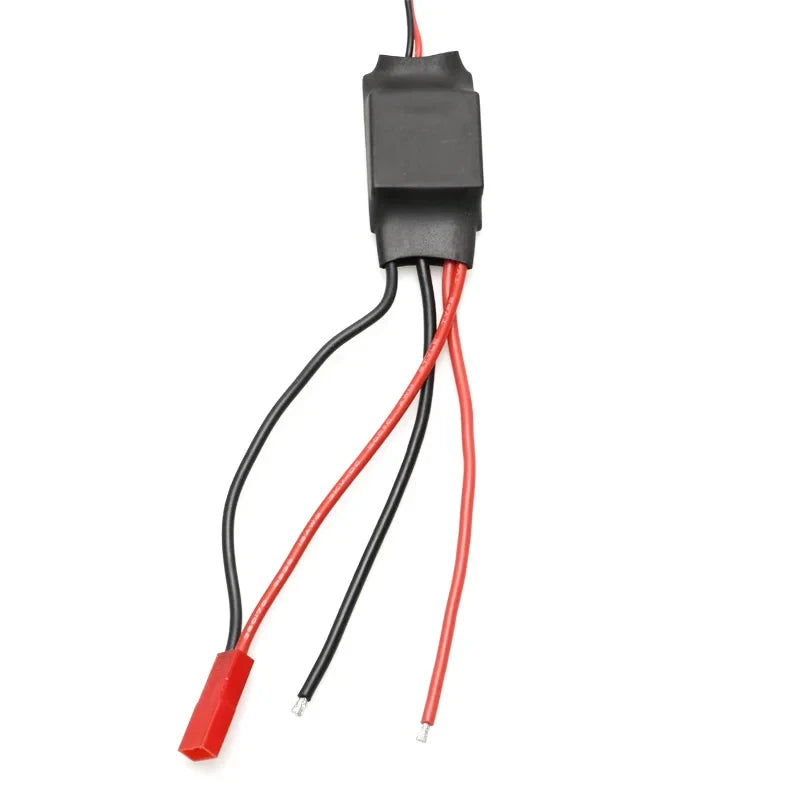

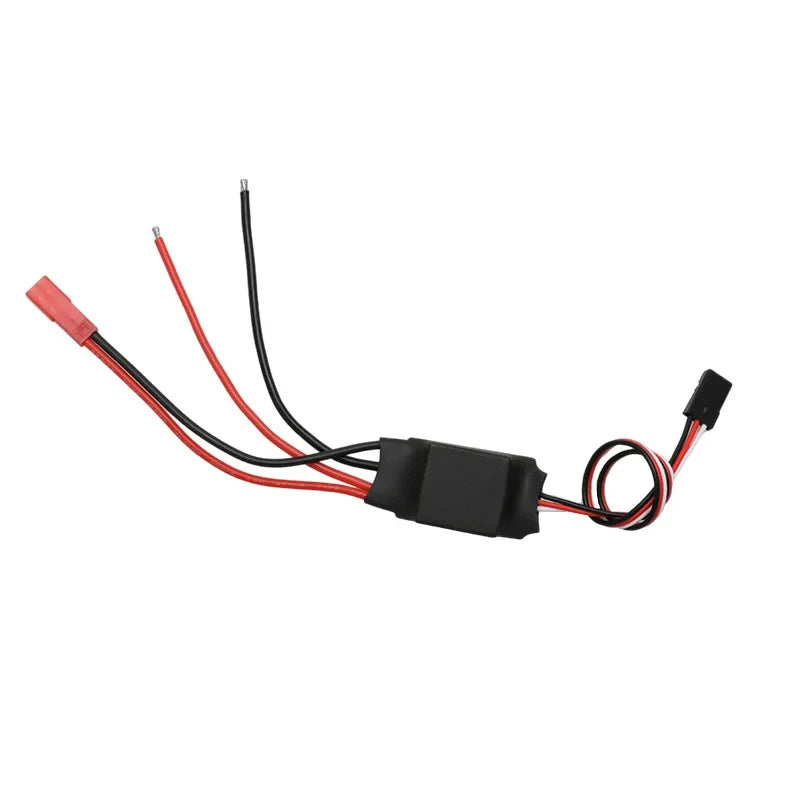

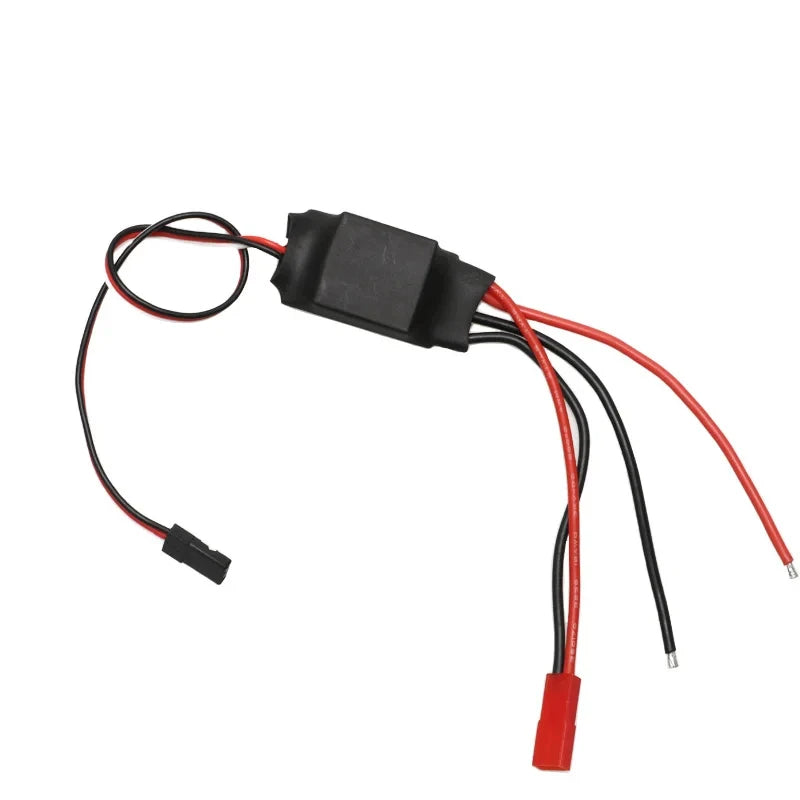

- Item name: CH1-H RC electronic switch
- Working voltage: 6V-30V
- Max current: 20A
- BEC output: no
- Support 5V-30V Battery
- Isolated design, with power-on protection
- Without signal protection
Control mode:
- Two-stage fluctuation switch channel
- Off: low position 1000us
- Conduction: high 2000us
Application:
- LED light remote control switch
- Occasions requiring switch control
- Power supply connection and disconnection
Note:
- The rc electronic switch is not suitable for receiver power supply.
- The rc switch comes with power-on protection and no signal protection, using 120A tube, working voltage is powered by below 20A.
- Please strengthen the heat dissipation by yourself if the current is greater than 20A
- Due to unavoidable factors such as monitor, shooting angle, light source, etc., the color in the picture may have a very slight color difference with the goods you receive. Everything is subject to the goods you receive.
- Size is manual measurement, there are exist errors.

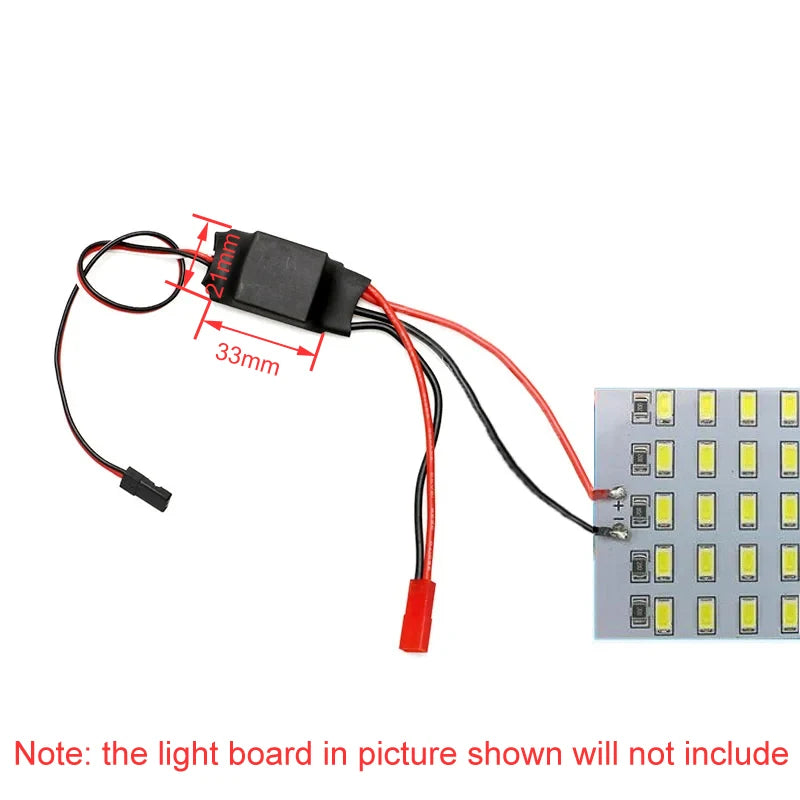

- The light board in picture shown will not include.
Package included:

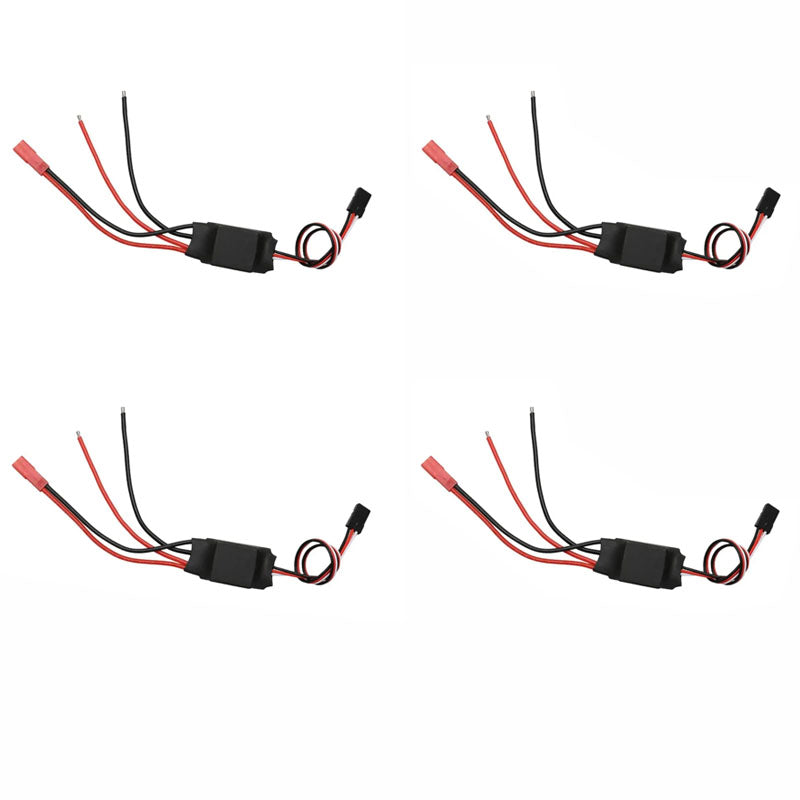

4pcs x electronic switch
