Specification:

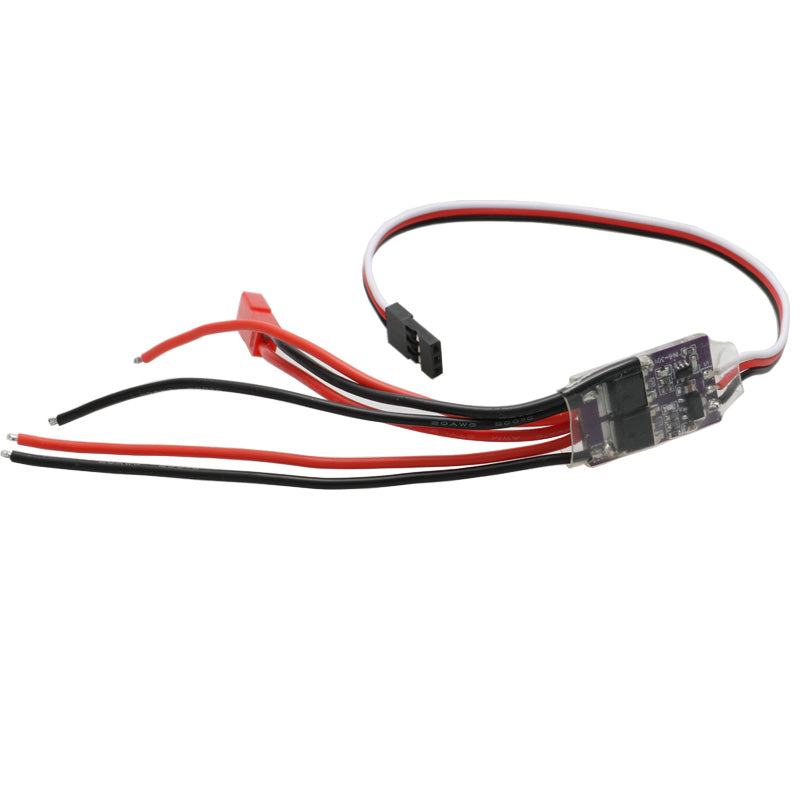

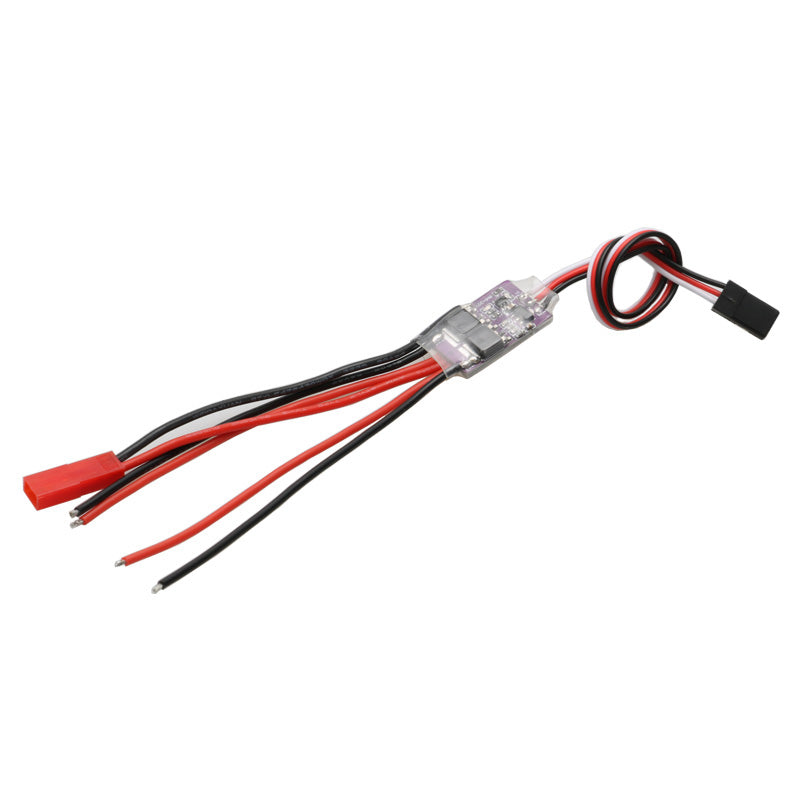

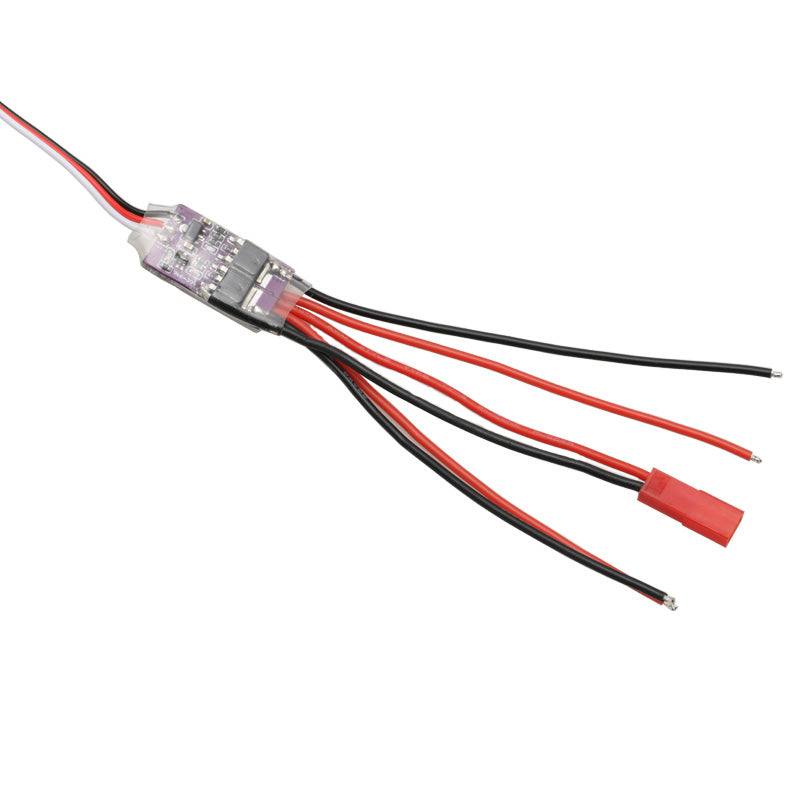

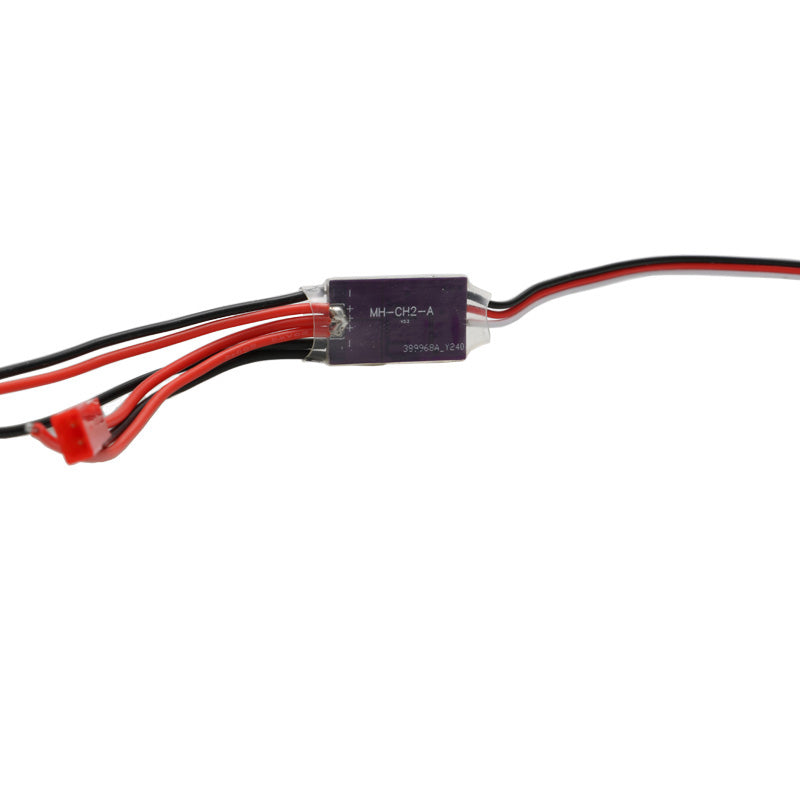

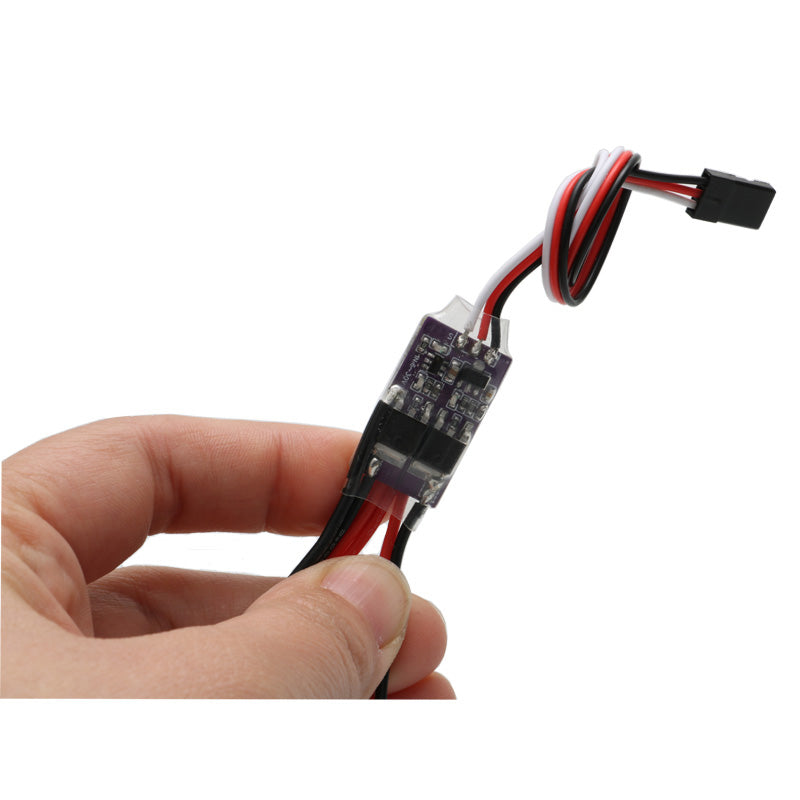

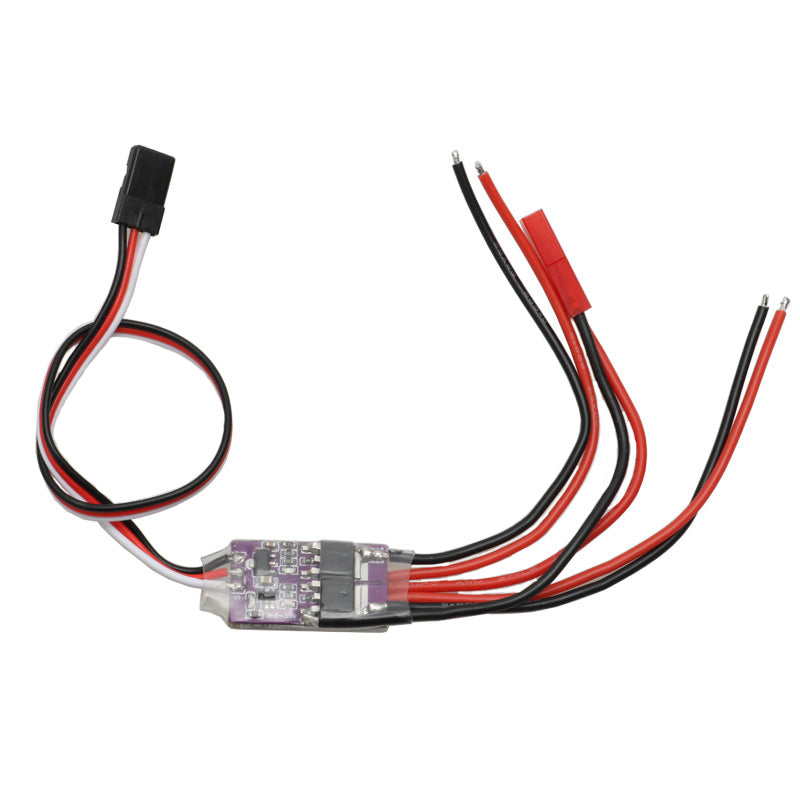

- Item name: CH2 electronic switch(with indicator light)
- Working voltage: 6-30V
- Maximum current: 10A
- BEC output: no
- Support 5-30V battery
- Can't power supply for receiver
- With power-on protection, only at the medium position can enter the system
- Without signal protection
Control mode: (Three-stage fluctuation switch channel)
- The other channel work: low position 1000us
- Two channels close: medium position 1500us
- One channel work: high position 2000us
LED indicator light:
- Red light always on: work normal
- Red light flashing: without signal
- Blue light on: switch on
- Blue light off: switch off
Application:
- LED light remote control switch
- Occasions requiring switch control
- Power supply connection and disconnection
Note:
- Size is manual measurement, there are exsit errors.
- The light board in picture shown will not include.
- The electronic switch is not suitable for receiver power supply .
- The RC switch comes with power-on protection and no signal protection, using 80A tube, working voltage is powered by below 10A .
- Please strengthen the heat dissipation by yourself if the current is greater than 10A .
- Only one channel works at the same time, and the blue led light with indicator light is on .
- Due to unavoidable factors such as monitor, shooting angle, light source, etc., the color in the picture may have a very slight color difference with the goods you receive. Everything is subject to the goods you receive.
Package include:

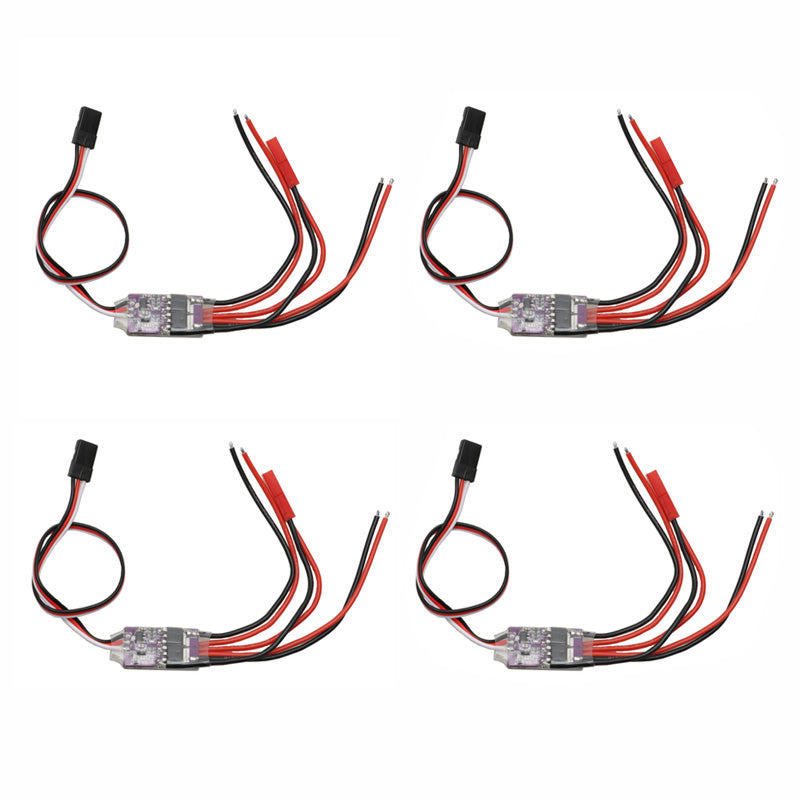

4pcs x relay switch module
