Product features:
- High resolution, high brightness OLED color screen, 7-speed brightness adjustment.
- Wireless communication between screen and motherboard for convenient layout.
- Exclusive support for airspeed display.
(The airspeed meter is not include in the package. Only support digital airspeed meter MS4525DO-DS5AI001DP and pressure sensor 4525DO-001DP)
- Exclusive posture algorithm, more accurate in posture compared to similar products!
- Supports pressure altitude and display of rise and fall rates.
- Home direction guidance, distance display from home (non autonomous return).
- Dynamic voltage range display.
- Flight data statistics.
- SBUS input, remote control screen switching, and related functions.
- Throttle position prompt, landing gear, flap prompt.
- User defined settings, including modifying channel number, channel forward and reverse, left and right throttle display, etc.
- Match a 3D printed instrument frame.
- Comes with a distribution board for convenient power supply to screens, graphics, and fans.
- The screen comes with an independent display chip, ensuring smooth animation. The motherboard integrates necessary sensors without the need for flight control. Suitable for DIY of various fixed wing aircraft models with lifelike cockpits. The interface design concept is based on real flight instruments, serving instrument flight. Visualize system parameter settings.
Specification:
- Item name: color screen flight instrument
- Motherboard size: 51x37mm
- Instrument frame size: 70x36mm
- Device weight: within 50g
2 types for your refer:
- MPH with FEET: MPH is a speed measurement unit specifically used in the United States and the United Kingdom, and Feet is a unit of height
- KMH with Meter: KMH is a speed measurement unit used in other countries, and Meter is a unit of height
(If you are not sure which option to buy, you can consult our customer service to avoid making a wrong purchase.)
Attention:
- The pin arrangement of GPS from different brands may vary. Please connect the wires according to the wiring diagram(The pin sequence in this picture is the GPS provided by our store). Compatible with most NMEA0183 serial port protocols for GPS.
- Pay attention to protecting the top pins of the distribution board to prevent battery short circuits!
- Input voltage:
Please use 5V to power the device. If the input is higher than 5V, the airspeed meter and GPS will be damaged or lost!
- GPS function:
This product does not have autonomous navigation and return function! Only provide relevant return instructions, ground speed, and other information. Please pay attention to the remote control distance to avoid losing control.
- SBUS input:
The SBUS signal input is used for remote control of the main screen page flipping (refer to the setup instructions), and short pressing the onboard button is ineffective at this time. When there is no SBUS input, short press the onboard button to flipping page of the main screen.
- Avoid water ripples:
The sky end camera can be equipped with an ND filter (No. 8), with a shutter speed set between 1/200 and 1/80 seconds, and the ISO value manually adjusted to achieve normal exposure. A camera without manual exposure function can be equipped with an ND filter (No. 16) with polarization function.
- Compass interference:
Try to keep the motherboard away from the power cord of the power battery as much as possible to avoid strong current interference with the compass during high throttle, which may affect the accuracy of heading.
Note:
- Size is manual measurement, there are exist errors.
- The receiver, battery, airspeed meter, airspeed tube and others in picture/video shown will not include.
Package include:

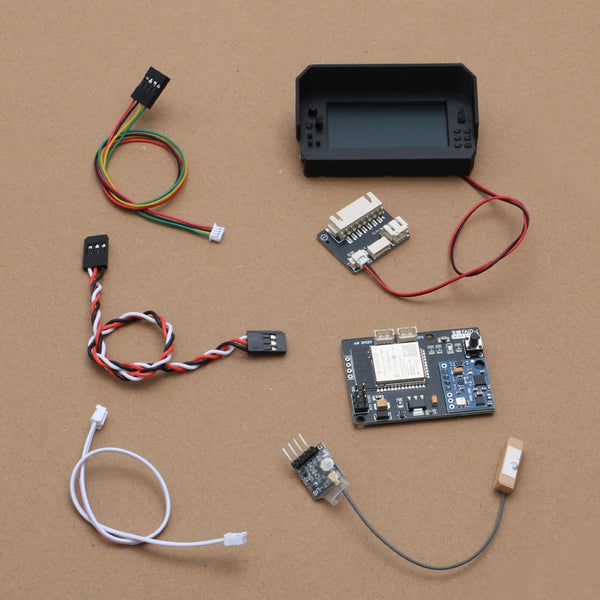

1set x GPS kit (1pcs x main control board, 1pcs x color screen, 1pcs x GPS module, 1pcs x distribution board (with wire), 1pcs x 3D printed instrument frame)
