Specification:

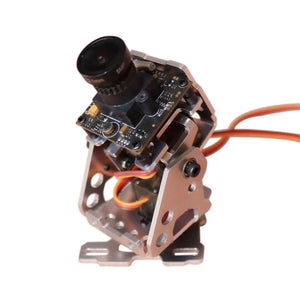

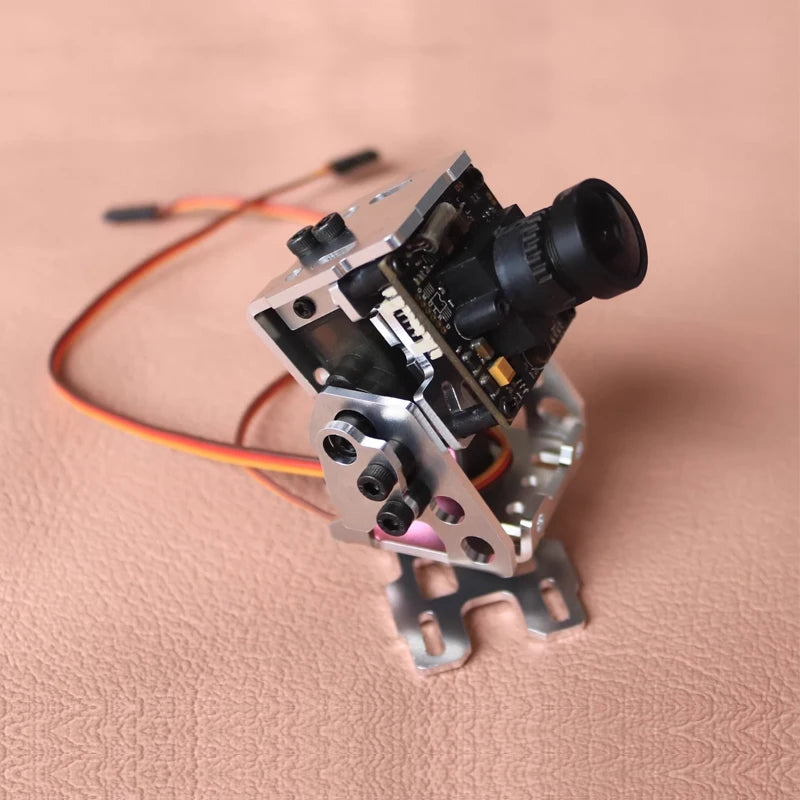

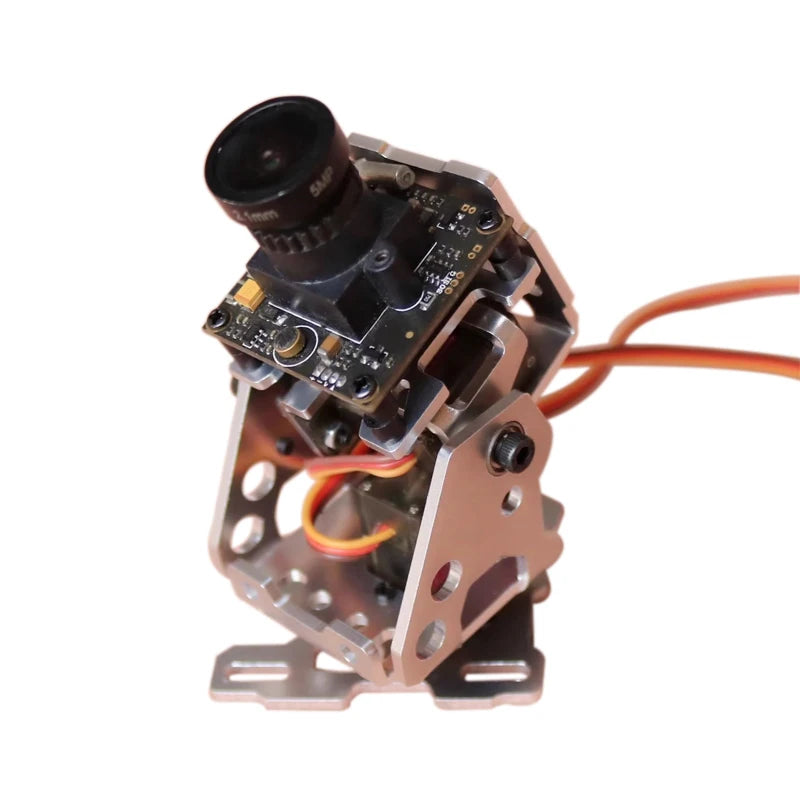

- Item name: gimbal bracket
- Base size: 51.31mm x 33.43mm
- Base hole installation size: hole pitch length width adjustable (44-29)mm x 22mm
- Camera installation size: hole pitch length width adjustable (22-28)mm x (22-28)mm
- Gimbal bracket size: 67mm(height) x 44mm(width) x 55mm(length)
- Material: lightweight aluminum alloy
- Servo type: full metal gear
- Servo working voltage: DC 4.8-5V
- Gimbal camera bracket compatible with multiple hole pitches,can install camera that hole pitch is length(22-28)mm x width(22-28)mm
Servo Pin:
- Brown wire:5V -
- Red wire:5V +
- Yellow wire:PWM input
Note:

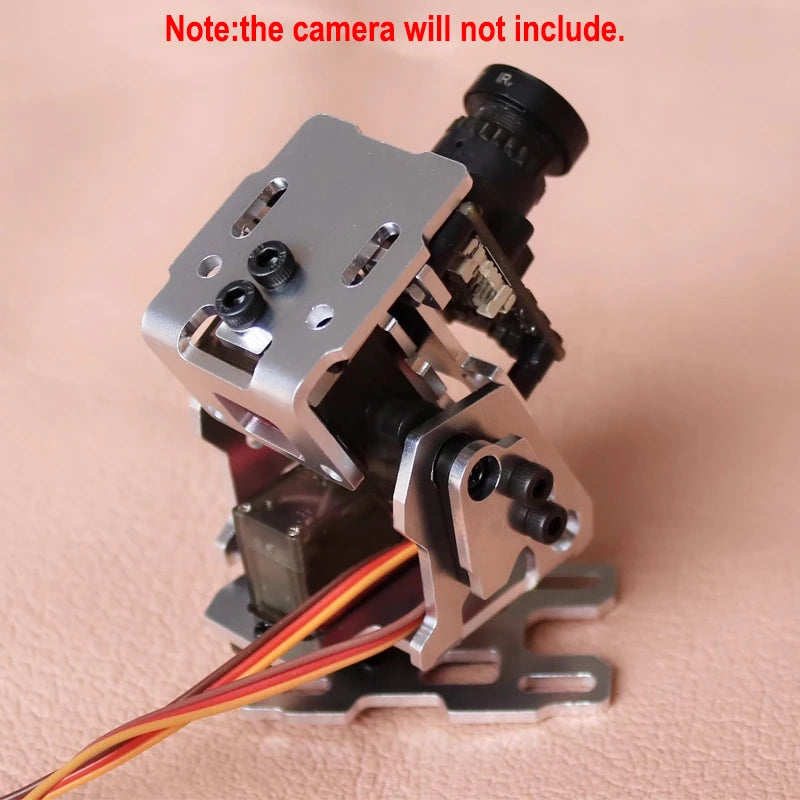

1.The camera will not include.
2.This product is in bulk, you need to assemble it yourself.
3.The product may have slight color difference.
4.Don't use your hands to forcefully break the angles of the two servos!Excessive force can easily cause damage and gear sweep to the servos!
5.If you need installation instructions, please contact our customer service personnel.

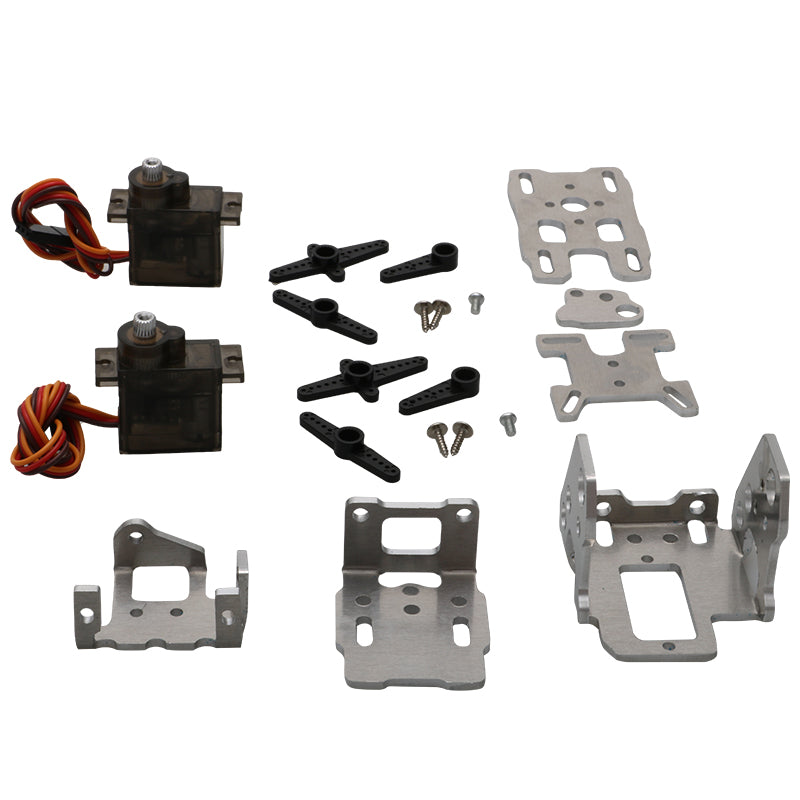

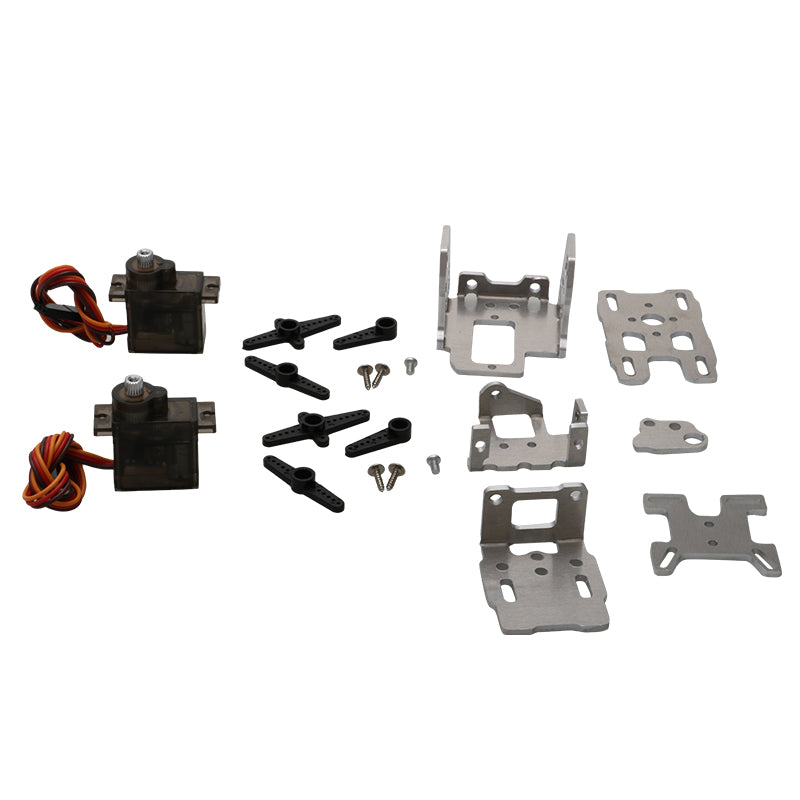

Package include:
1set x gimbal bracket

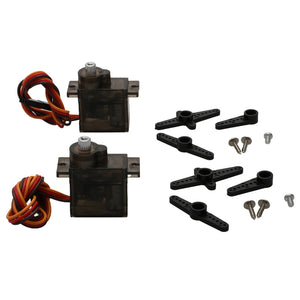

2pcs x servo
