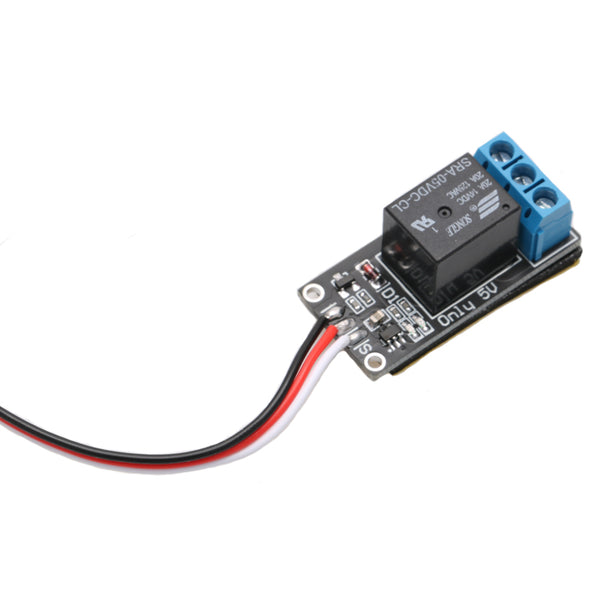

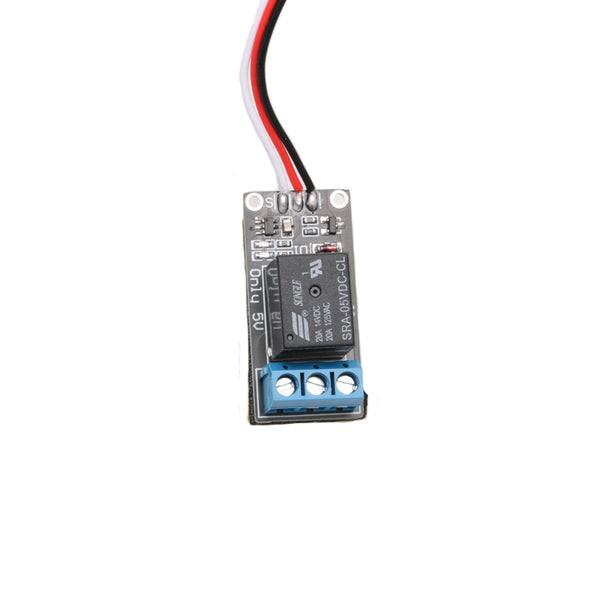

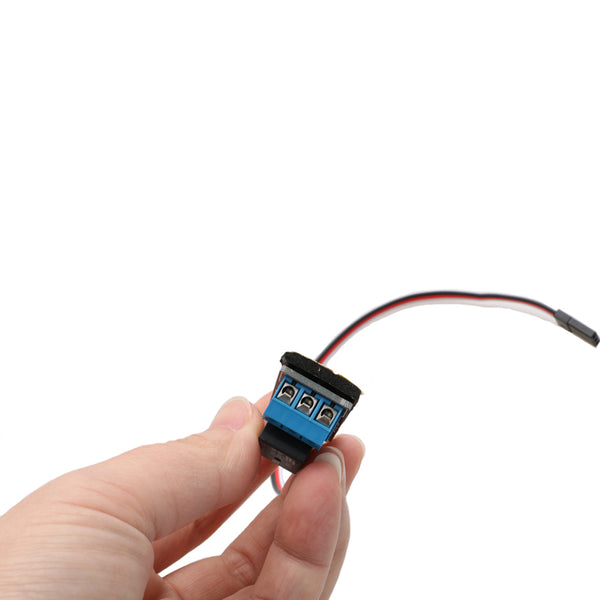

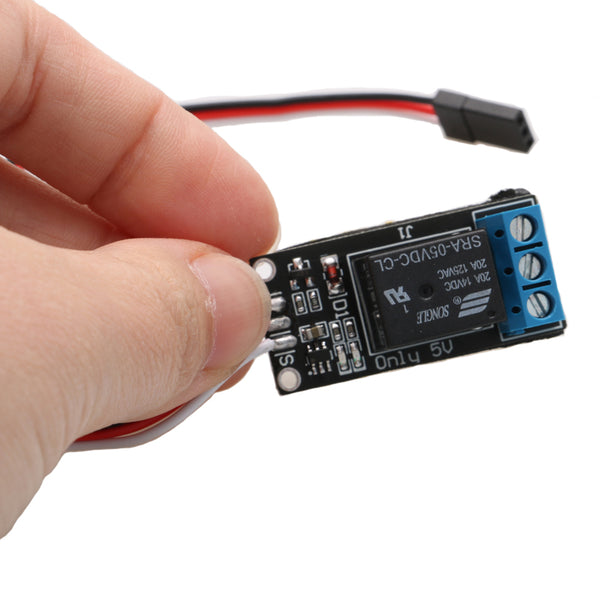

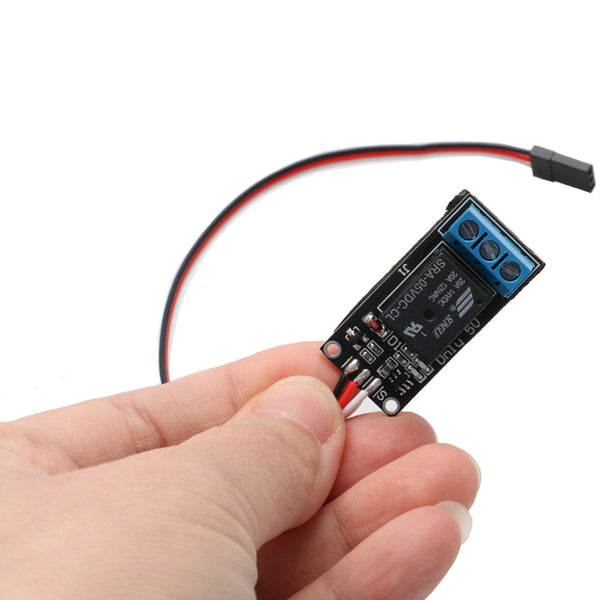

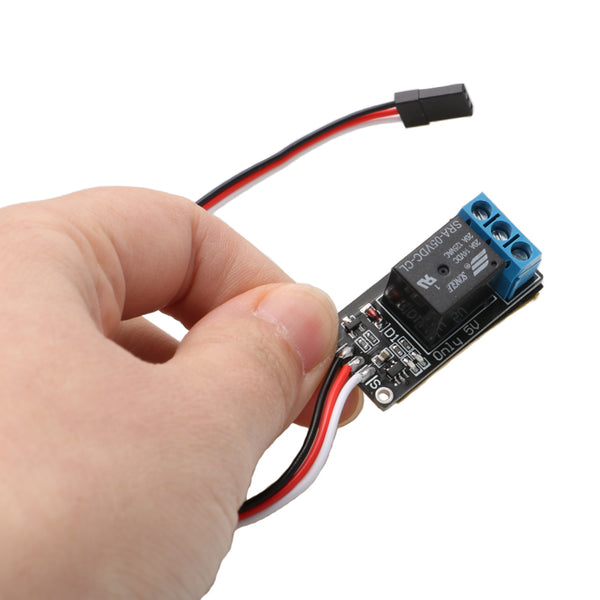

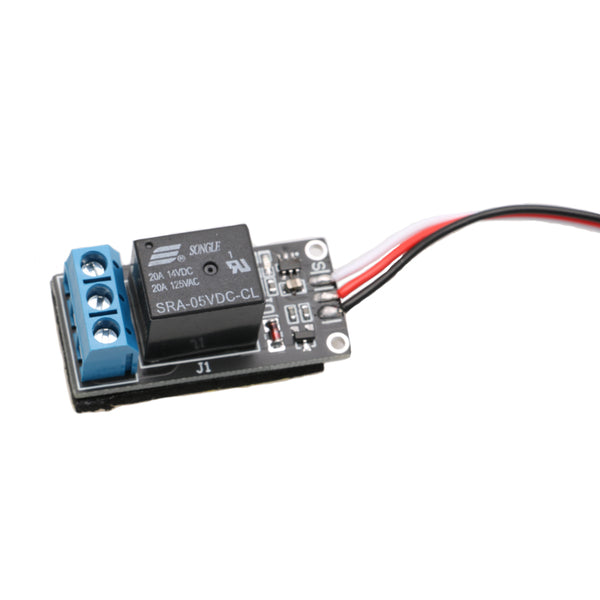

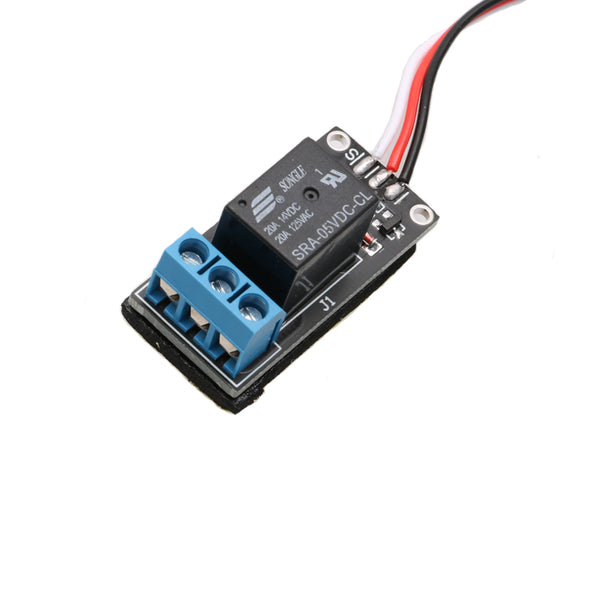

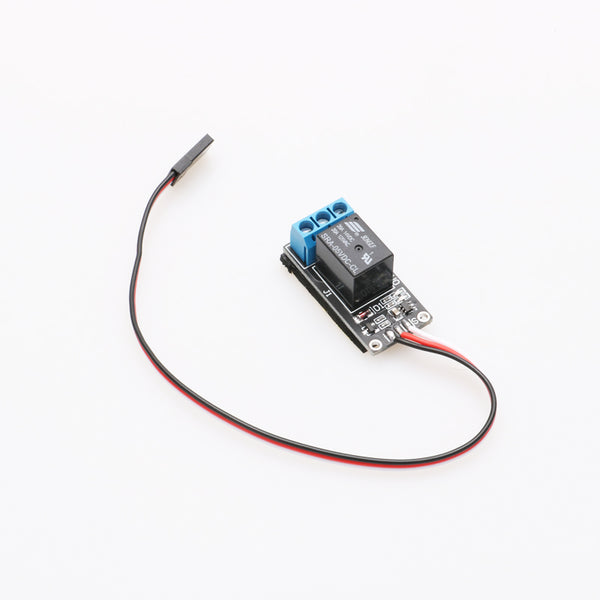

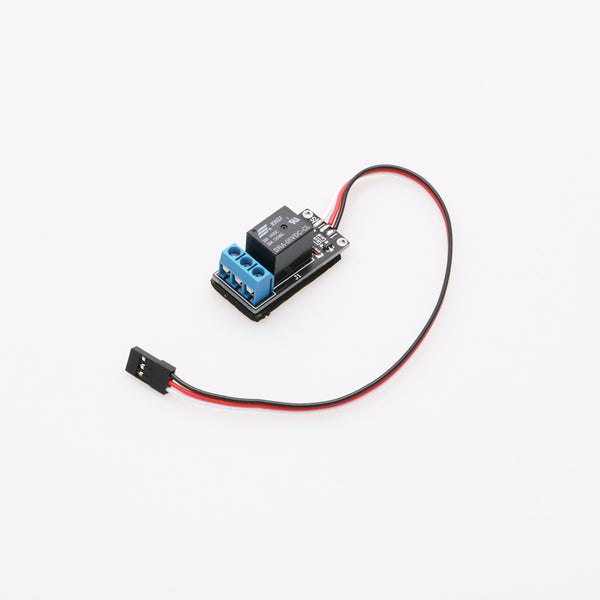

1pcs J1 Remote Control PWM Relay Switch for RC Airplane Model

Regular price $6.99

Shipping calculated at checkout.

1pcs J1 Remote Control PWM Relay Switch for RC Airplane Model



Product Name: RC Realy Switch
Length: 38.5mm
Width: 18mm
Height: 19mm

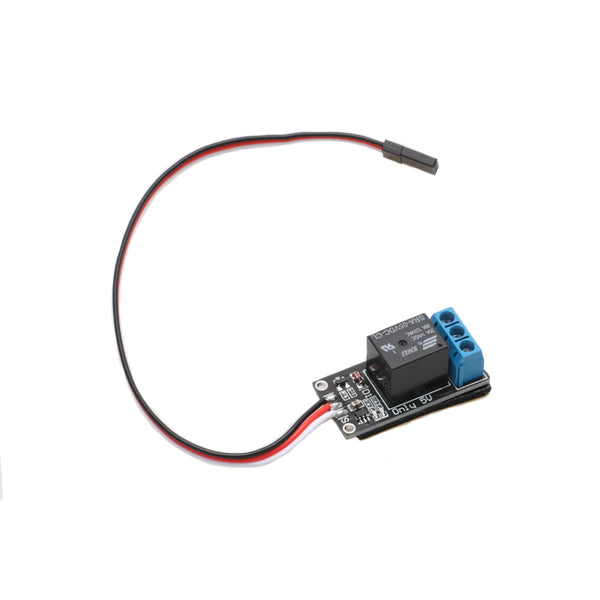

Wire Length: 200mm
Weigth: About 12.5g


-Only supports 5V voltage receiver, otherwise the module may be damaged. If the receiver and steering gear use high voltage system, you should add a step-down module to the module.
-One steering gear signal input, control one electronic switch
-Normally open end supports 20A current
-One LED indicates working status
-With boot protection function, easy to operate
-No need to calibrate the input channel. compatible with remote control equipment

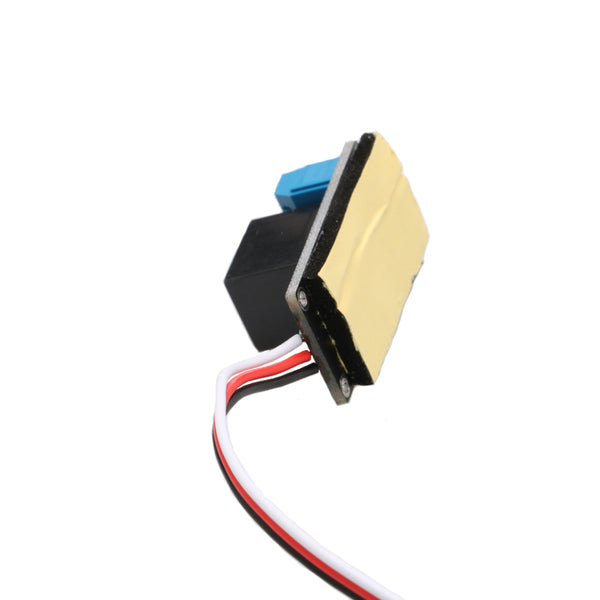

-Adopting double-sided adhesive tape on the back, the appearance is clear at a glance
-Small size and light weight

Scope of Application:

-Remote control model rocket launch
-Remote control model smoke control
-Weapone system control like real machine
-Smoke control of model aircraft
-Control of various remote switch systems
-Switch the signal of the two cameras
-Control the power on and off of various electrical applicances, such as navigation lights, search lights, strobe lights, buzzers, etc.
-Control the camera shutter, or switch the camera's video and camera modes

Function Description:

- The remote switch remotely controls the electrical equipment on the aircraft model through a switch channels on the remote control, and 1 LED dynamically demonstrates the current switch status in real time, so you can quickly get started without an operation manual
-This device does not require calibration and can be accurately compatible with remote control devices of various brands.

Typical Application

1. Connect
Insert the siganl input cable into an idle receiver channel, which corresponds to a switch on the remote control.
When connected to the receiver, the power indicator lights up, on the contrary it is closed.

2. Working mode
The red LED light indicates the power indicator
The blue LED light Indicates the working status of the relay.

3. Trigger
Turn the switch (OFF->On) on the remote, the green LED light is on and the relay starts to work.

Package Included:

1pcs x J1 RC relay switch
