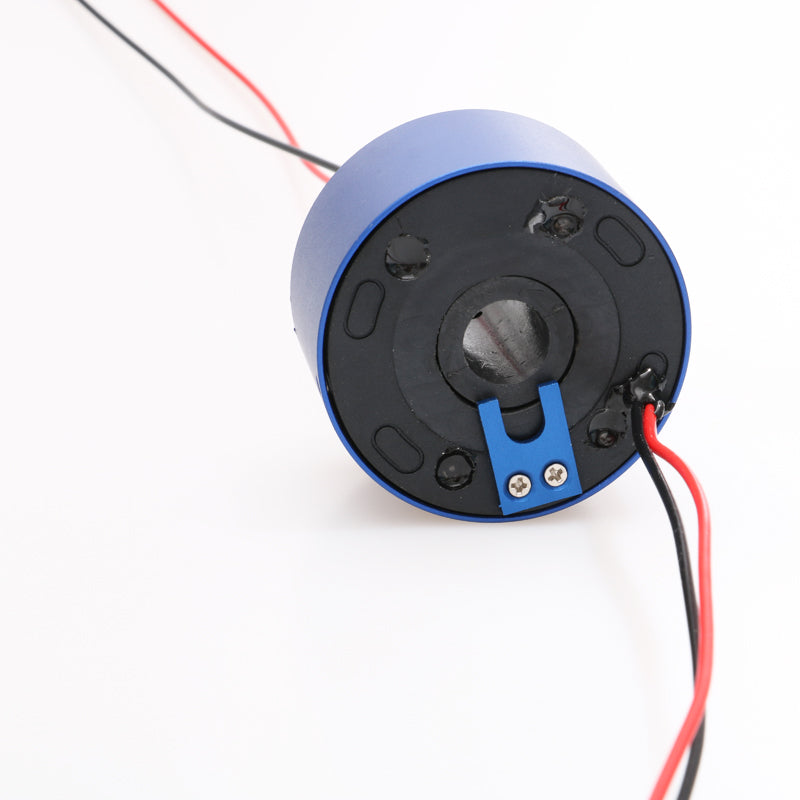

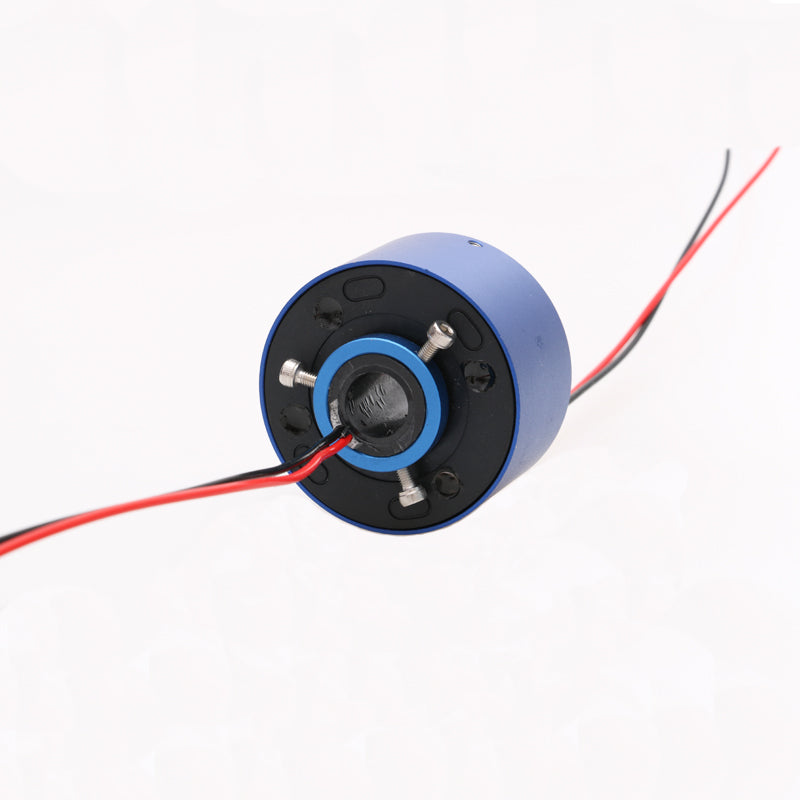

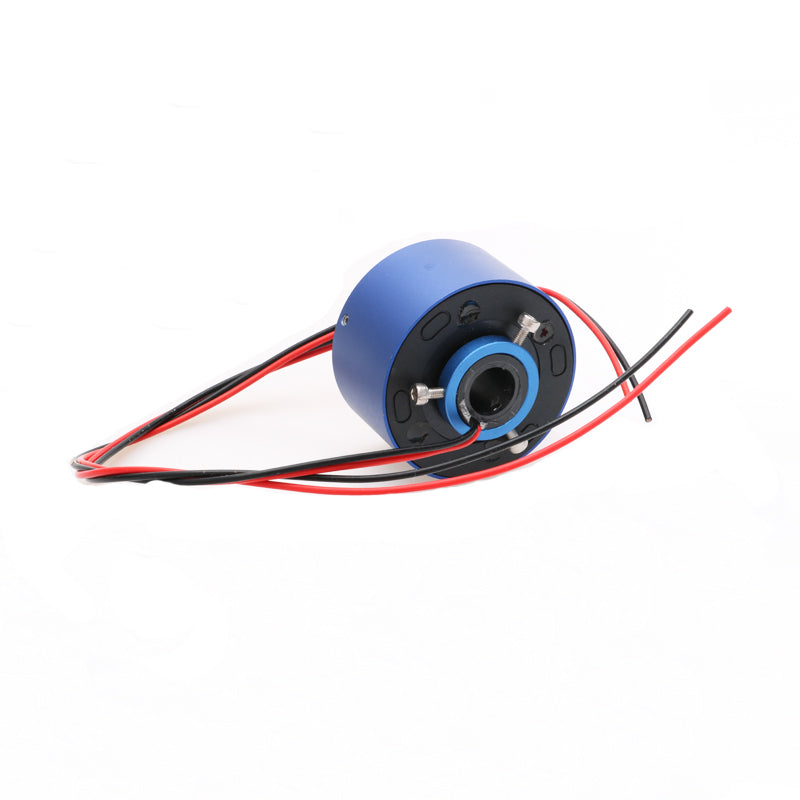

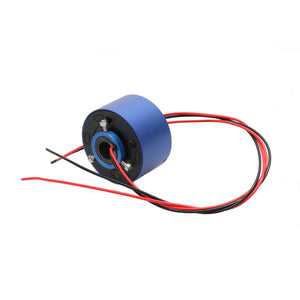

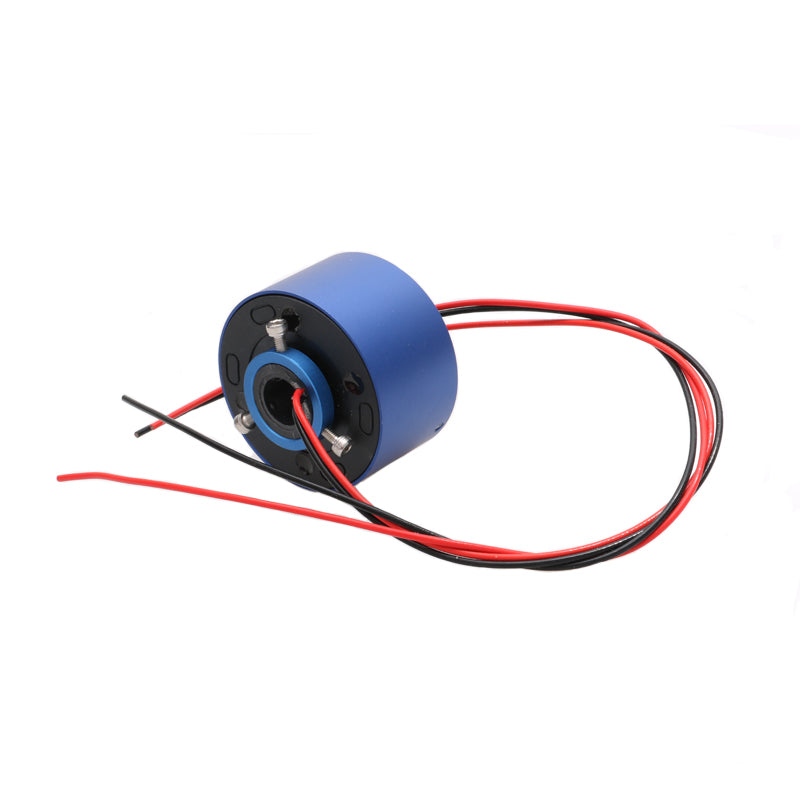

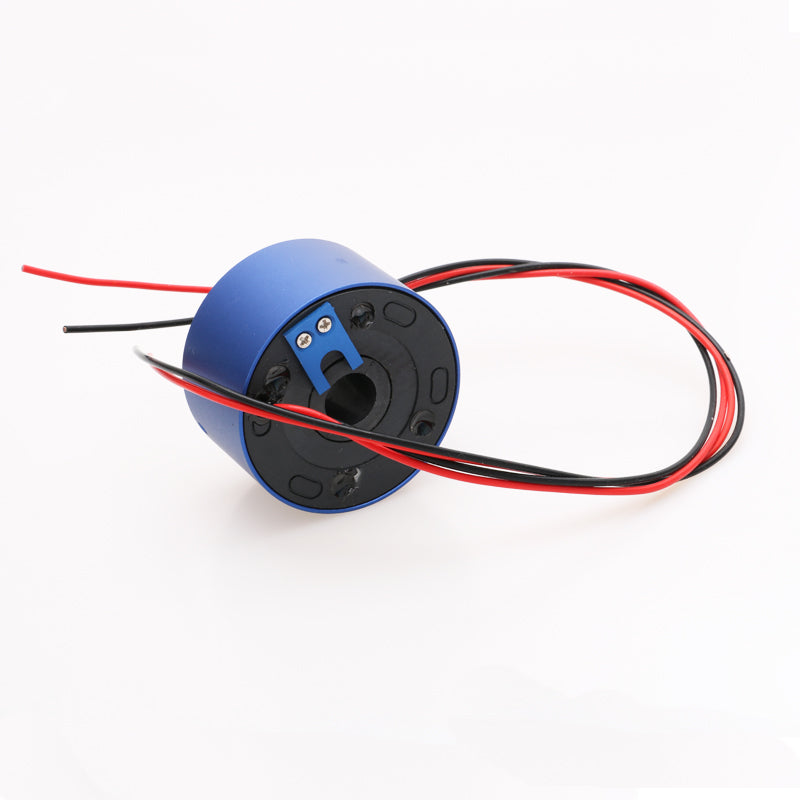

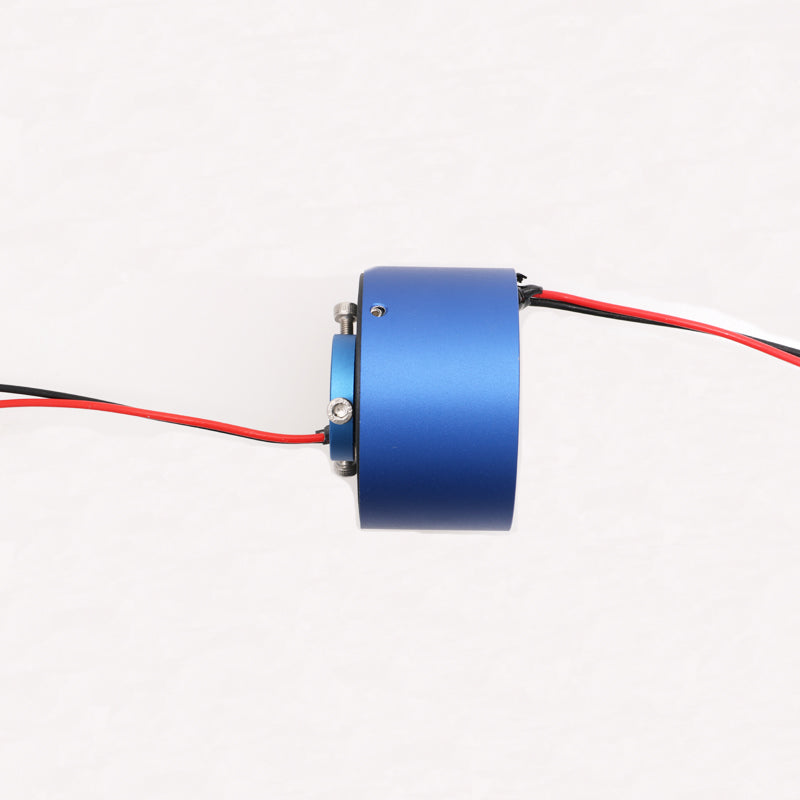

1pcs Dia 54mm 2CH 10A Hollow Shaft Signal Conductive Slip Ring

1pcs Dia 54mm 2CH 10A Hollow Shaft Signal Conductive Slip Ring

Specification:

Hole diameter: 12.7mm

Outdiameter:54mm

RPM:200RPM

Channel: 2Channels

Rated voltage: 220VAC/DC

Current Rating:10A/Channel

Working temperature: -20 - 60°C

Contact Material:golden/golden

Cable:AWG17

Length of cable:250mm for each side

Compressive strength:>=500V@50Hz

Insulation resistance:1000mOhm/500VDC

Protection class:IP54

Working life:>=5000,000 revolutions(up to the environment and speed)

Can be used for Automation equipment, working turntable,Camera Gimbal PTZ,robots,etc




Package included:

1pc x Slip ring
