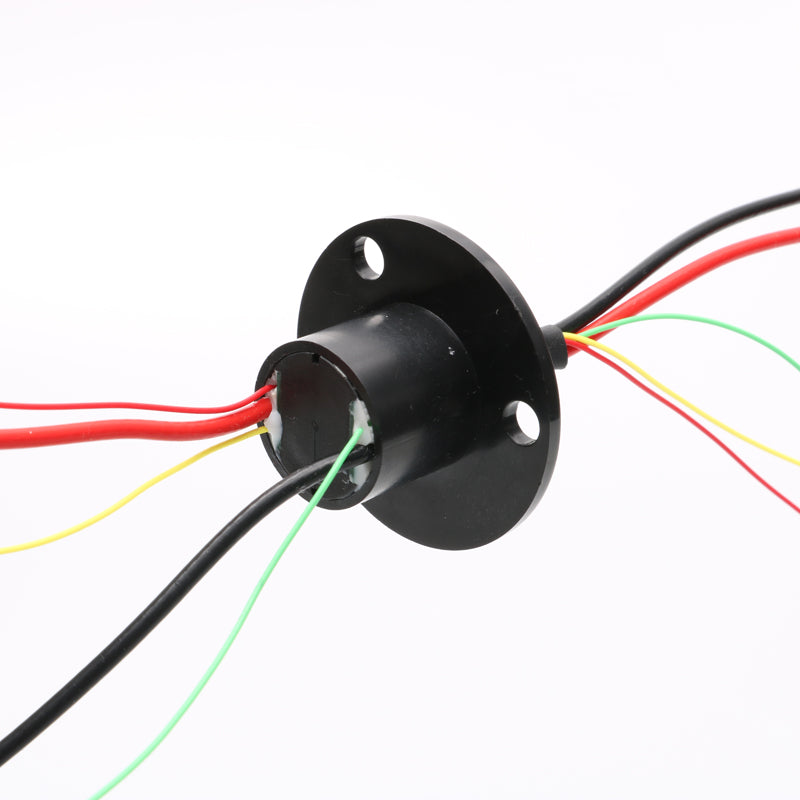

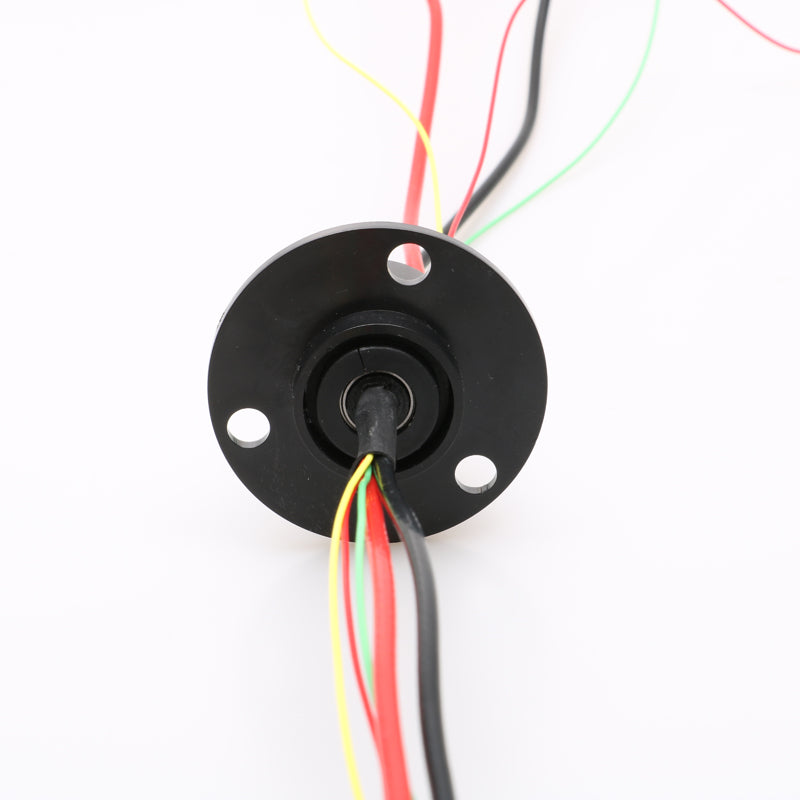

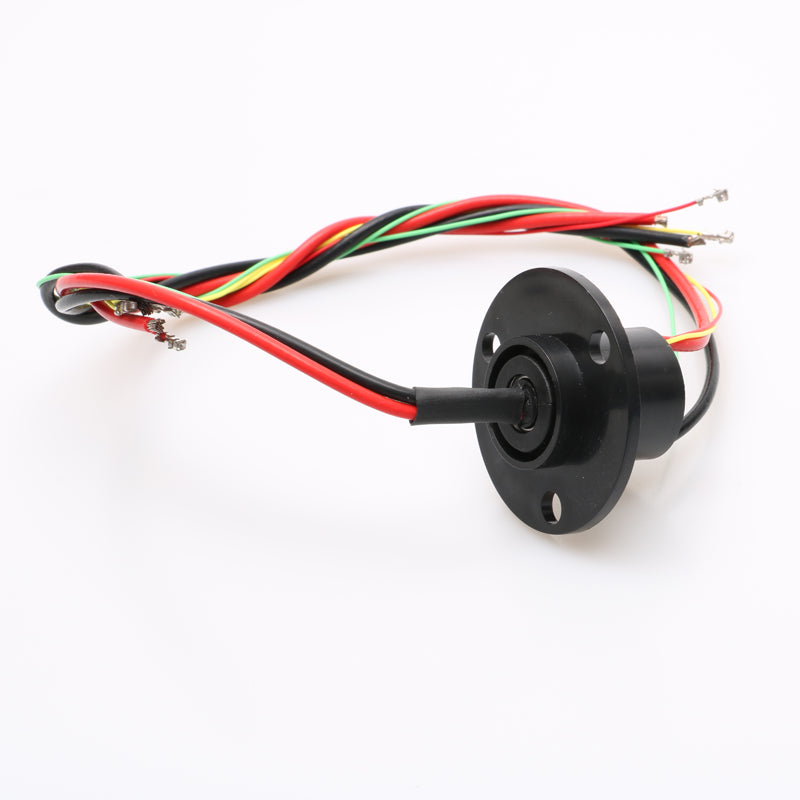

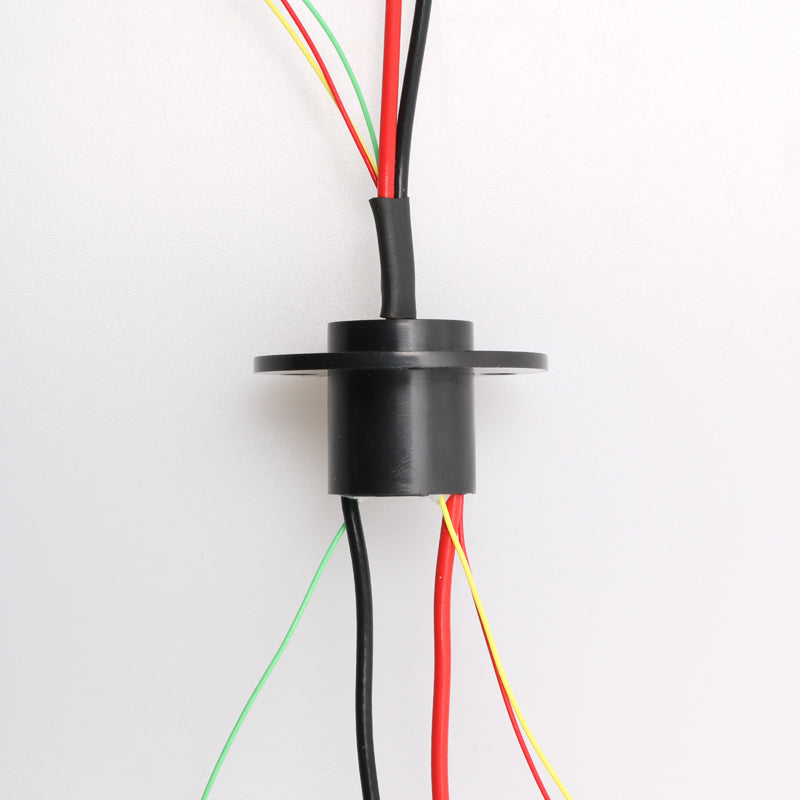

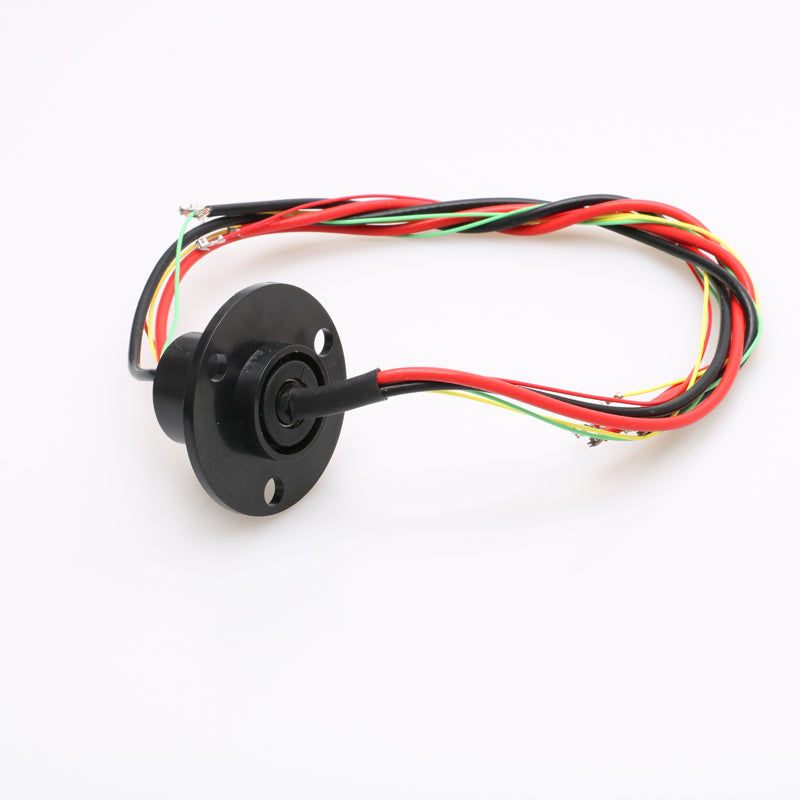

1pcs 2CH 15A/ 3CH 2A Mini Signal Rotating Electric Capsule Integrated Slip Ring
1pcs 2CH 15A/ 3CH 2A Mini Signal Rotating Electric Capsule Integrated Slip Ring
1pcs 2CH 15A/ 3CH 2A Mini Signal Rotating Electric Capsule Integrated Slip Ring
Specification:
-Rotating Speed: 300rpm
-Channel: CH/3CH
-Voltage: 0-240VAC/VvDC
-Current Rating: 2CH 15A / 3CH 2A
-Diameter: 22mm
-Working temperature: -20℃~ +80℃
-Contact Material: Gold

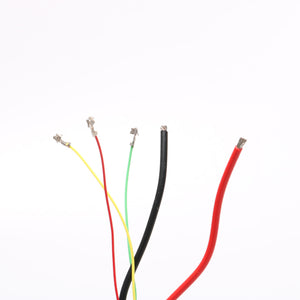

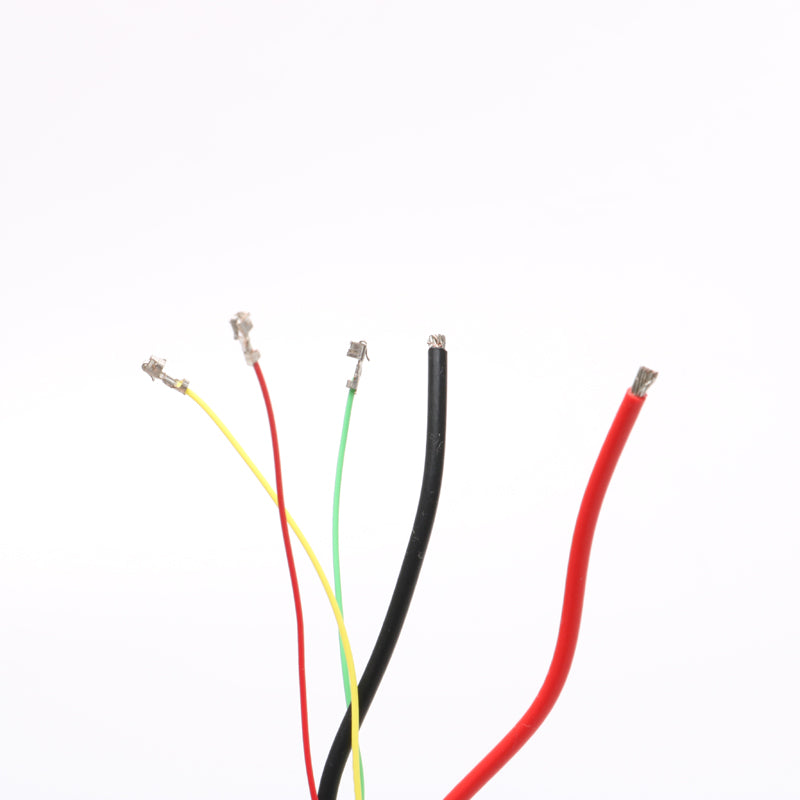

-Wire specification: AWG28
-Cable length: 250 mm
-Insulator Strength: 500V@50Hz,60 second
-Insulation Resistance: ≥500MQ/50oVDc
-Dynamic resistance fluctuation value: <0.01Q
-Shell Material: ABS Plastic
Features:
★ The high-quality plastic shell is hard, wear-resistant, pressure-resistant, high-temperature, corrosion-resistant, anti-aging, and prolong the service life.
★ One-piece ABS shaft core ensures dimensional stability and improves the electrical strength of the product. With wiring terminals, it is safe, firm and fast.
★ High temperature resistant Teflon wire, UL certified tinned, 300° high temperature resistant
★ Adopt AB glue to seal the product, waterproof and dustproof.
Partial application areas:
★ Rotating table
★ CCTV security monitoring equipment
★ RC Plant Agriculture UAV Drone
★ Stage lights
Package included:
1pc x Slip Ring
