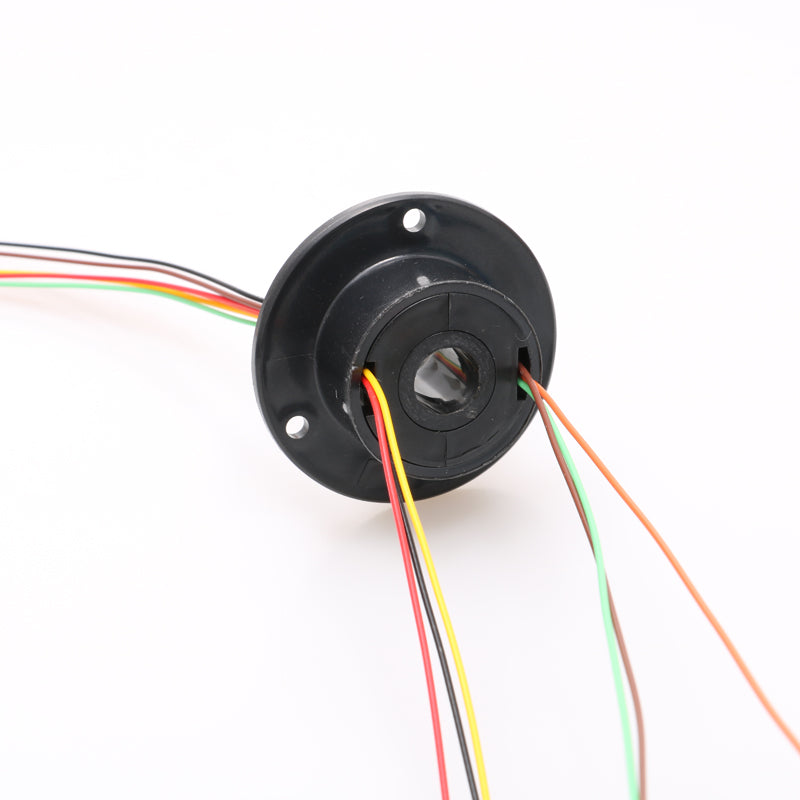

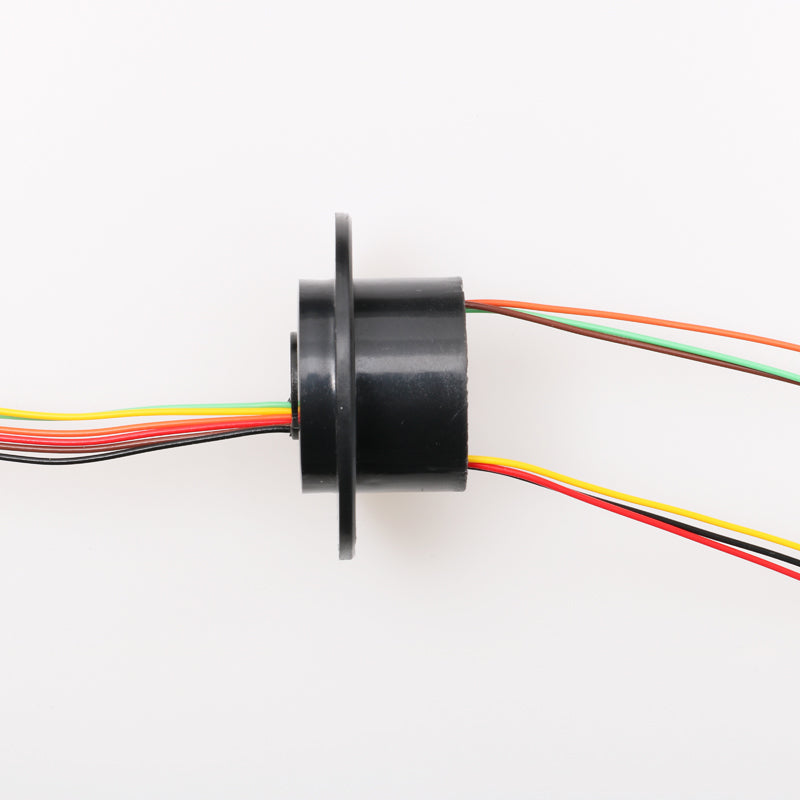

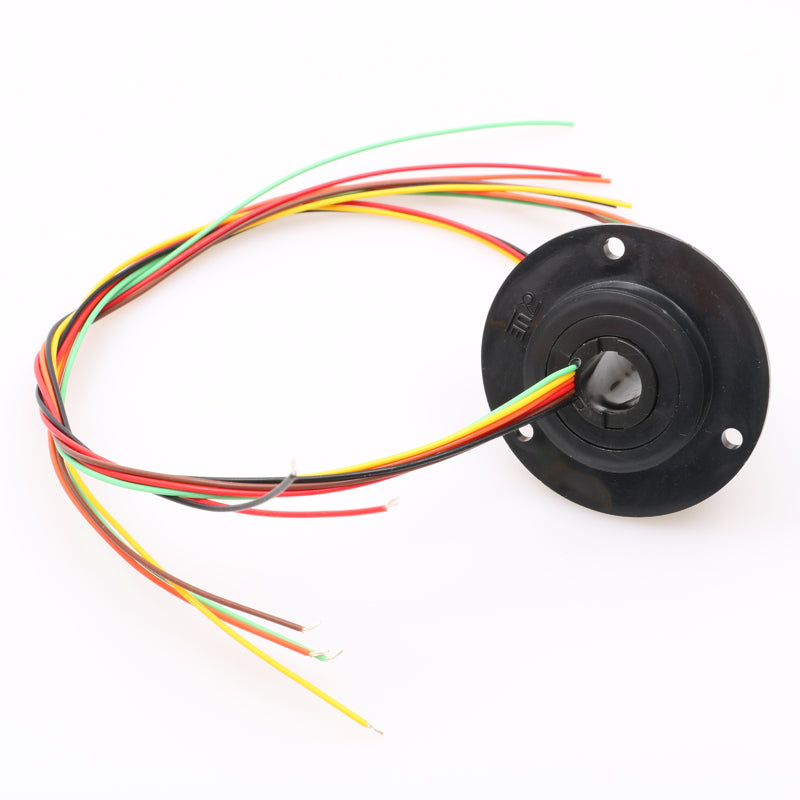

1pcs 2A 6CH Hole 10mm Extra Small Through Hole Conductive Collecting Slip Ring


Specification:
Model No.: ZHT010-06A
Number of channels: 6
Rated current: 2A/ch
Rated voltage: 240VAC/DC
Speed: 0-200rpm
Hole: 10mm
Contact material: precious metal
Housing material: engineering plastic
Dynamic resistance: minimum 1m Ohm
Electrical noise: <10m Ohm, 50mA, 5RPM
Wire Specifications: AWG26
Pressure resistance: 500VDC-50Hz, 10s
Wire length: standard 250 mm
Insulation strength: 500mOhm-500VDC, 10s
Protection level: IP54
Operating temperature: -20 Celsius ~ +60 Celsius
Working humidity: 10%-85% RH
Shockproof level: MIL-STD-810E
Certified: SGS CE UL


Typical Applications:
- CCTV pedestal
- Automatic arm
- Medical equipments
- Rotary index table
- Production line ,industry process equipments


Package includes:
1 x slip ring
