Specification:
- Item name: dual-way relay switch
- Input voltage: 12V-80V(80V is the limit voltage)
- Size: 63x56x25mm
- Singal wire length: about 20cm
Description:

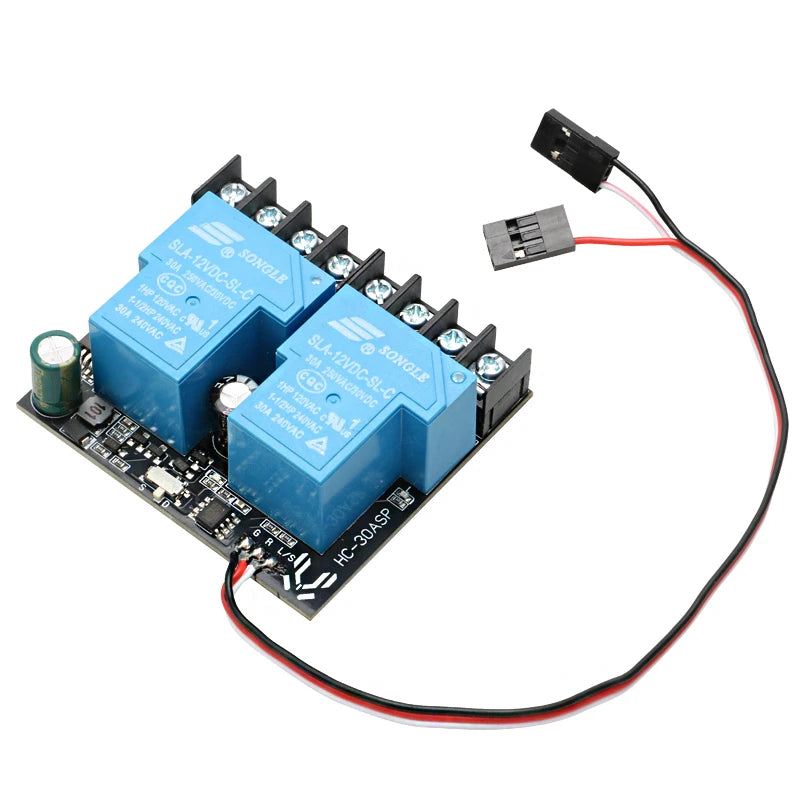

- HC-30ASP dual-way relay module, using 2pcs 30A relay
- Positive pulse width PMW with a control signal range of 0.8ms to 2.2ms, (1.3ms or) 1.7ms operating
Two working mode switching the switch:

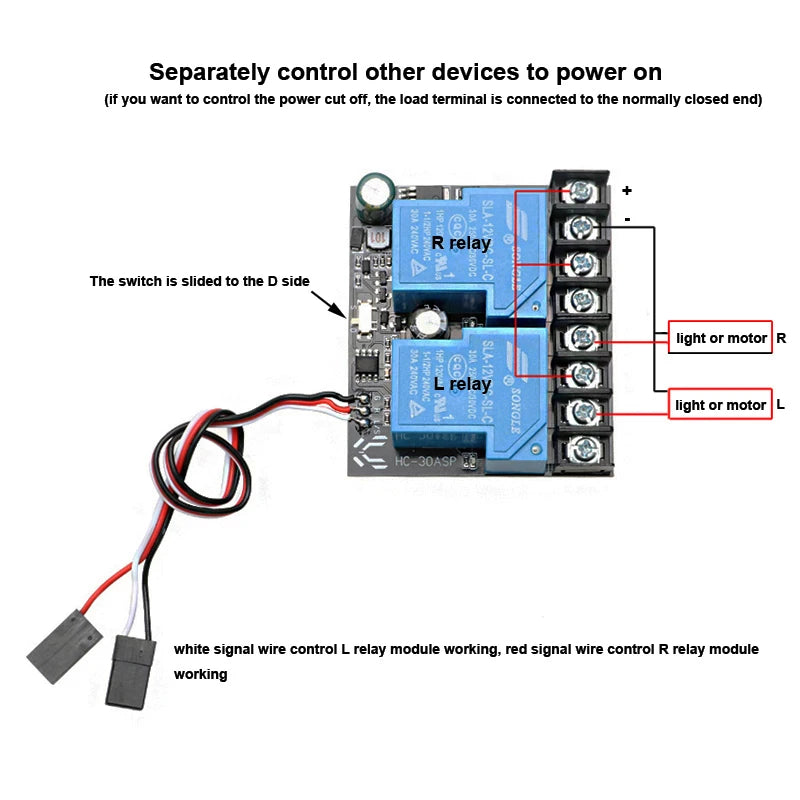

- D funtion is 2pcs signal wire control two relay working separately
- S funtion is white signal wire control L or R relay switching working

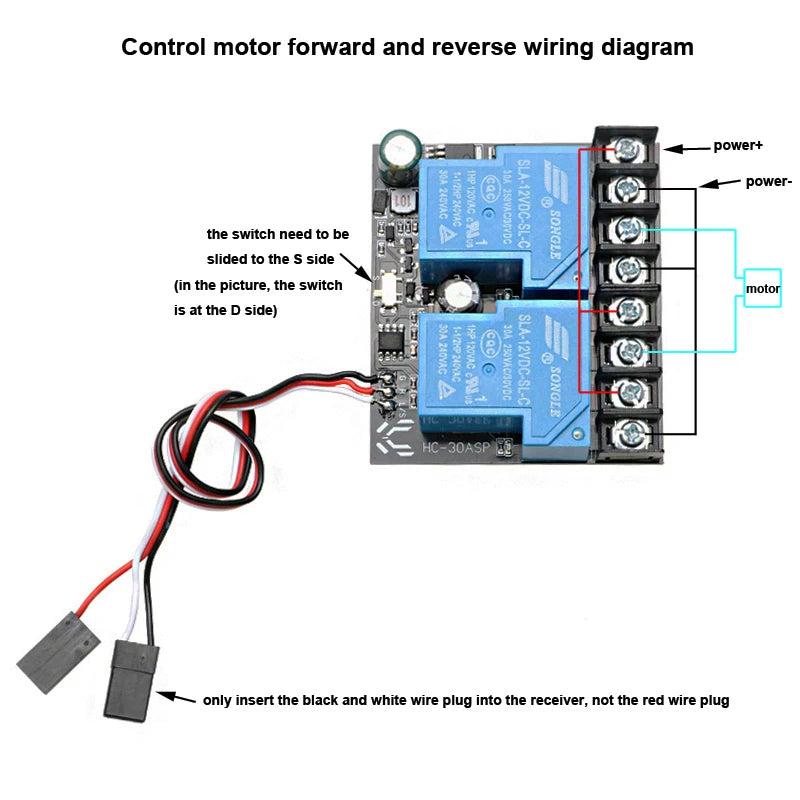

- S funtion can control motor forward reverse
Package incldue:
1pcs x relay switch
