Tips:
- for RC crawler tank model car or differential 4WD car or DIY boat modified, which should be used with 2 pieces ESC.
- The limit voltage is 60V. Do not try to use 60V, suggest to use within 53V. it is recommended to leave a margin of more than 5V.
- You can brake by hitting a little direction. If you hit the opposite direction directly, you can brake directly and output in the reverse direction.
- 24V batteries are only recommended for use with electric vehicle motors within 24V 700W and within 4000 rpm of the motor itself;
- 36V batteries are only recommended for use with electric vehicle motors within 36V 1000W and within 4000 rpm of the motor itself;
- 48V batteries are only recommended for use with electric vehicle motors within 48V 1300W and within 4000 rpm of the motor itself;
Specification:
- Input voltage: DC10V-60V (3S-13S lipo battery)
- UBEC: 5V 0.5A (Powering the receiver and servo)
- Max. current: 120A (the speed of forward and reverse is the same as the current)
- Weight: about 285g
- Signal line: line length is about 30CM

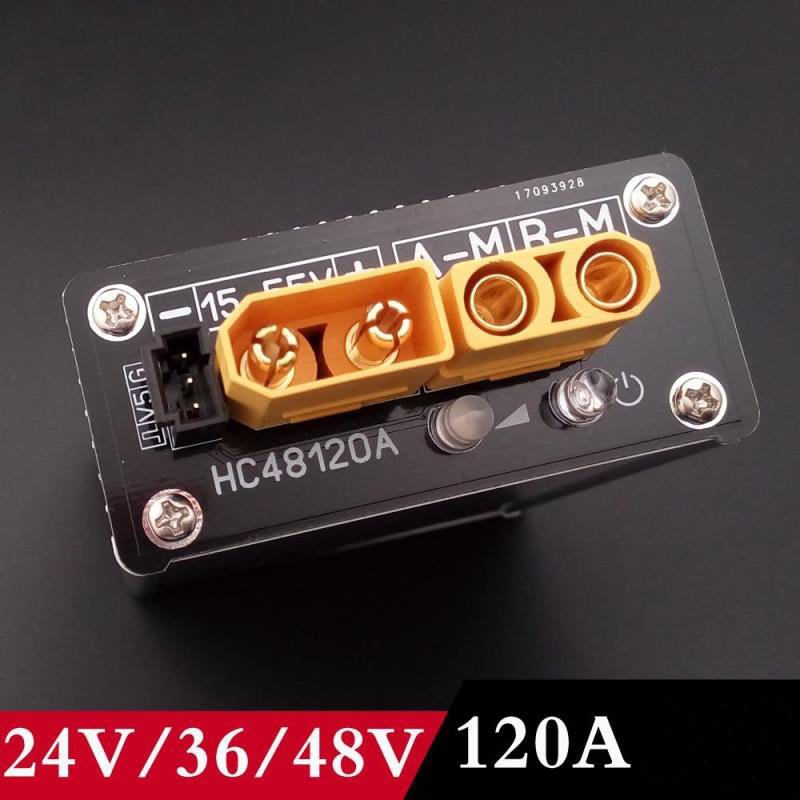

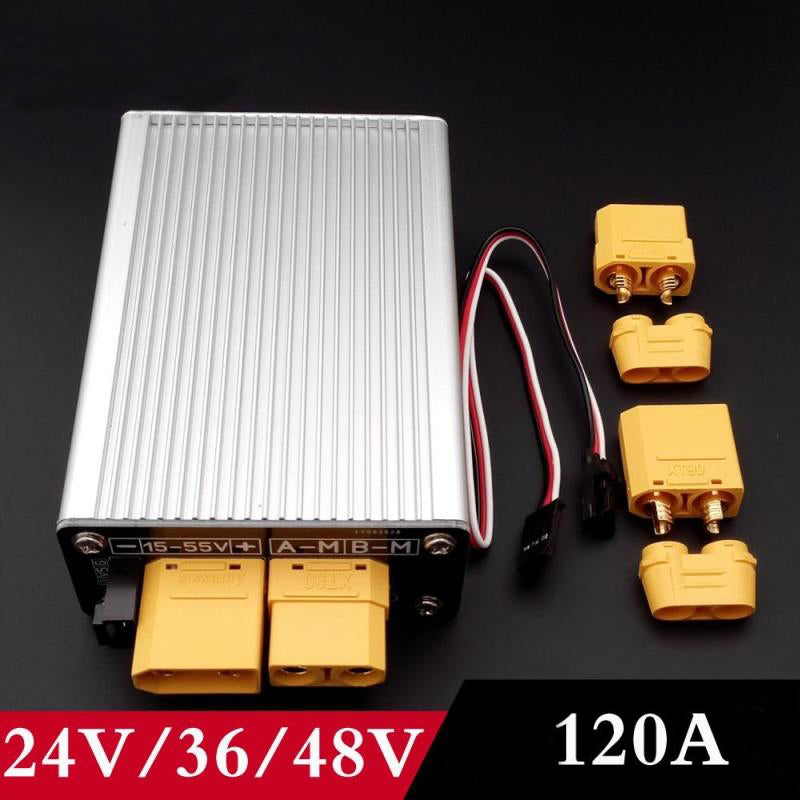

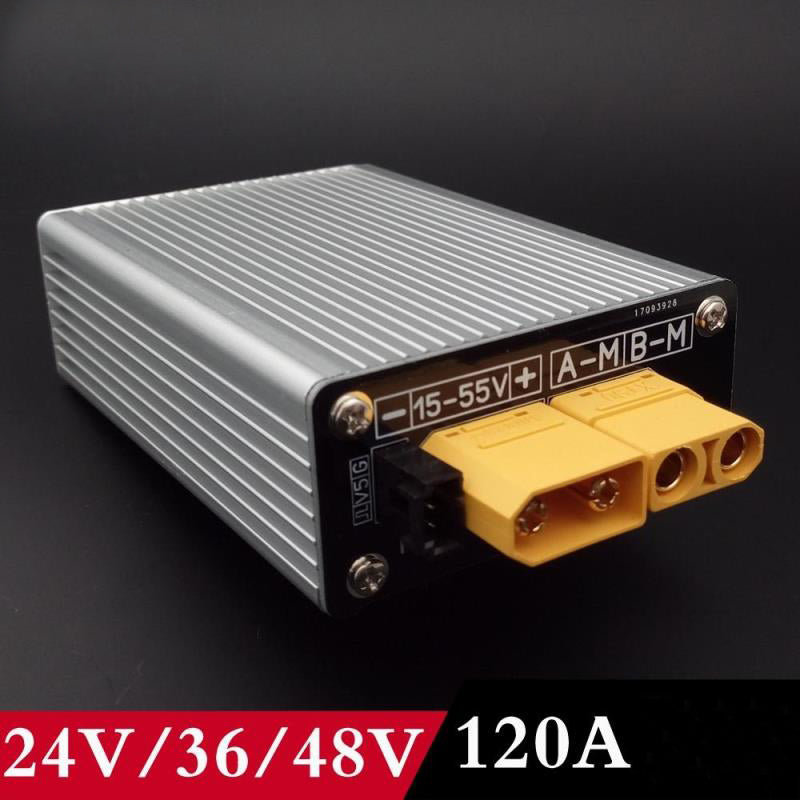

- Distribution connector: XT90 plug connector
- Size: 10.5x7x3.3CM
Indicator status:
After the ESC is energized, the indicator light flashes and flashes again. After the remote control stroke is set, the indicator light flashes.
The indicator flashes rapidly after the signal is lost.
Alignment method:
After the stroke of the remote controller reaches the maximum, the ESC power-on indicator lights up and then flashes, then inserts the signal into the corresponding channel of the receiver.
Wait a few seconds for the indicator to flash twice, then the remote control stroke is centered and the indicator flashes three times.
Package included:
1pcs x ESC
