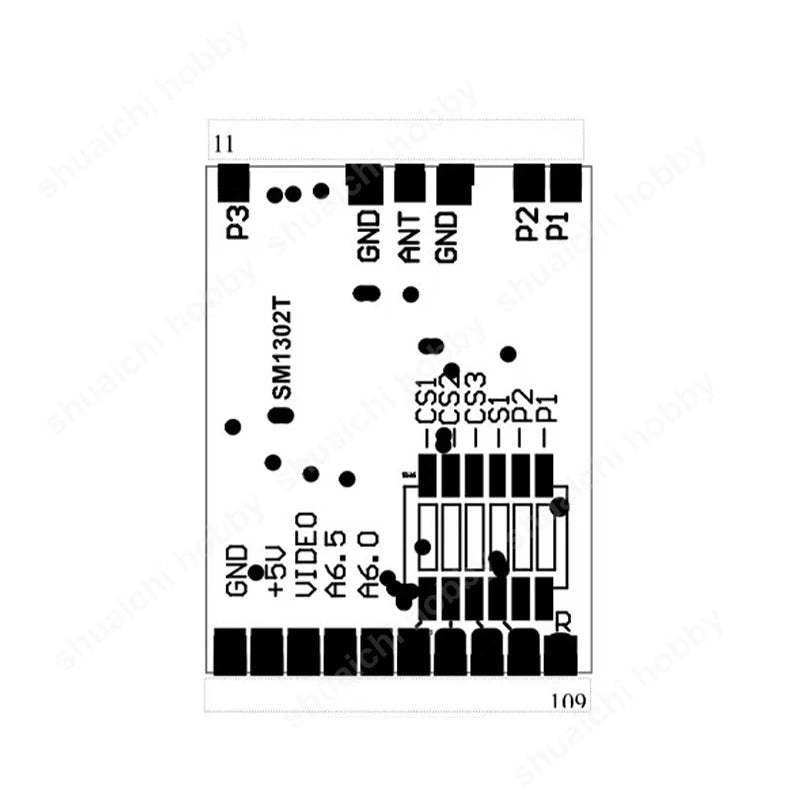

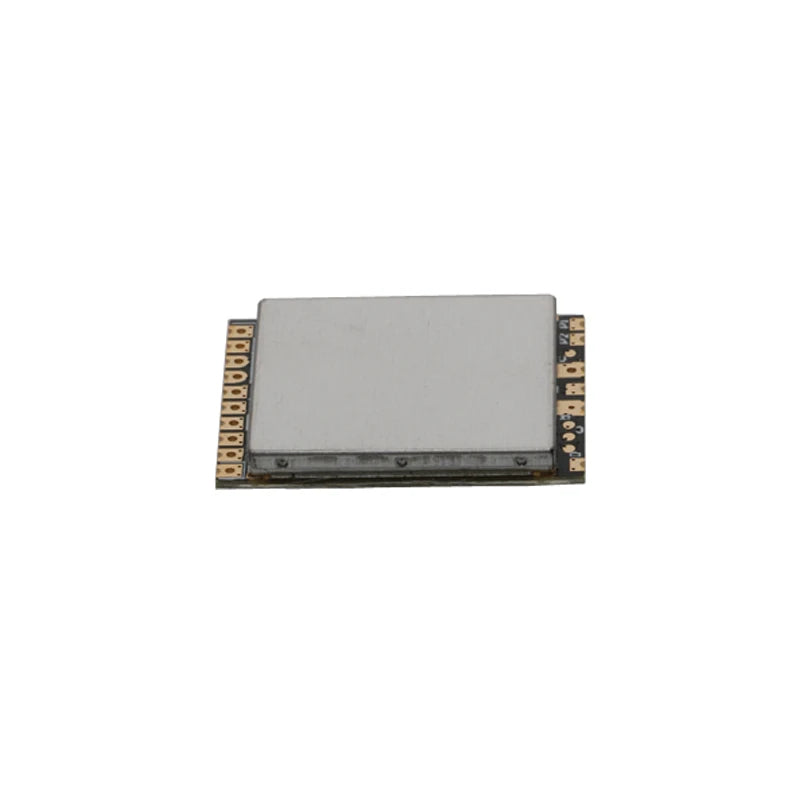

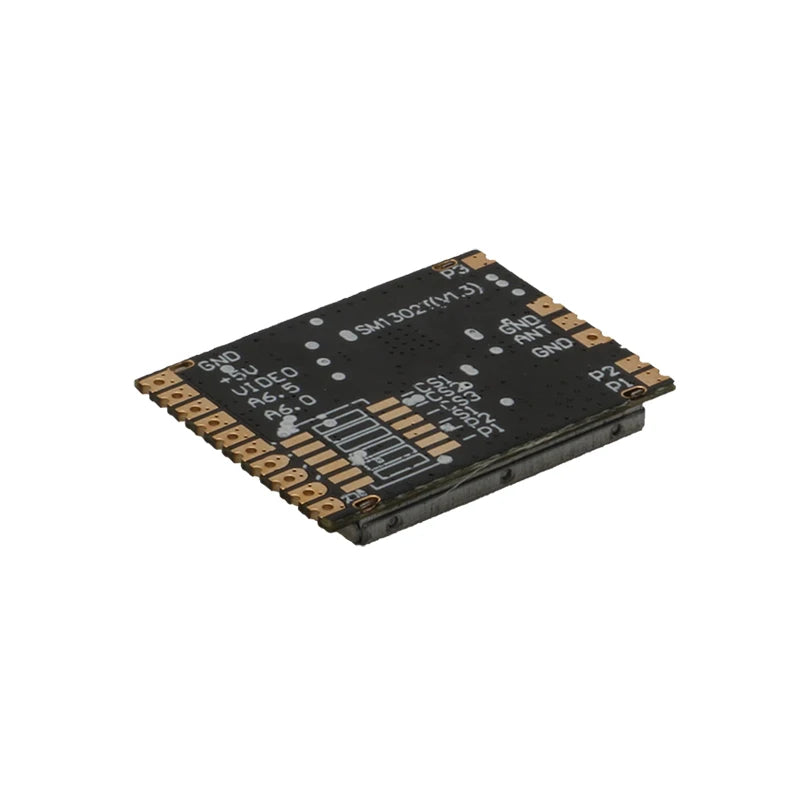

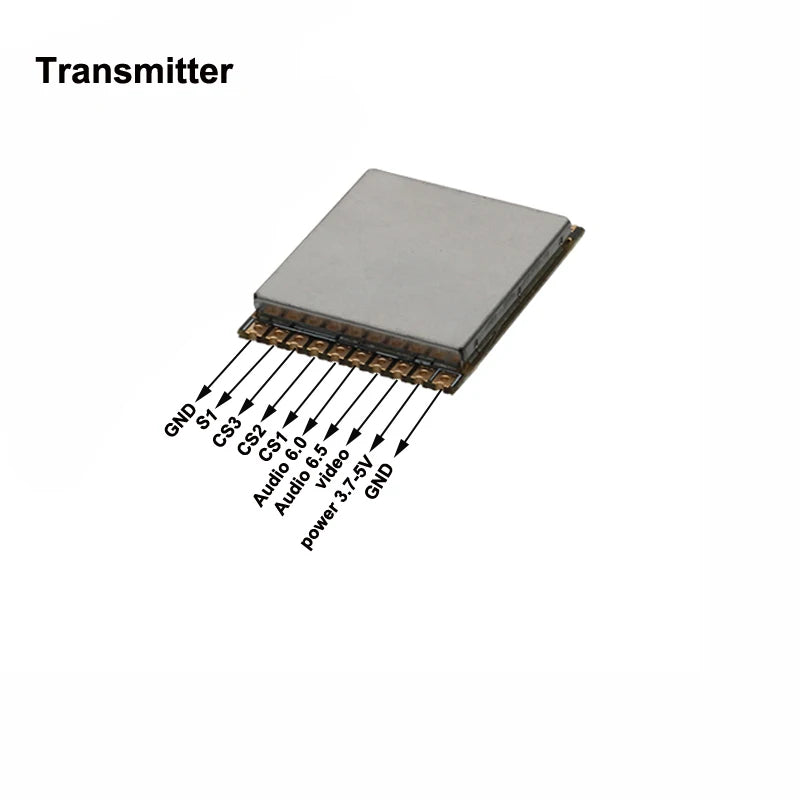

Transmitter: - Frequency: 1.2GHz - Power: 800mW - Working voltage: 3.3-5V (3.7V: 400mW at 5V: 800mW) - Size: 28x21x3mm - Can be powered by a single-cell lithium battery.

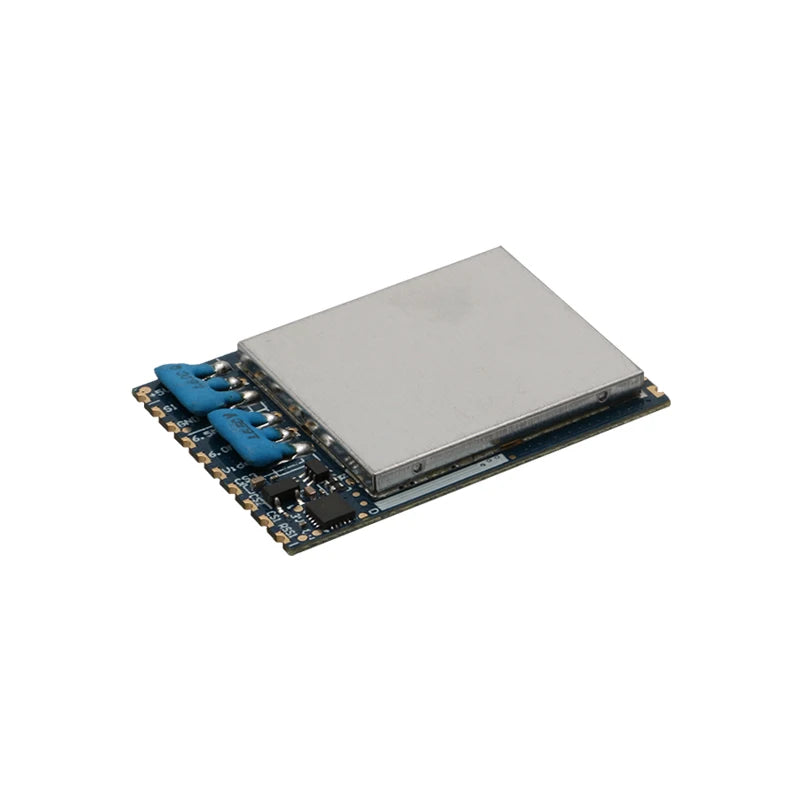

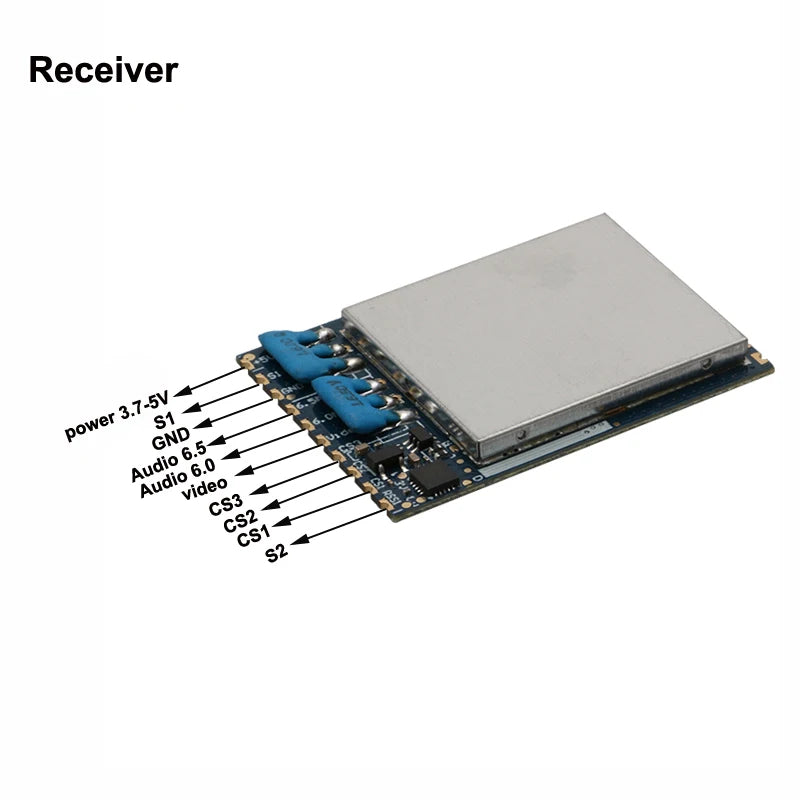

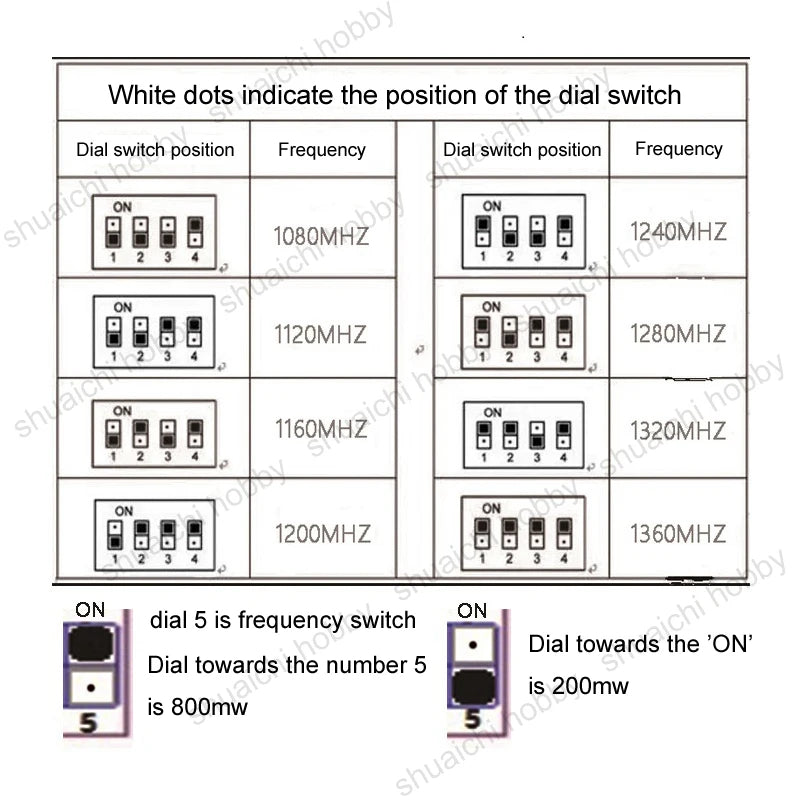

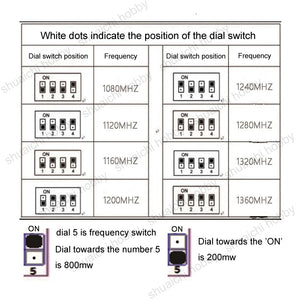

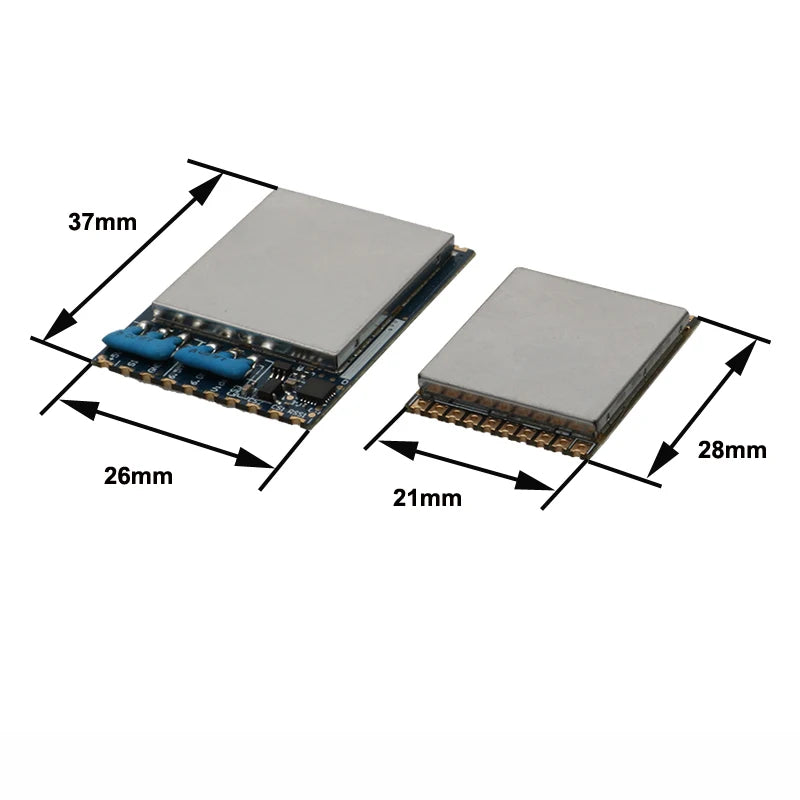

Receiver: - Operating frequency range: 1.0G-1.36GHz - Transmission frequency group: 1080MHz 1120MHz 1160MHz 1200MHz 1240MHz 1280MHz 1320MHz 1360MHz - Video signal format: PAL/NTSC - Audio input impedance: 1KΩ - Video input impedance: 75Ω - Video output: 1Vp_p. - Input voltage: DC3.7-5V (5V receiving sensitivity is better) - Working temperature: -20C°- +60C° - Size: 37mm x 26mm x 4mm(NOT including antenna) - Weight: about 6g
Note: 1.Due to manual measurement the size may have slightly deviation. 2.The module belongs to the scope of parts and cannot be wrongly connected. Once wrongly connected, it must be burned. 3.The high-power transmitter must be connected to the antenna before powering on. Otherwise, the power amplifier circuit will be burned and the transmitter will be damaged!

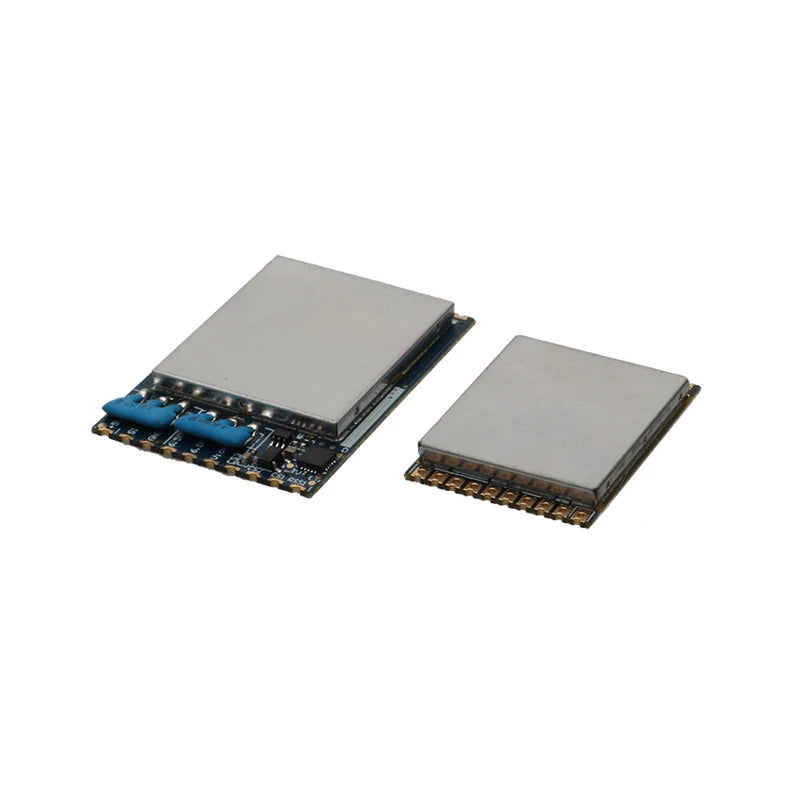

Package include: 1pcs x receiver or 1pcs x transmitter
