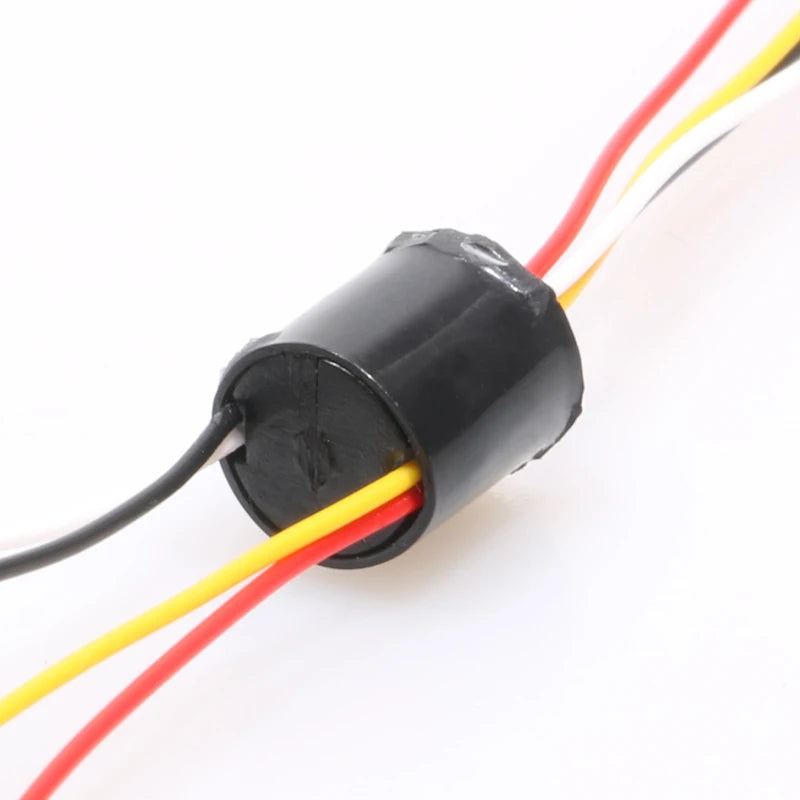

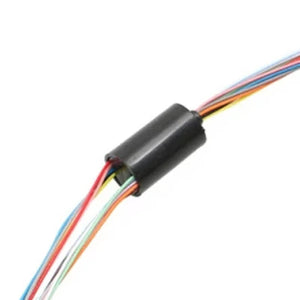

1PCS Outer Dia 8.5mm Micro Mini Conductive Slipring without Flange 4CH/8CH/12CH Rotary Collector Ring Current 1A Electric Connector Joint Slipring

Specification:
- Diameter: 8.5mm
- Channel number: 4CH/8CH/12CH
- Rated current: 1A/channel
- Speed: up to 200rpm
- Rated voltage: 220VAC/DC
- Operating temperature: -20 ℃ ~ +60 ℃
- Contact material: Gold/Gold
- Wire material: Silver-plated
- Wire length: standard 200mm
- Compressive strength: between the two channels≥500V 50Hz
- Insulation resistance: 5000MΩ/500VDC
- Dynamic resistance fluctuation value: minimum 10mΩ
- Shell material: Engineering plastics
- Working life: ≥5 million rpm(depending on the working environment and speed)

Note: size is manual measurement, there are exist errors

Package include:
1pcs x Slip ring
