Specification:

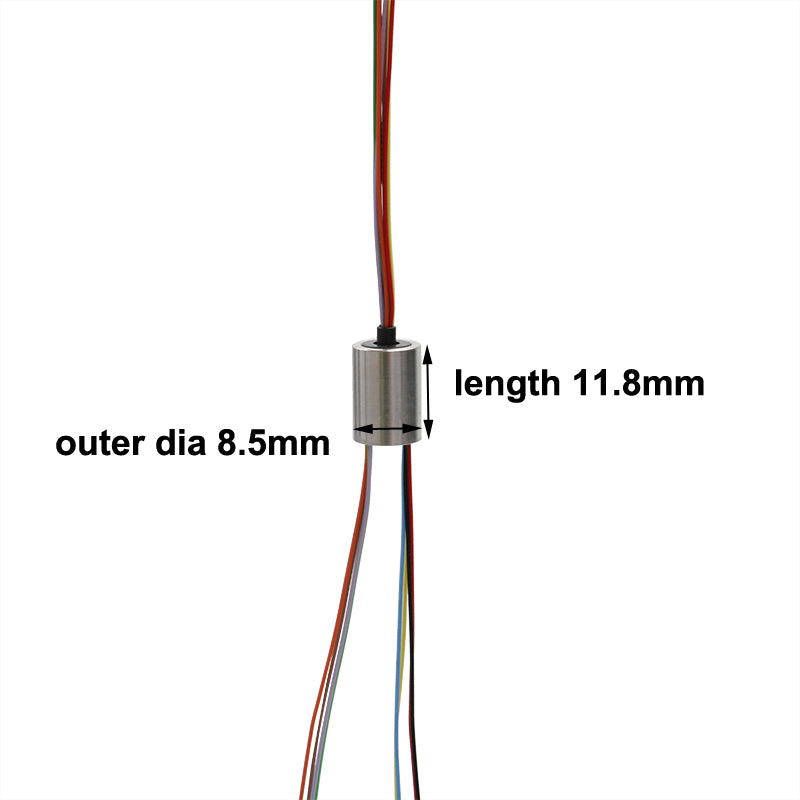

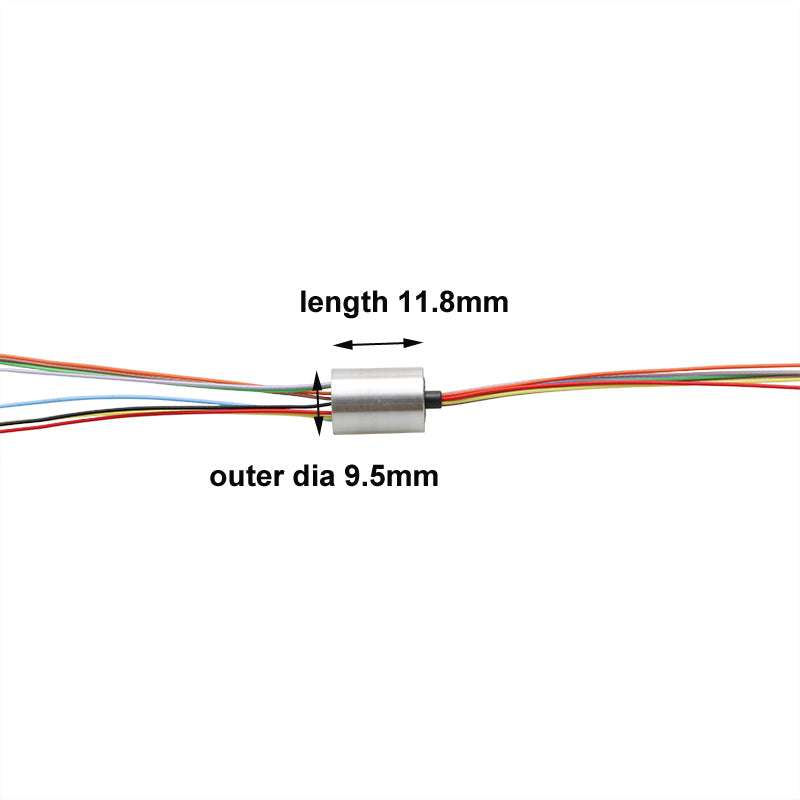

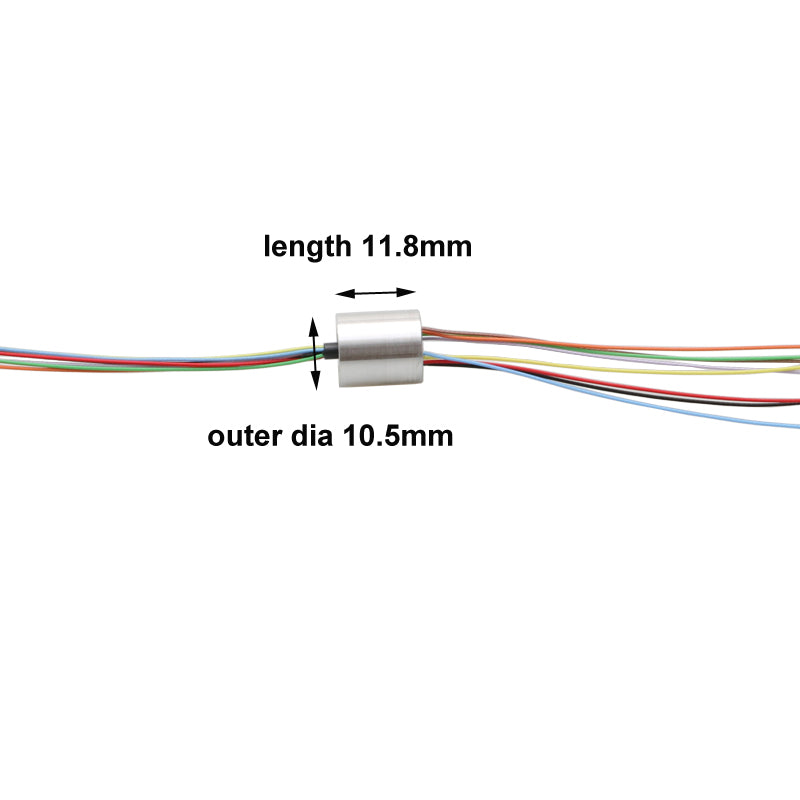

- Outer diameter: 8.5mm/9.5mm/10.5mm
- Length: 11.8mm
- Channels: 8CH
- Rated current: 2A
- Rated Voltage: 0~240VAC/DC
- Working Temp.: -20℃~80℃
- Contact Material: Precious metal
- Wire Specification: AWG28
- Wire Length: standard 250mm
- Protection level: IP51
- Insulator strength: 500VAC@50Hz, 60second
- Insulation Resistance: ≥500MQ/500VDC
- Dynamic resistance fluctuation value:＜0.01Q
Note: silver and black color will be send at random
Package include:
1pcs x slipring
we offer OEM for orders of large quantity. Please feel free to contact us for more info
