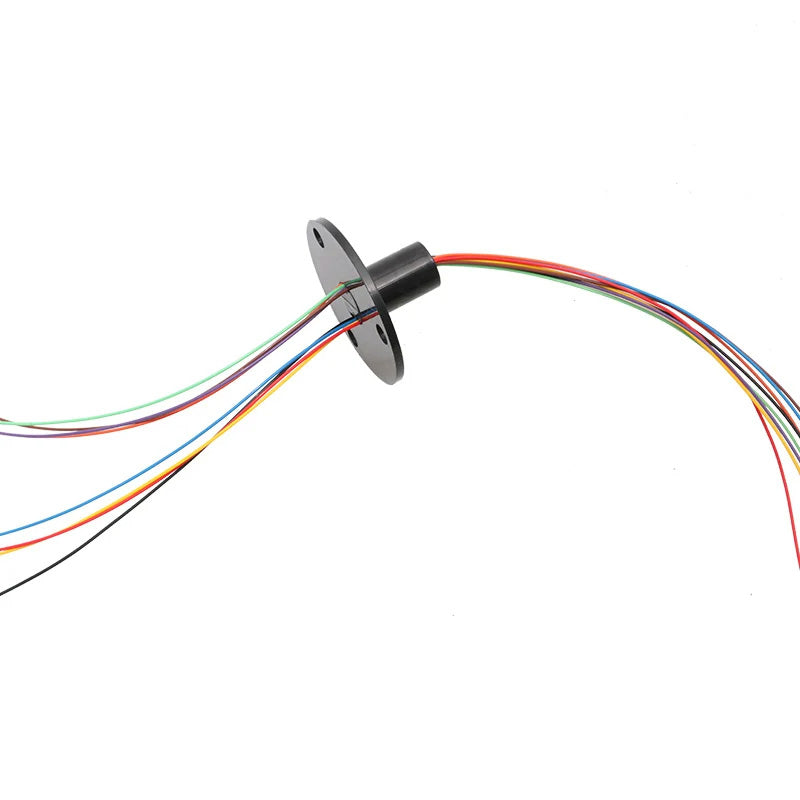

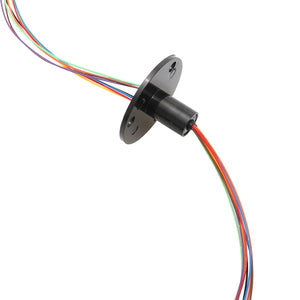

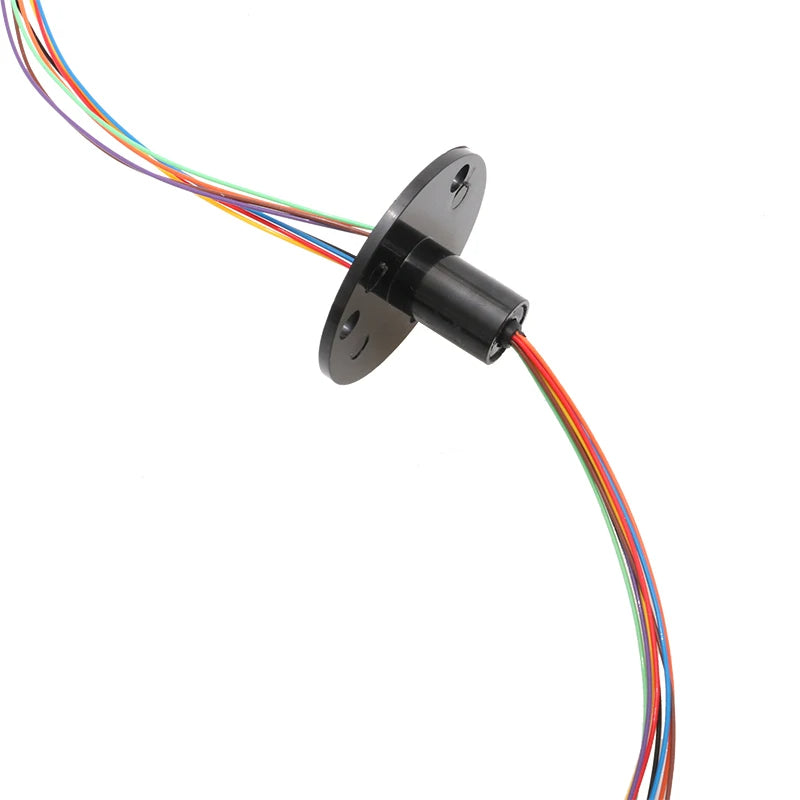

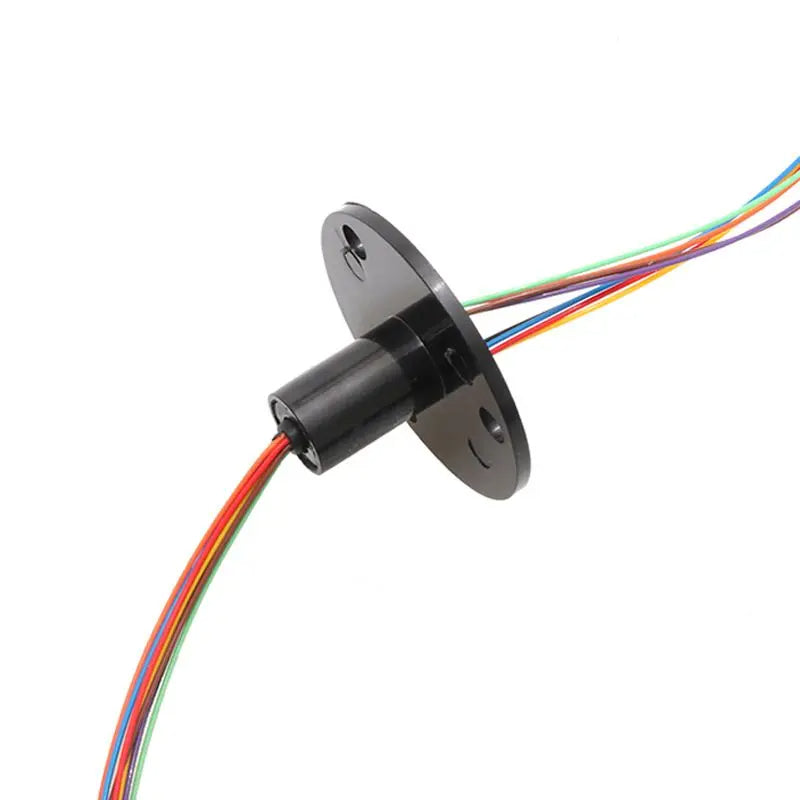

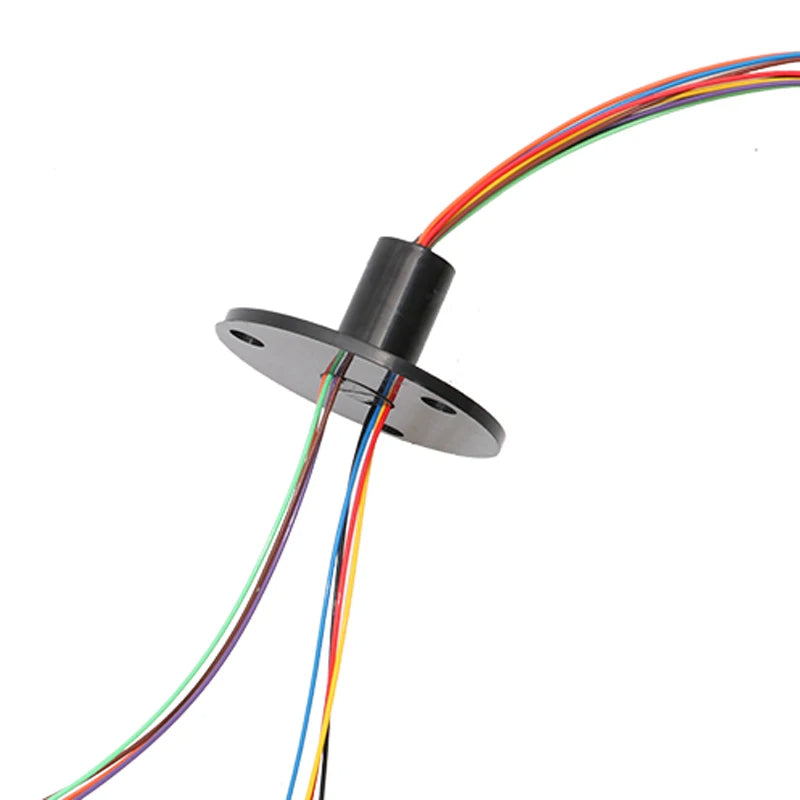

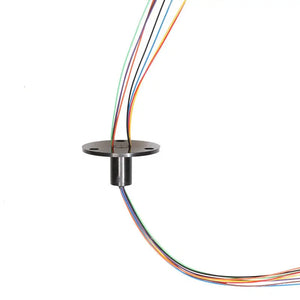

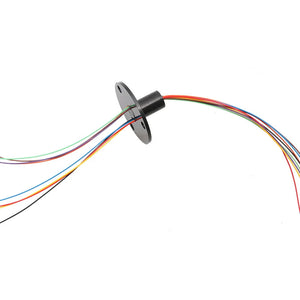

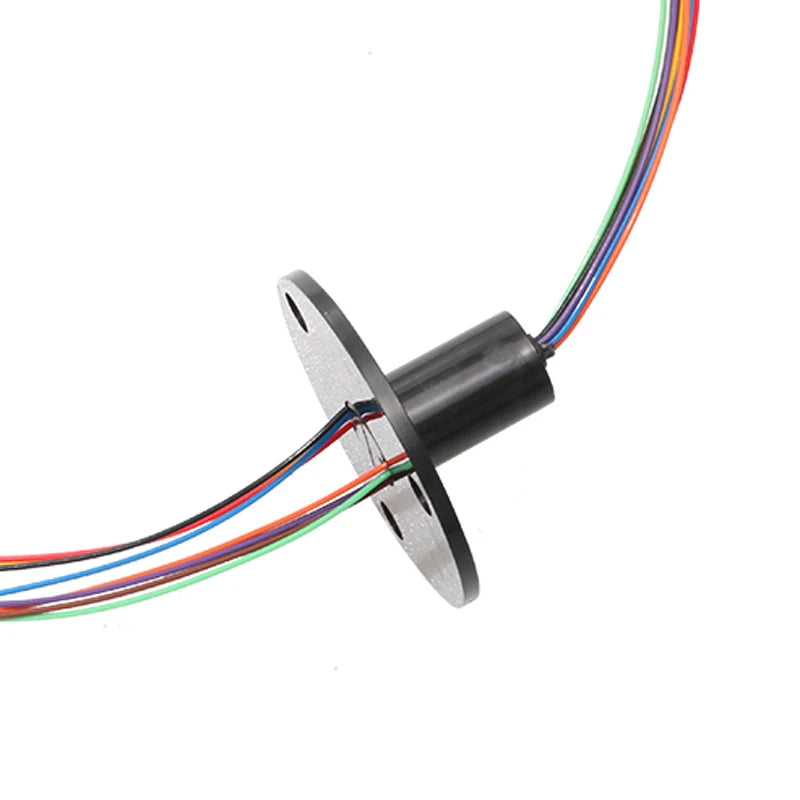

1PCS Outer Dia 12.5mm Conductive Electric Brush Slip Ring 8CH 1.5A Collector Ring 360 Degree Rotation Ring Joint Connector

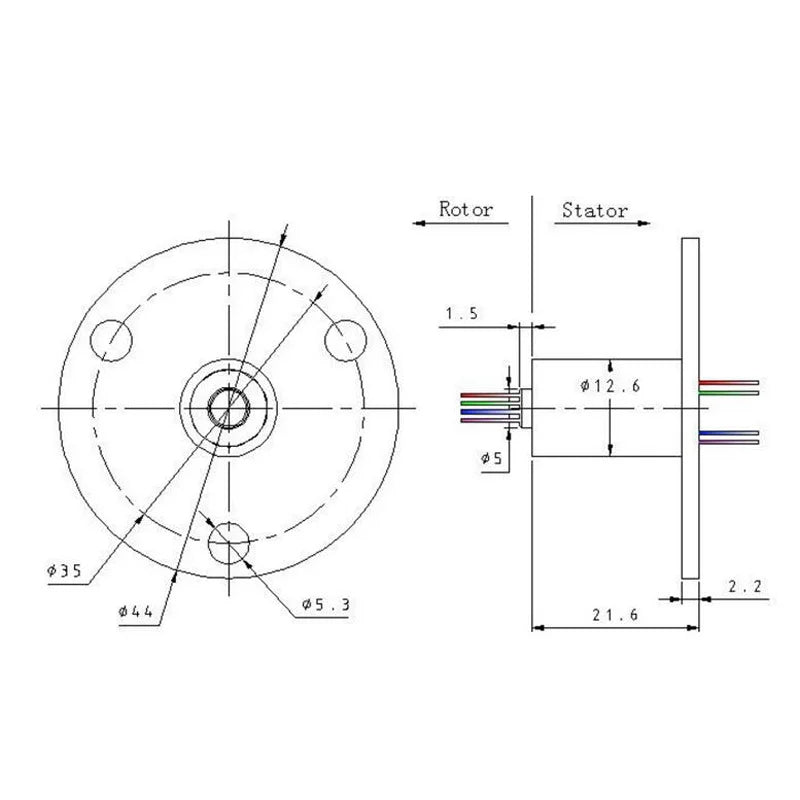

Mechanical specification:
- Outer diameter: 12.5mm
- Channel: 8CH
- Length: 21.6mm
- Rotating speed: 250rpm
- Contact material: metal
- Working life: >=5 millions revolutions(depends on work speed,environment)
- Relative Humidity: 60%RH
- Working temperature:-40C~+80C
- Torque: 0.01N.M

Electrical Specifications:
- Wire specification: AWG#28 Teflon Wire UL
- Cable length: 250mm
- Rated voltage: 220V
- Current Rating: 1.5A/Channel
- Insulation resistance:500mOhm /500VDC

Suit for: Gimbal/Electrical testing equipment/Turntable/Medical equipment/CCTV monitoring equipment/Robot/Small wind turbines/Radar antenna etc

Package include:
1pcs x slip ring
